LZE751GKA724A3 - Exmark 72" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX (SN: 400000000 - 402082299) (2017) Caster Wheel Assembly Parts Diagram

72" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX

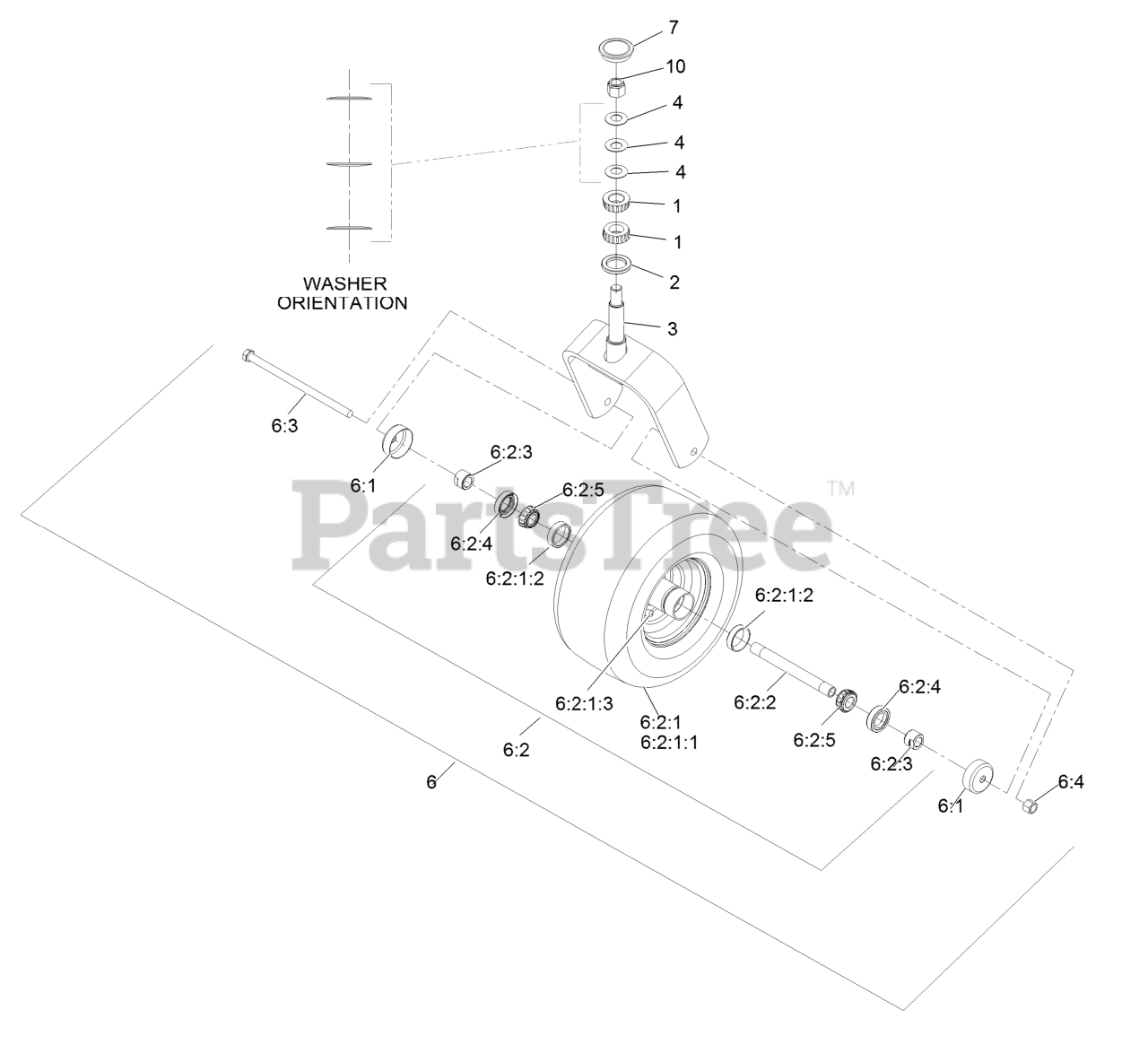

Caster Wheel Assembly Parts Diagram

  • Title

1

Exmark 1-543509

Cone-Bearing Tapered Roller

$13.99

$

In Stock, Qty 20+

0

2

Exmark 116-5647

SEAL-GREASE

$5.49

$

In Stock, Qty 20+

0

3

Exmark 116-6707-01

116-8888
(Superseded to 116-8888)

$185.99

$

In Stock, Qty 7

0

4

Exmark 1-633508

WASHER-BELLVILLE

$3.49

$

In Stock, Qty 20+

0

6

Exmark 117-0361

CASTER WHEEL ASM

$232.99

$

In Stock, Qty 7

0

6:1

Exmark 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 20+

0

6:2

Wheel ASM

Note: Not serviced separately

$

$

Not available

6:2:1

Wheel And Tire ASM

Note: Not serviced separately

$

$

Not available

6:2:1:1

Exmark 1-523009

TIRE

$113.99

$

Usually ships in 3-6 days

0

6:2:1:2

Exmark 1-633584

BEARING-CUP

$9.49

$

In Stock, Qty 12

0

6:2:1:3

Exmark 5108

VALVE

$6.99

$

In Stock, Qty 16

0

6:2:2

Exmark 126-5361

AXLE CASTER ASM

$19.99

$

In Stock, only 2 left!

0

6:2:3

Exmark 103-3051

SPACER-NUT

$9.49

$

In Stock, Qty 12

0

6:2:4

Exmark 103-0063

SEAL-CASTER

$8.99

$

In Stock, Qty 6

0

6:2:5

Exmark 1-633585

BEARING-CONE, TAPERED ROLLER

$21.99

$

In Stock, Qty 20+

0

6:3

Exmark 325-39

SCREW-HH

$18.99

$

In Stock, Qty 18

0

6:4

Exmark 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

7

Exmark 103-4882

CAP-GREASE

$7.99

$

In Stock, Qty 20+

0

10

Exmark 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 10

0
