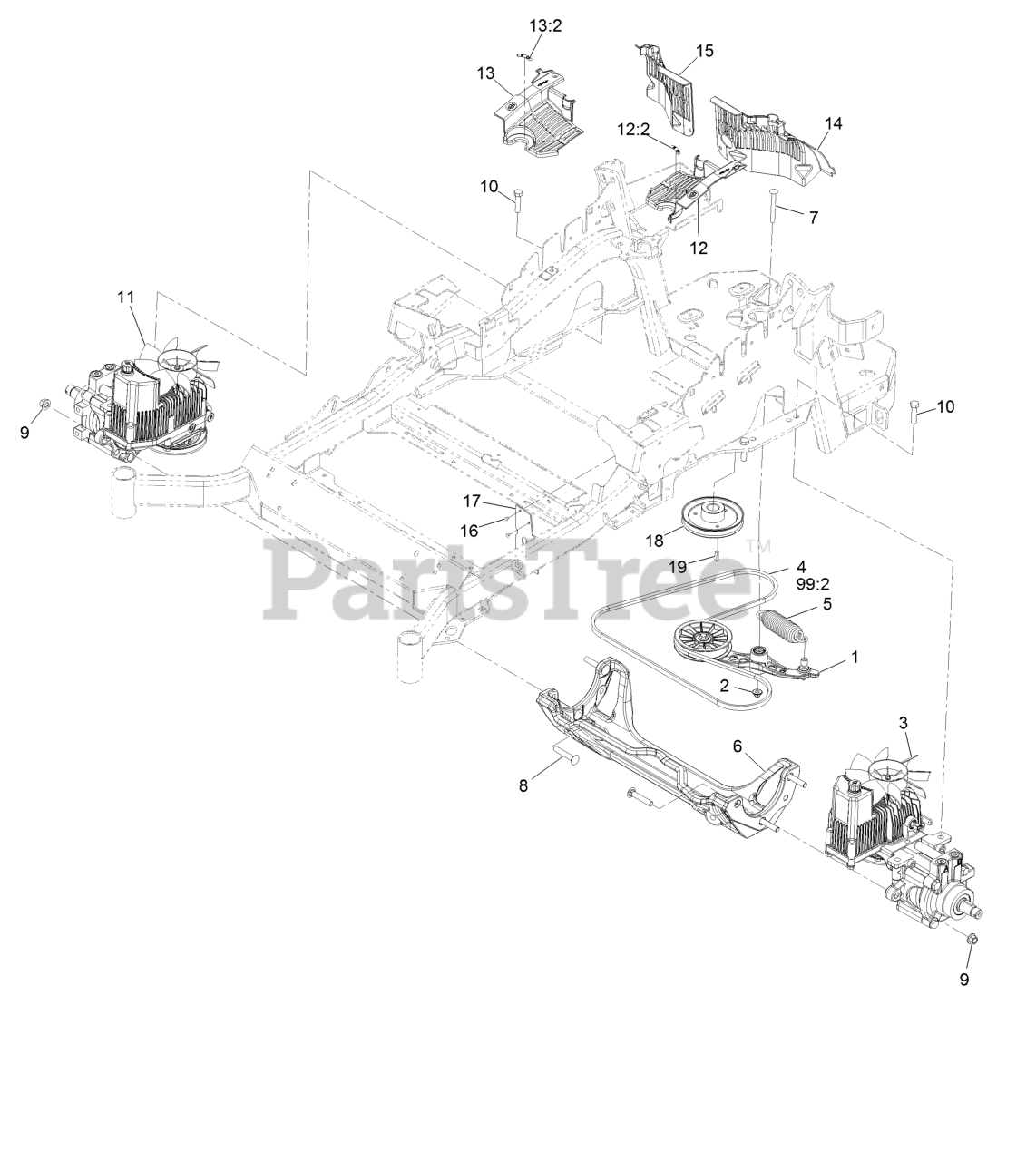

LZE751GKA724A1 - Exmark 72" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX (SN: 402082300 - 404314158) (2018) Hydraulic Assembly Parts Diagram

72" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX

Hydraulic Assembly Parts Diagram

  • Title

1

Exmark 116-1255

Pump Idler ASM

$230.99

$

In Stock, Qty 11

0

2

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

3

Exmark 126-1323

LH Hydro ASM (12Cc W/Shock)
(Superseded to 135-7903)

$3517.99

$

Usually ships in 3-6 days

0

4

Exmark 109-3388

Belt
(Superseded to 109-3388-SL)

$45.99

$

Usually ships in 3-6 days

0

5

Exmark 116-6317

Spring-Extension

$29.99

$

In Stock, Qty 20+

0

6

Exmark 116-7558

Cradle-Hydro

$227.99

$

In Stock, only 1 left!

0

7

Exmark 116-1502

Bolt-Carriage Shoulder 3/8-16 X 3 1/2

$7.99

$

In Stock, only 2 left!

0

8

Exmark 126-0095

Screw-CARR

$2.99

$

In Stock, only 3 left!

0

9

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

10

Exmark 325-8

Screw-HH 1/2-13 X 1 1/4

$5.49

$

In Stock, Qty 16

0

11

Exmark 126-1324

RH Hydro ASM (12Cc W/ Shock)
(Superseded to 135-7904)

$3517.99

$

Usually ships in 3-6 days

0

12

Exmark 116-0170

LH Hydro Guard ASM

$90.99

$

In Stock, only 3 left!

0

12:2

Exmark 116-8726

Decal-Oil, Hydro

$5.49

$

In Stock, Qty 20+

0

13

Exmark 116-0171

RH Hydro Guard ASM

$90.99

$

Usually ships in 3-6 days

0

13:2

Exmark 116-8726

Decal-Oil, Hydro

$5.49

$

In Stock, Qty 20+

0

14

Exmark 109-9057

Guard-Hydro, Rear (LH)

$25.99

$

In Stock, only 2 left!

0

15

Exmark 109-9058

Guard-Hydro, Rear (RH)

$26.99

$

In Stock, only 2 left!

0

16

Exmark 1-803035

Rivet 3/16 X 1/4

$1.49

$

In Stock, Qty 10

0

17

Exmark 116-2362

Deflector-Air Flow

$6.99

$

Usually ships in 3-6 days

0

18

Exmark 109-9905

Sheave
(Superseded to 142-9445)

$54.99

$

In Stock, Qty 8

0

19

Exmark 1-807259

Key-Machine 1/4 X 1/4 X 1

$2.49

$

In Stock, Qty 19

0

99

Exmark 109-9828

Bottle-Oil, 32Oz Hydraulic

$18.99

$

In Stock, Qty 20+

0

99

Exmark 116-0164

Filter-Hydro

$72.99

$

In Stock, Qty 20+

0

99

Exmark 116-1218

Bottle,Oil 1 Gallon Hydraulic

$71.99

$

In Stock, Qty 20+

0

99

Exmark 116-3270

Kit, Hydro Service
(Superseded to 126-8103)

$254.99

$

In Stock, Qty 8

0

99:1

Exmark 109-9828

Bottle-Oil, 32Oz Hydraulic

$18.99

$

In Stock, Qty 20+

0

99:2

Exmark 109-3388

Belt
(Superseded to 109-3388-SL)

$45.99

$

Usually ships in 3-6 days

0

99:3

Exmark 116-0164

Filter-Hydro

$72.99

$

In Stock, Qty 20+

0
