LZE751GKA60RA1 - Exmark 60" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX (SN: 400000000 - 402082299) (2017) Deck Idler Assembly No. 126-1720 Parts Diagram

60" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX

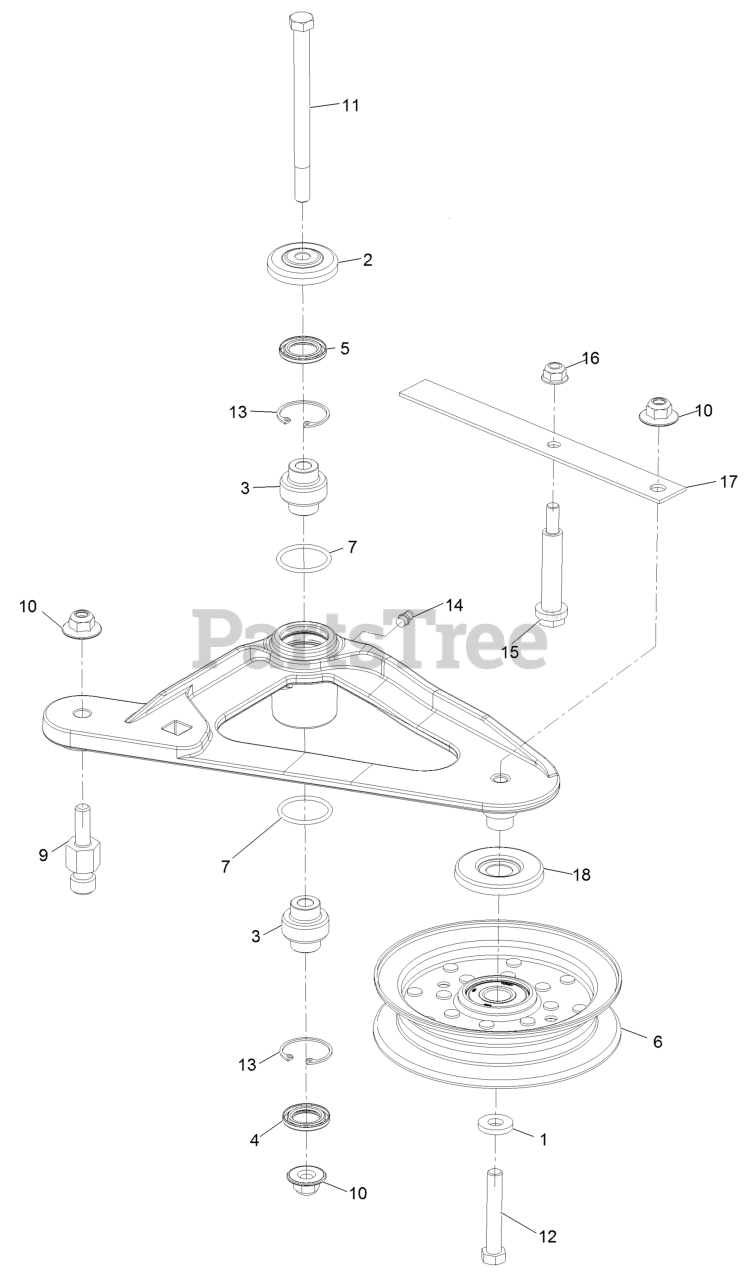

Deck Idler Assembly No. 126-1720 Parts Diagram

  • Title

1

Exmark 43-0940

Spacer

$5.49

$

In Stock, Qty 20+

0

2

Exmark 103-2916

Guard-Top

$2.99

$

In Stock, Qty 20+

0

3

Exmark 103-3504

Bearing-Spherical

$25.99

$

In Stock, Qty 20+

0

4

Exmark 103-3505

Seal-Double Lip

$5.49

$

In Stock, Qty 20+

0

5

Exmark 103-3506

Seal-Single Lip

$5.49

$

In Stock, Qty 20+

0

6

Exmark 126-9196

Idler-Pulley, Flat 5.00X0.87

$60.99

$

In Stock, Qty 20+

0

7

Exmark 106-7159

O-Ring

$1.49

$

In Stock, Qty 20+

0

9

Exmark 126-0423

Pin-Spring, Anchor

$7.99

$

In Stock, only 3 left!

0

10

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

11

Exmark 109-7409

Screw-Shoulder 3/8-16 X 5

$5.49

$

In Stock, Qty 12

0

12

Exmark 104-3396

Screw-HH

$2.49

$

In Stock, only 2 left!

0

13

Exmark 32120-10

Ring-Retaining

$1.49

$

In Stock, Qty 20+

0

14

Exmark 302-19

Zerk-1/4-28 Str

$2.49

$

In Stock, Qty 20+

0

15

Exmark 88-4590

Screw-Shoulder 5/16-18 X 1 29/32

$11.99

$

In Stock, only 1 left!

0

16

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

17

Exmark 126-1704

Spring-Belt Guide Leaf

$21.99

$

In Stock, only 3 left!

0

18

Exmark 126-9195

Guard-Dust Shield

$2.99

$

In Stock, only 3 left!

0
