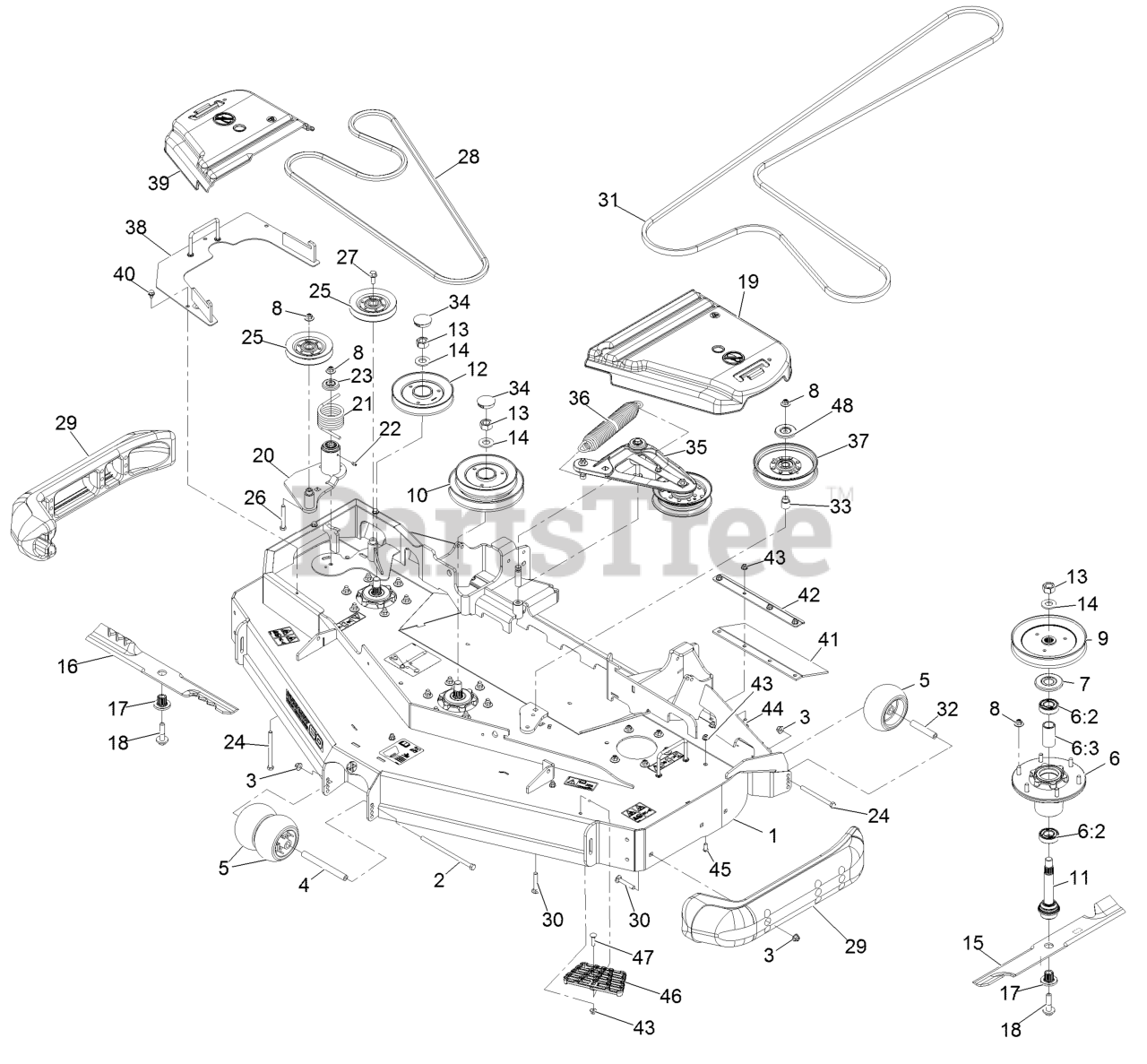

LZE751GKA60RA1 - Exmark 60" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX (SN: 400000000 - 402082299) (2017) Deck Assembly Parts Diagram

60" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX

Deck Assembly Parts Diagram

  • Title

1

Exmark 116-9839

Deck-Rd60 Nlz, W/Decals

$3296.99

$

Usually ships in 3-6 days

0

2

Exmark 108-5388

Screw-HH 3/8-16 X 7 3/8

$15.99

$

Usually ships in 3-6 days

0

3

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

4

Exmark 98-5967

Spacer-Wheel

$15.99

$

Usually ships in 3-6 days

0

5

Exmark 1-603299

Roller-Scalp, Anti

$23.99

$

In Stock, Qty 10

0

6

Exmark 116-3344

ASM-Cutter Hsg With Bearings

$158.99

$

In Stock, Qty 20+

0

6:2

Exmark 116-0720

Bearing-Ball

$22.99

$

In Stock, Qty 10

0

6:3

Exmark 116-3312

Spacer-Bearing

$9.49

$

In Stock, Qty 5

0

7

Exmark 116-1286

Guard,Bearing Top .989

$5.49

$

In Stock, Qty 9

0

8

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

9

Exmark 116-0676

Sheave,Blade Drive 7.25

$68.99

$

In Stock, Qty 20+

0

10

Exmark 126-0352

Sheave, Double 60Rd

$142.99

$

In Stock, only 3 left!

0

11

Exmark 116-3341

ASM-Spindle And Seal

$89.99

$

In Stock, Qty 9

0

12

Exmark 126-0354

Sheave-Rd Rev Drive Series 4

$92.99

$

In Stock, only 3 left!

0

13

Exmark 116-7306

Nut-Hex

$2.99

$

In Stock, Qty 9

0

14

Exmark 103-2802

Washer-Spring Disc 3/4

$5.49

$

In Stock, Qty 14

0

15

Exmark 103-6388

Blade, Low Lift
(Superseded to 103-6388-S)

$37.99

$

In Stock, Qty 20+

0

15

Exmark 103-6403

Blade, Notched
(Superseded to 103-6403-S)

$31.99

$

In Stock, Qty 20+

0

15

Exmark 116-5174

Blade-Extreme 2, 20.50"

$

$

Currently unavailable

16

Exmark 116-8181

Blade-Extreme 2-20.50, Rd60
(Superseded to 116-8181-S)

$30.99

$

In Stock, Qty 9

0

16

Exmark 116-8196

Blade-Low Lift 20.5, Rd60
(Superseded to 116-8196-S)

$34.99

$

In Stock, only 2 left!

0

17

Exmark 103-3037

Bushing, Splined

$22.99

$

In Stock, Qty 20+

0

18

Exmark 109-9220

Screw-Sems 1/2-20 X 2.19

$8.49

$

In Stock, Qty 20+

0

19

Exmark 109-6938

Cover-Belt, LH

$96.99

$

In Stock, only 2 left!

0

20

Exmark 126-0853

Idler ASM

$243.99

$

Usually ships in 3-6 days

0

21

Exmark 108-1921

Spring-Torsion

$30.99

$

Usually ships in 3-6 days

0

22

Exmark 302-19

Zerk-1/4-28 Str

$2.49

$

In Stock, Qty 8

0

23

Exmark 103-2916

Guard-Top

$2.99

$

In Stock, Qty 9

0

24

Exmark 323-23

Screw-HH 3/8-16 X 4-1/2

$5.49

$

In Stock, Qty 16

0

25

Exmark 126-1478

Sheave

$50.99

$

In Stock, only 2 left!

0

26

Exmark 323-13

Screw-HH 3/8-16 X 2 3/4

$3.99

$

In Stock, only 4 left!

0

27

Exmark 3234-11

Screw-HH Flg 3/8-16 X 1

$4.49

$

In Stock, Qty 20+

0

28

Exmark 116-8187

Belt
(Superseded to 116-8187-SL)

$113.99

$

Usually ships in 3-6 days

0

29

Exmark 112-1479

Skid-Bumper, Deck

$101.99

$

Usually ships in 3-6 days

0

30

Exmark 3231-7

Bolt-Carriage 3/8-16 X 2 1/4

$6.99

$

In Stock, Qty 14

0

31

Exmark 125-9371

Belt
(Superseded to 125-9371-SL)

$161.99

$

Usually ships in 3-6 days

0

32

Exmark 98-7912

Tube-Spanner

$13.99

$

In Stock, Qty 12

0

33

Exmark 633456

Bushing, Idler

$

$

Currently unavailable

34

Exmark 116-2253

Plug,Black Nylon 1.75

$2.99

$

In Stock, only 4 left!

0

35

Exmark 126-1720

Deck Idler ASM

$243.99

$

In Stock, only 2 left!

0

36

Exmark 116-6317

Spring-Extension

$28.99

$

In Stock, Qty 7

0

37

Exmark 126-9189

Idler-Pulley, Flat 6.00X1.00

$61.99

$

In Stock, Qty 8

0

38

Exmark 116-8195-01

Cover-Drive Reverse

$173.99

$

Usually ships in 3-6 days

0

39

Exmark 116-8190

Cover-Belt, RH

$43.99

$

In Stock, only 1 left!

0

40

Exmark 9266934

Screw-HWH 5/16 X 1/2 Tf

$8.99

$

In Stock, only 2 left!

0

41

Exmark 116-8191

Guard-Tire

$17.99

$

Usually ships in 3-6 days

0

42

Exmark 126-0413-01

Support-Outer Flap

$20.99

$

Usually ships in 3-6 days

0

43

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 17

0

44

Exmark 3230-16

Bolt-Carriage 5/16-18 X 7/8

$2.99

$

In Stock, Qty 20+

0

45

Exmark 3274-55

Screw-Button Head 5/16-18 X 3/4

$5.49

$

In Stock, Qty 13

0

46

Exmark 126-4781-03

Step-Deck

$26.99

$

Usually ships in 3-6 days

0

47

Exmark 3230-3

Screw-CARR

$1.49

$

In Stock, Qty 20+

0

48

Exmark 126-8043

Shield-Dust

$2.99

$

In Stock, only 3 left!

0
