LZE751GKA604C1 - Exmark 60" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX (SN: 406294345 - 408644345) (Rev B) (2020) Main Frame Assembly Parts Diagram

60" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX

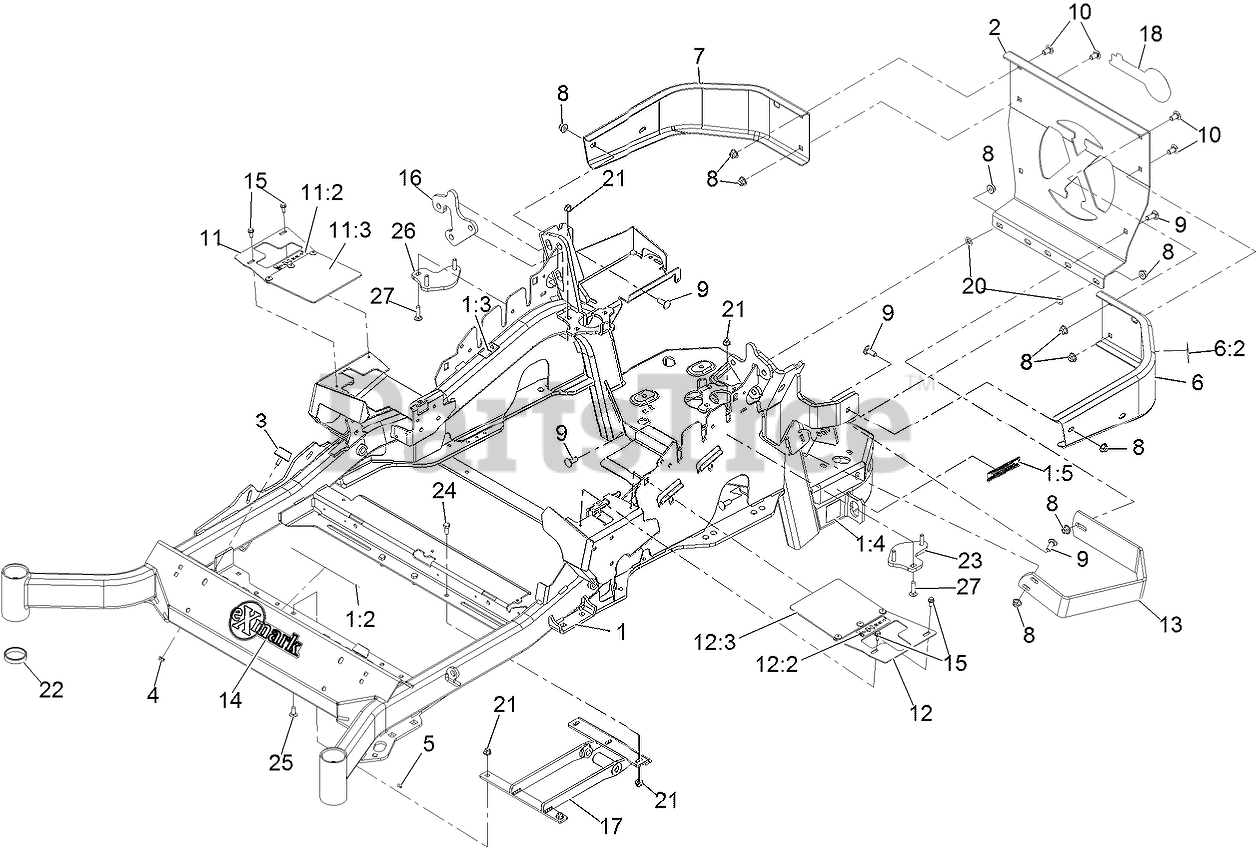

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 116-5902

MAINFRAME ASM

$

$

Not available

1:2

Exmark 132-0871

DECAL-DANGER

$9.49

$

In Stock, only 2 left!

0

1:3

Exmark 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 3 left!

0

1:4

Exmark 106-2655

DECAL-HAZARD, PINCHED FINGER

$1.49

$

In Stock, only 1 left!

0

1:5

Exmark 133-8062

DECAL-ARRESTOR, SPARK

$2.99

$

Usually ships in 3-6 days

0

2

Exmark 109-8863-03

PLATE,REAR GUARD

$181.99

$

Usually ships in 3-6 days

0

3

Exmark 131-8834

BUMPER

$11.99

$

Usually ships in 3-6 days

0

4

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

5

Exmark 1-811010

PLUG

$5.49

$

In Stock, Qty 11

0

6

Exmark 116-0180

LH BUMPER ASM

$148.99

$

Usually ships in 3-6 days

0

6:2

Exmark 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 3 left!

0

7

Exmark 116-0057-03

BUMPER-RH

$220.99

$

In Stock, only 1 left!

0

8

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

10

Exmark 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0

11

Exmark 131-4615

RH MOTION CONTROL COVER A

$127.99

$

Usually ships in 3-6 days

0

11:2

Exmark 99-8936

DECAL-CONTROL, MOTION

$22.99

$

In Stock, only 2 left!

0

11:3

Exmark 136-8967

FLAP-RUBBER

$7.99

$

Usually ships in 3-6 days

0

12

Exmark 131-4610

LH MOTION CONTROL COVER A

$127.99

$

Usually ships in 3-6 days

0

12:2

Exmark 99-8936

DECAL-CONTROL, MOTION

$22.99

$

In Stock, only 2 left!

0

12:3

Exmark 136-8967

FLAP-RUBBER

$7.99

$

Usually ships in 3-6 days

0

13

Exmark 126-2067-03

GUARD-MUFFLER

$60.99

$

Usually ships in 3-6 days

0

14

Exmark 135-2274

DECAL-EXMARK

$26.99

$

In Stock, only 4 left!

0

15

Exmark 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 15

0

16

Exmark 136-1674-01

PLATE-MOUNT, SHOCK

$23.99

$

Usually ships in 3-6 days

0

17

Exmark 131-6327-01

MOUNT-LOWER

$139.99

$

Usually ships in 3-6 days

0

18

Exmark 126-6877

DECAL, EXMARK LOGO

$7.99

$

In Stock, Qty 9

0

20

Exmark 107-3154

NUT-PUSH

$1.49

$

In Stock, Qty 6

0

21

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

22

Exmark 1-543508

CUP-BEARING

$7.99

$

In Stock, Qty 15

0

23

Exmark 127-6766

LH PLATE ASM (W/STUDS)

$44.99

$

Usually ships in 3-6 days

0

24

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

25

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

26

Exmark 127-6765

RH PLATE ASM (W/STUDS)

$44.99

$

Usually ships in 3-6 days

0

27

Exmark 3230-3

Bolt-Carriage 5/16-18 X 1 1/4

$1.49

$

In Stock, Qty 20+

0
