LZE751GKA604C1 - Exmark 60" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX (SN: 402082300 - 404314158) (2018) Full Suspension Assembly Parts Diagram

60" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX

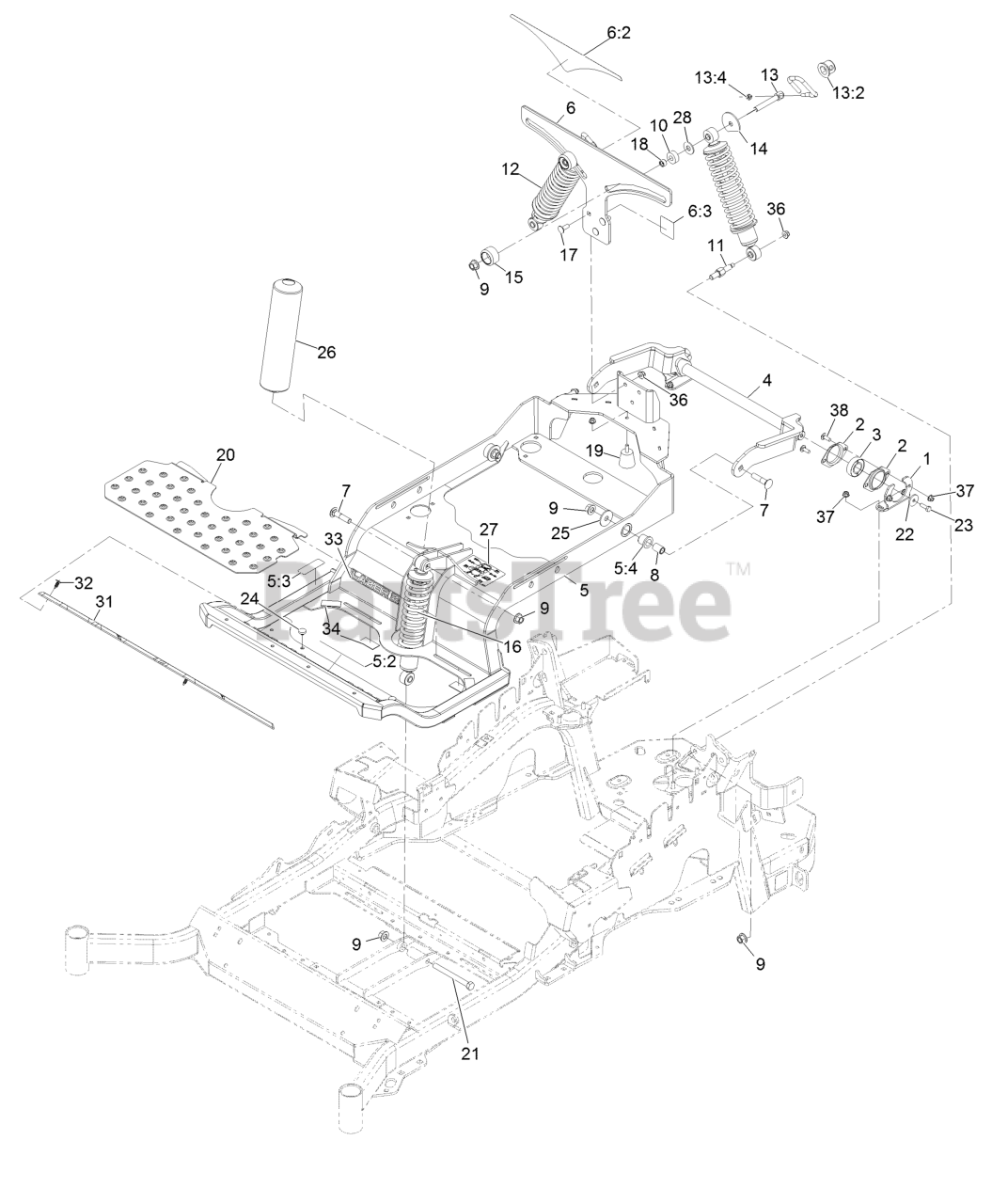

Full Suspension Assembly Parts Diagram

  • Title

1

Exmark 127-6759-03

Bracket-Bearing

$23.99

$

Usually ships in 3-6 days

0

2

Exmark 127-6743

Housing-Bearing, Flange

$5.49

$

Usually ships in 3-6 days

0

3

Exmark 1-653346

Bearing

$69.99

$

In Stock, Qty 5

0

4

Exmark 127-6754-03

Arm-Trailing

$263.99

$

Usually ships in 3-6 days

0

5

Exmark 132-5057

Subframe ASM

$988.99

$

Usually ships in 3-6 days

0

5:2

Exmark 132-0871

Decal-Danger

$8.49

$

Usually ships in 3-6 days

0

5:3

Exmark 115-9625

Decal-Brake, Parking

$5.49

$

Usually ships in 3-6 days

0

5:4

Exmark 127-6745

Bushing-Flange

$11.99

$

Usually ships in 3-6 days

0

6

Exmark 133-1809

Bracket-Mounting

$222.99

$

Usually ships in 3-6 days

0

6:2

Exmark 132-5080

Decal-Adjustment, Ride

$54.99

$

Usually ships in 3-6 days

0

6:3

Exmark 132-5063

Decal-Lock, Cam

$5.49

$

Usually ships in 3-6 days

0

7

Exmark 127-6768

Bolt-Carriage 1/2-13 X 2 1/4

$3.49

$

Usually ships in 3-6 days

0

8

Exmark 127-6751

Spacer-Aluminum

$8.99

$

Usually ships in 3-6 days

0

9

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

10

Exmark 131-8801

Spacer

$8.99

$

Usually ships in 3-6 days

0

11

Exmark 131-6348

Bolt-Shoulder

$15.99

$

Usually ships in 3-6 days

0

12

Exmark 133-1815

Shock/Spring ASM

$127.99

$

In Stock, only 2 left!

0

13

Exmark 131-8843

Cam Lock ASM

$33.99

$

Usually ships in 3-6 days

0

13:2

Exmark 107-1644

Cap-Lock

$18.99

$

In Stock, only 2 left!

0

13:4

Exmark 119-4038

Nut-Hex Nyloc 5/16-18

$2.99

$

In Stock, Qty 20+

0

14

Exmark 131-4646

Plate-Stop

$5.49

$

Usually ships in 3-6 days

0

15

Exmark 131-4647

Knob-Front

$18.99

$

Usually ships in 3-6 days

0

16

Exmark 136-8956

Shock/Spring ASM
(Superseded to 136-1719)

$127.99

$

Usually ships in 3-6 days

0

16

Exmark 136-8993

Shock/Spring ASM

$169.99

$

Usually ships in 3-6 days

0

17

Exmark 3231-22

Bolt-Carriage 3/8-16 X 1

$3.49

$

In Stock, Qty 20+

0

18

Exmark 47-7270

Bearing-Needle

$29.99

$

In Stock, only 4 left!

0

19

Exmark 132-5058

Bumper-Rubber

$12.99

$

Usually ships in 3-6 days

0

20

Exmark 132-5089-01

Floorpan

$104.99

$

Usually ships in 3-6 days

0

21

Exmark 325-19

Screw-HH 1/2-13 X 5

$8.49

$

In Stock, only 4 left!

0

22

Exmark 105-3048

Washer-Flat

$1.49

$

In Stock, Qty 11

0

23

Exmark 116-0648

Screw-HH 5/16-18 X 1 W/Patch

$1.49

$

In Stock, Qty 20+

0

24

Exmark 1-513658

Bumper

$6.49

$

In Stock, Qty 11

0

25

Exmark 86-1990

Washer

$3.99

$

In Stock, only 4 left!

0

26

Exmark 133-1803

Cover-Shock

$12.99

$

In Stock, only 3 left!

0

27

Exmark 114-4465

Decal-Service Aid

$26.99

$

Usually ships in 3-6 days

0

28

Exmark 3256-6

Washer

$0.99

$

In Stock, Qty 20+

0

31

Exmark 133-1812

Floor Mat

$70.99

$

Usually ships in 3-6 days

0

32

Exmark 117-2382

Plug-Plastic

$0.99

$

In Stock, Qty 6

0

33

Exmark 133-1804

Decal-Lazer Logo

$7.49

$

Usually ships in 3-6 days

0

34

Exmark 130-0733

Pad-Rubber

$1.49

$

Usually ships in 3-6 days

0

36

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

37

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

38

Exmark 3230-10

Bolt-Carriage 5/16-18 X 7/8

$3.99

$

In Stock, only 4 left!

0
