Exmark LZE751GKA604A1 - Exmark 60" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX (SN: 404314159 - 406294344) (Rev B) (2019) Deck Lift Assembly Parts Lookup with Diagrams

1

Exmark 116-2031

LONG STRUT ASM

$118.99

$

In Stock, only 1 left!

1:2

Exmark 109-5009

BUSHING-SUSPENSION, RUBBER

$5.49

$

In Stock, Qty 15

1:3

Exmark 109-5010

SPACER

$12.99

$

In Stock, Qty 6

3

Exmark 109-5013

PANHARD ROD ASM

$142.99

$

In Stock, Qty 6

3:2

Exmark 109-5009

BUSHING-SUSPENSION, RUBBER

$5.49

$

In Stock, Qty 15

3:3

Exmark 109-5010

SPACER

$12.99

$

In Stock, Qty 6

4

Exmark 86-1990

WASHER-THRUST

$3.99

$

In Stock, only 3 left!

5

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

6

Exmark 325-12

SCREW-HH

$6.49

$

In Stock, only 2 left!

7

Exmark 325-17

SCREW-HH

$5.99

$

In Stock, Qty 6

8

Exmark 3233-34

SCREW-CARR

$9.49

$

In Stock, only 3 left!

9

Exmark 127-0553

SUPPORT-CROSS SHAFT, BEARING REAR

$14.99

$

In Stock, Qty 6

10

Exmark 109-7173

BEARING-CROSS SHAFT, REAR

$5.49

$

In Stock, Qty 6

11

Exmark 3231-4

SCREW-CARR

$3.99

$

In Stock, Qty 20+

12

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

13

Exmark 109-9409

SUPPORT-CROSS SHAFT, BEARING

$14.99

$

In Stock, Qty 17

14

Exmark 109-9410

BEARING-CROSS SHAFT, FRON

$5.49

$

In Stock, Qty 11

15

Exmark 116-1700

Bolt-Carriage 1/2-13 X 2 1/2 Spl Neck

$5.49

$

Usually ships in 3-6 days

16

Exmark 109-9840

SCREW-SHOULDER, HHF

$5.49

$

In Stock, Qty 11

17

Exmark 109-7438

HOC ASM

$273.99

$

In Stock, only 1 left!

18

Exmark 109-9065

SCREW-HH

$3.49

$

In Stock, Qty 20+

19

Exmark 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

20

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 12

21

Exmark 126-2475-03

DECKLIFT-FRONT

$172.99

$

Usually ships in 3-6 days

22

Exmark 116-0756

DECK LIFT CHAIN ASM

$14.99

$

In Stock, Qty 8

22:1

Exmark 1-633447

CHAIN-LIFT, DECK

$10.99

$

In Stock, Qty 16

22:2

Exmark 109-9065

SCREW-HH

$3.49

$

In Stock, Qty 20+

22:3

Exmark 32128-37

NUT-HF

$4.49

$

In Stock, Qty 17

23

Exmark 116-0559

BOLT-TAP

$6.49

$

Usually ships in 3-6 days

24

Exmark 32128-37

NUT-HF

$4.49

$

In Stock, Qty 17

25

Exmark 109-9066

YOKE-ADJUST, DECK

$7.99

$

In Stock, only 2 left!

26

Exmark 322-47

SCREW-HH

$2.99

$

In Stock, Qty 18

27

Exmark 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

28

Exmark 116-0459-03

LIFT-DECK, REAR

$334.99

$

Usually ships in 3-6 days

29

Exmark 116-0780

SCREW-SHOULDER, HHF 1/2-13 X 1.12

$9.49

$

In Stock, only 3 left!

30

Exmark 116-0797-03

LINK-LIFT, DECK

$136.99

$

Usually ships in 3-6 days

31

Exmark 116-0000

SPRING-EXTENSION

$136.99

$

Usually ships in 3-6 days

32

Exmark 116-5584

PIN-HOC

$5.49

$

In Stock, only 4 left!

33

Exmark 116-1919-01

LEVER-FOOT

$99.99

$

Usually ships in 3-6 days

34

Exmark 3256-28

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

35

Exmark 92-7674

BOLT-SHOULDER

$2.99

$

Usually ships in 3-6 days

36

Exmark 3231-7

Bolt-Carriage 3/8-16 X 2 1/4

$6.99

$

In Stock, Qty 14

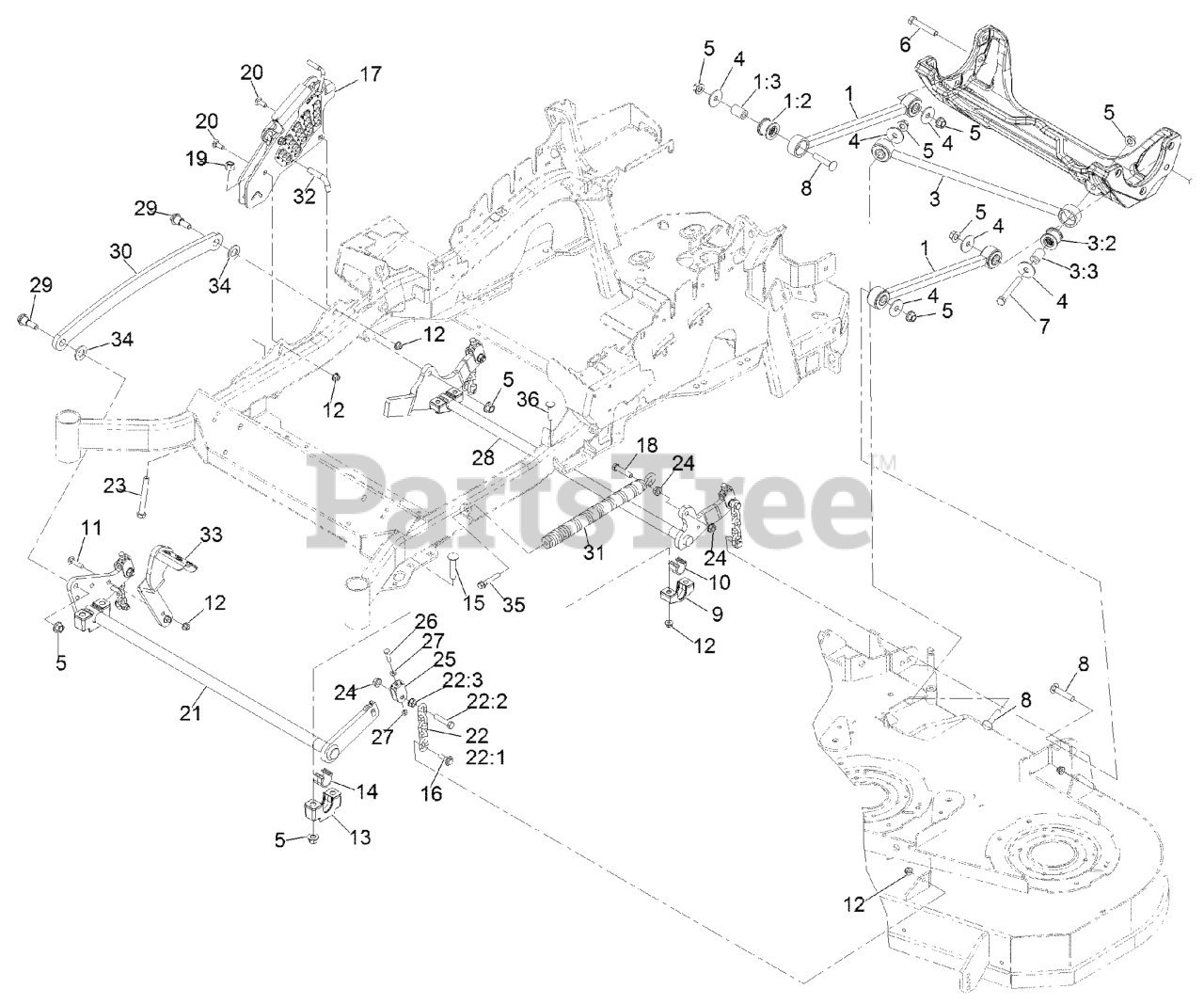

LZE751GKA604A1 - Exmark 60" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX (SN: 404314159 - 406294344) (Rev B) (2019) Deck Lift Assembly Parts Diagram

Deck Lift Assembly Parts Diagram
