LZE751CKA604A1 - Exmark 60" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX (SN: 400000000 - 402082299) (2017) Engine Assembly Parts Diagram

60" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX

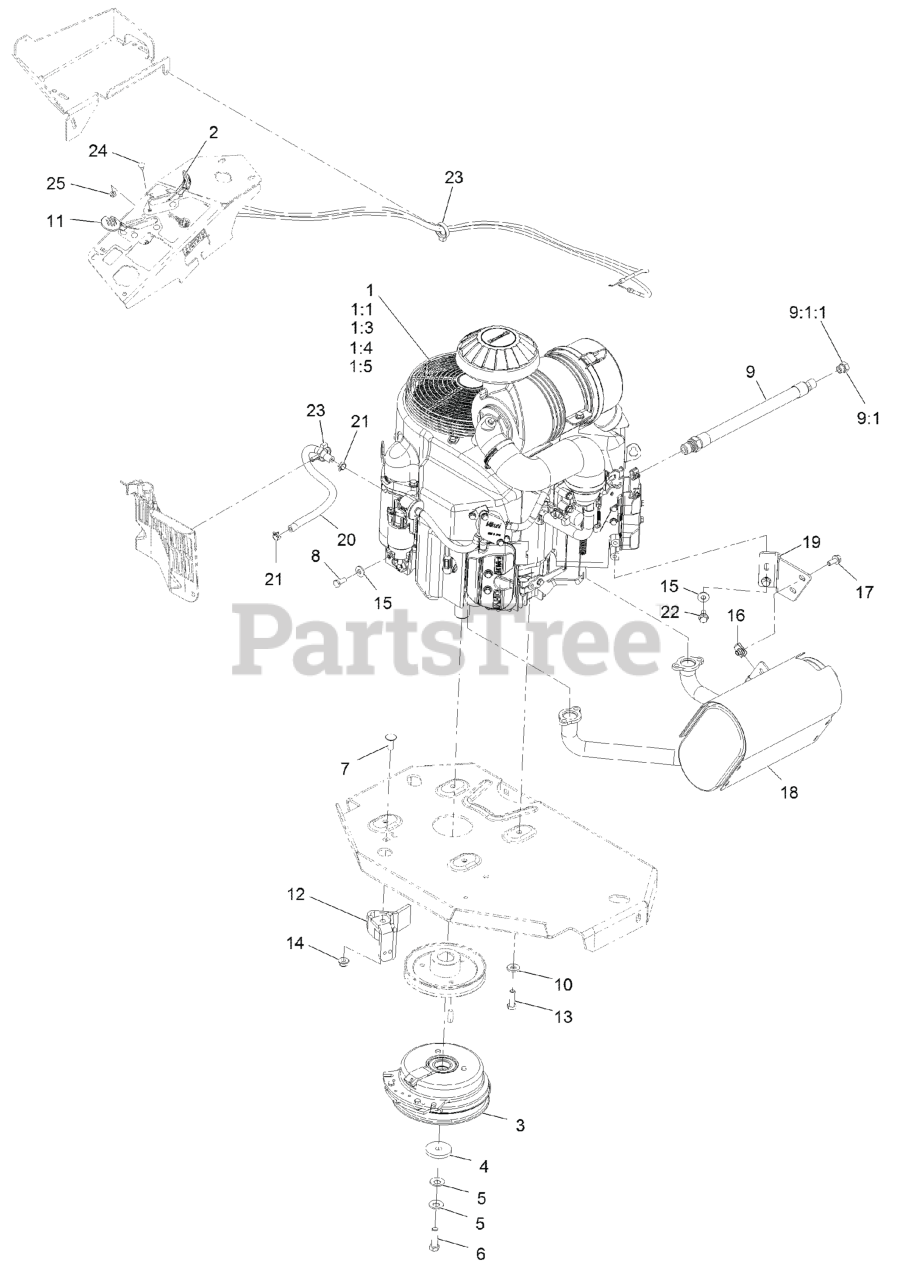

Engine Assembly Parts Diagram

  • Title

1

Engine-Kawasaki Fx751V-S07-R

Note: Not serviced separately | Obtain parts from www.kawpowerepc.com

$

$

Not available

1:1

Kawasaki 49065-2078 Engine Oil Filter

Note: Not serviced separately | Obtain parts from www.kawpowerepc.com

$

$

Not available

1:2

Kawasaki 49019-7001 Fuel Filter

Note: Not serviced separately | Obtain parts from www.kawpowerepc.com

$

$

Not available

1:3

Kawasaki 11013-7039 Safety Filter

Note: Not serviced separately | Obtain parts from www.kawpowerepc.com

$

$

Not available

1:4

Kawasaki 11013-7038 Air Filter

Note: Not serviced separately | Obtain parts from www.kawpowerepc.com

$

$

Not available

3

Exmark 116-1620

CLUTCH KIT

$359.99

$

In Stock, only 4 left!

0

4

Exmark 109-6919

WASHER-CLUTCH

$5.49

$

In Stock, Qty 9

0

5

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 8

0

6

Exmark 109-9761

SCREW-HH 7/16-20 X 1 1/2 W/LOCTITE

$5.49

$

In Stock, Qty 7

0

7

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

8

Exmark 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0

9

Exmark 116-4924

ENGINE OIL DRAIN HOSE ASM

Note: Torque to 23-29 ft-lb

$37.99

$

In Stock, Qty 5

0

9:1

Exmark 353-508

PLUG-HH

Note: Torque to 24-26 ft-lb

$8.49

$

In Stock, only 1 left!

0

9:1:1

Exmark 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

10

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

12

Exmark 116-2612-01

CLUTCH-ANCHOR

$55.99

$

In Stock, only 2 left!

0

13

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

14

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

15

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

16

Exmark 94-2413

NUT-U

$2.99

$

In Stock, Qty 20+

0

17

Exmark 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 6

0

18

Exmark 116-1712

MUFFLER

$216.99

$

Usually ships in 3-6 days

0

19

Exmark 116-0203

BRACKET-MUFFLER

$34.99

$

Usually ships in 3-6 days

0

20

Exmark 109-0296

HOSE-FUEL

$10.99

$

In Stock, only 4 left!

0

21

Exmark 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

22

Exmark 95-4184

SCREW-HHF
(Superseded to 139-3392)

$2.99

$

Usually ships in 3-6 days

0
