LZE751CKA524A2 - Exmark 52" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX (SN: 404314159 - 406294344) (2019) Rear Wheel Assembly Parts Diagram

52" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX

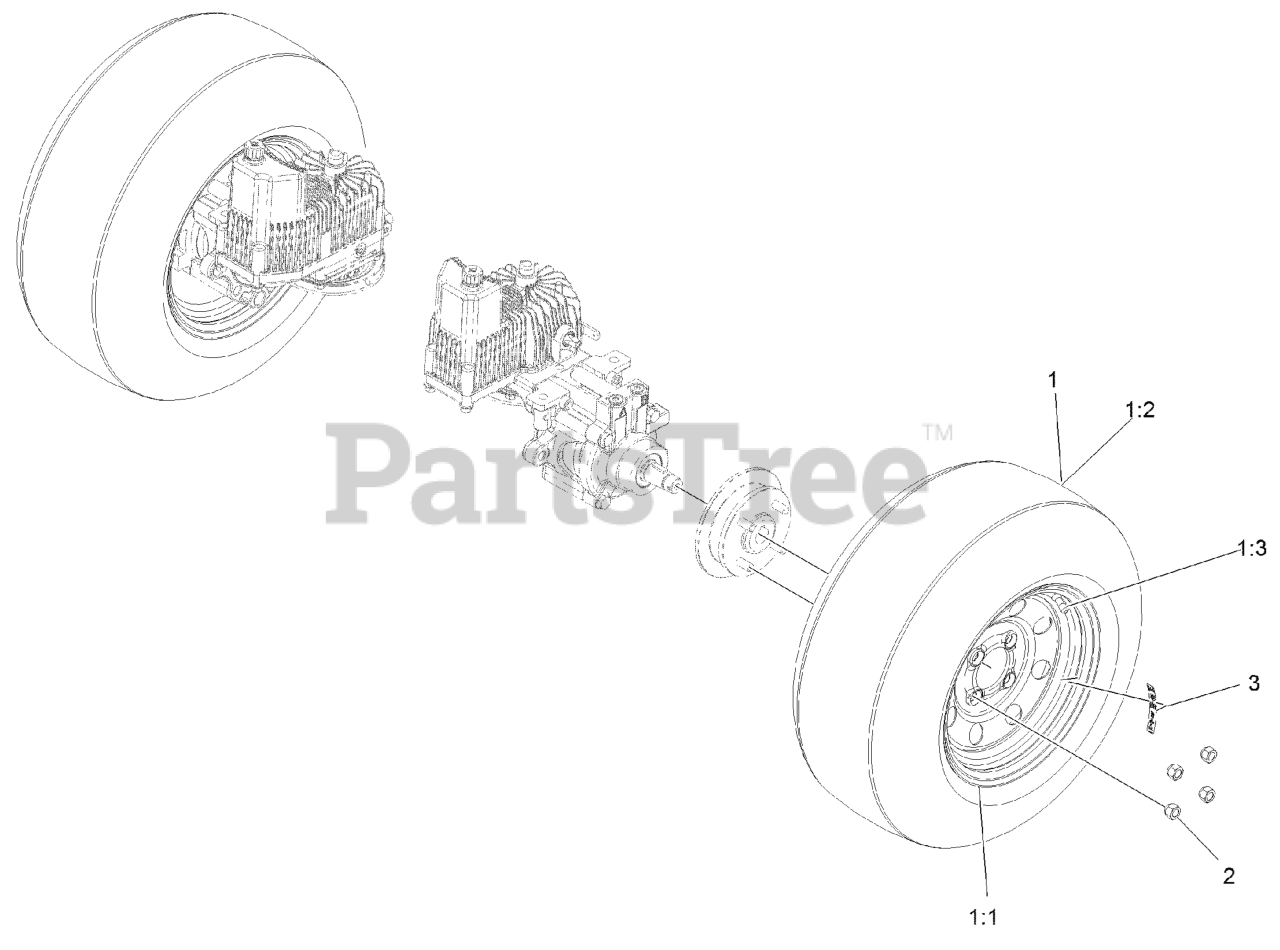

Rear Wheel Assembly Parts Diagram

  • Title
1

Exmark 116-8289

WHEEL AND TIRE ASM

$399.99

$

In Stock, only 2 left!

0

1:1

Exmark 116-8290

ASM, RIM

$197.99

$

In Stock, only 1 left!

0

1:2

Exmark 116-8291

TIRE-DRIVE, 23X9.5-12
(Superseded to 126-3288)

$249.99

$

Usually ships in 3-6 days

0

1:3

Exmark 232-27

Stem-Valve

$

$

Not available

2

Exmark 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, only 4 left!

0

3

Exmark 126-2055

DECAL-TORQUE, WHEEL HUB LUG

$6.49

$

In Stock, Qty 11

0
