LZE751CKA524A2 - Exmark 52" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX (SN: 402082300 - 404314158) (2018) Hydraulic Assembly Parts Diagram

52" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX

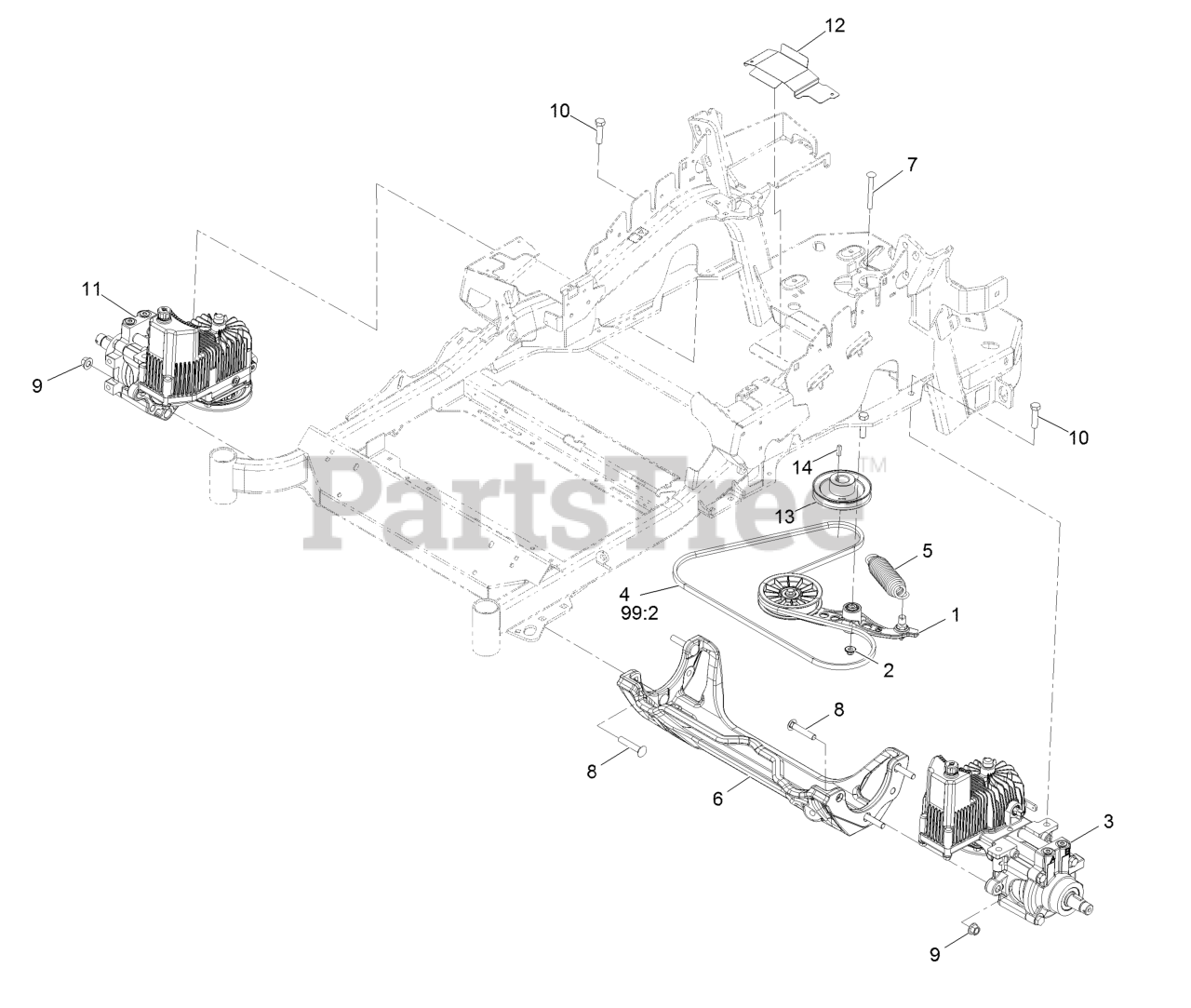

Hydraulic Assembly Parts Diagram

  • Title

1

Exmark 116-1255

Pump Idler ASM

$217.99

$

In Stock, Qty 13

0

2

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

3

Exmark 126-1327

LH Hydro ASM (12Cc No Fan)
(Superseded to 135-7901)

$3070.99

$

Usually ships in 3-6 days

0

4

Exmark 116-1953

Belt-V
(Superseded to 116-1953-SL)

$49.99

$

Usually ships in 3-6 days

0

5

Exmark 116-6317

Spring-Extension

$28.99

$

In Stock, Qty 20+

0

6

Exmark 116-7558

Cradle-Hydro

$227.99

$

Usually ships in 3-6 days

0

7

Exmark 116-1502

Bolt-Carriage Shoulder 3/8-16 X 3 1/2

$7.99

$

In Stock, Qty 14

0

8

Exmark 126-0095

Screw-CARR

$2.99

$

In Stock, only 3 left!

0

9

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

10

Exmark 325-8

Screw-HH 1/2-13 X 1 1/4

$5.49

$

In Stock, Qty 17

0

11

Exmark 126-1328

RH Hydro ASM (12Cc No Fan)
(Superseded to 135-7902)

$3070.99

$

Usually ships in 3-6 days

0

12

Exmark 116-2999-01

Guard-Belt

$38.99

$

Usually ships in 3-6 days

0

13

Exmark 116-1946

Sheave-Pump, Drive

$74.99

$

In Stock, only 1 left!

0

14

Exmark 1-807259

Key-Machine 1/4 X 1/4 X 1

$2.49

$

In Stock, Qty 20+

0

99

Exmark 109-9828

Bottle-Oil, 32Oz Hydraulic

$18.99

$

In Stock, Qty 20+

0

99

Exmark 116-0164

Filter-Hydro

$72.99

$

In Stock, Qty 20+

0

99

Exmark 116-1218

Bottle,Oil 1 Gallon Hydraulic

$71.99

$

In Stock, Qty 20+

0

99

Exmark 116-3282

Kit,Hydro Service
(Superseded to 126-8103)

$254.99

$

In Stock, Qty 8

0

99:1

Exmark 109-9828

Bottle-Oil, 32Oz Hydraulic

$18.99

$

In Stock, Qty 20+

0

99:2

Exmark 116-1953

Belt-V
(Superseded to 116-1953-SL)

$49.99

$

Usually ships in 3-6 days

0

99:3

Exmark 116-0164

Filter-Hydro

$72.99

$

In Stock, Qty 20+

0
