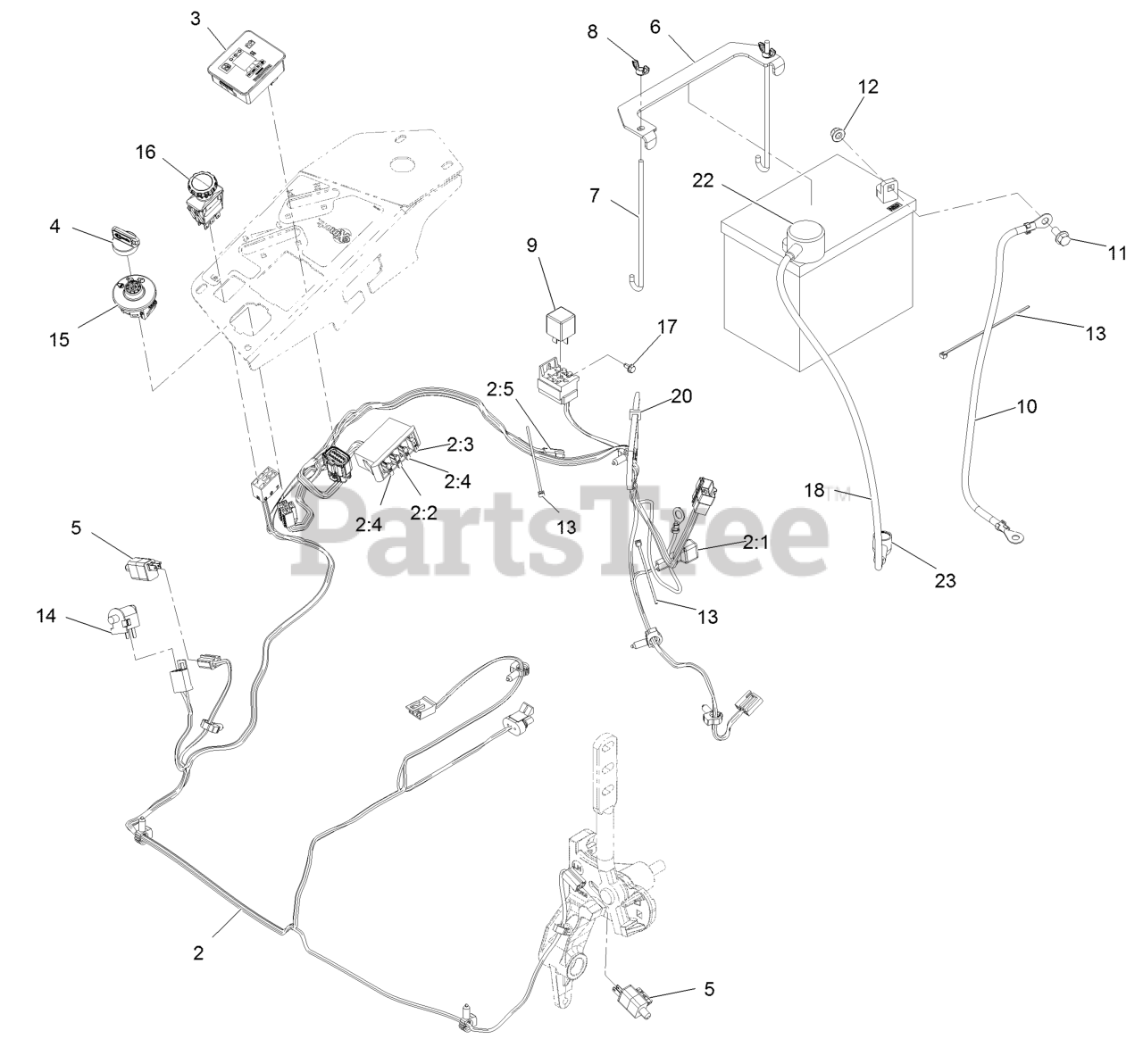

LZE751CKA524A2 - Exmark 52" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX (SN: 402082300 - 404314158) (2018) Electrical Assembly Parts Diagram

52" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX

Electrical Assembly Parts Diagram

  • Title
2

Exmark 116-6009

Harness-Wire, Main

$258.99

$

In Stock, only 2 left!

0

2:1

$64.99

$

In Stock, Qty 5

0

2:2

Exmark 218-578

Fuse-Blade, 10 Amp

$2.99

$

In Stock, Qty 6

0

2:3

Exmark 109355

Fuse-Blade, 15 Amp

$3.49

$

In Stock, only 1 left!

0

2:4

Exmark 109102

Fuse-Blade, 25 Amp

$5.99

$

In Stock, Qty 8

0

2:5

Exmark 116-0053

Cap-Plug

$39.99

$

Usually ships in 3-6 days

0

3

Exmark 117-3882

Fuel/Hour Meter ASM

$157.99

$

In Stock, Qty 10

0

4

Exmark 1-603511

Key-Ignition

$2.49

$

In Stock, Qty 20+

0

4

Exmark 103-2106

Key-Exmark Logo

$5.49

$

In Stock, Qty 7

0

5

$13.99

$

In Stock, Qty 11

0

6

Exmark 116-0042-03

Strap-Tie Down, Battery

$22.99

$

In Stock, only 2 left!

0

7

Exmark 1-633651

Bolt-Holddown

$7.99

$

In Stock, Qty 9

0

8

Exmark 1-543792

Wingnut-Nyloc 1/4-20

$6.49

$

In Stock, Qty 15

0

9

Exmark 1-643275

Relay-12Vdc 40 Amp

$23.99

$

In Stock, Qty 6

0

10

Exmark 114-1218

Cable-Battery, Negative

$23.99

$

In Stock, only 1 left!

0

11

Exmark 3234-5

Screw-HH Flg 5/16-18 X 3/4

$1.49

$

In Stock, Qty 5

0

12

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 17

0

13

Exmark 1-303287

Tie-Cable 5 1/2 (Small)

$1.49

$

Usually ships in 3-6 days

0

14

$14.99

$

In Stock, Qty 10

0

15

Exmark 137-4100

Switch-Ignition

$35.99

$

In Stock, Qty 19

0

16

Exmark 116-0124

Switch-PTO, 10 Amp
(Superseded to 135-3653)

$68.99

$

In Stock, Qty 9

0

17

Exmark 104-2065

Screw-HWH #10-24 X 3/8

$0.99

$

In Stock, Qty 20+

0

18

Exmark 115-3864

Cable-Battery, Positive

$30.99

$

Usually ships in 3-6 days

0

20

Exmark 1-303335

Tie-Cable 7 15/16 (Large)
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

22

Exmark 109-2407

Insulator-Battery

$5.49

$

In Stock, only 3 left!

0

23

Exmark 1-543393

Insulator-Solenoid

$5.49

$

In Stock, only 2 left!

0
