Exmark LZE751CKA524A2 - Exmark 52" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX (SN: 402082300 - 404314158) (2018) Deck Lift Assembly Parts Lookup with Diagrams

1

Exmark 109-7952

Deck Strut ASM

$144.99

$

In Stock, Qty 10

1:2

Exmark 109-5009

Bushing-Suspension,Rubber

$5.49

$

In Stock, Qty 11

1:3

Exmark 109-5010

Spacer

$13.99

$

In Stock, Qty 20+

2

Exmark 109-5013

Panhard Rod ASM

$142.99

$

In Stock, Qty 5

2:2

Exmark 109-5009

Bushing-Suspension,Rubber

$5.49

$

In Stock, Qty 11

2:3

Exmark 109-5010

Spacer

$13.99

$

In Stock, Qty 20+

3

Exmark 86-1990

Washer

$3.99

$

In Stock, Qty 20+

4

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

5

Exmark 325-12

Screw-HH 1/2-13 X 3

$6.49

$

In Stock, Qty 20+

6

Exmark 325-17

Screw-HH 1/2-13 X 4

$6.49

$

In Stock, Qty 20+

7

Exmark 3233-34

Bolt-Carriage 1/2-13 X 2 1/2

$9.49

$

In Stock, only 3 left!

8

Exmark 127-0553

Support-Cross Shaft,Bearing Rear

$14.99

$

In Stock, Qty 7

9

Exmark 109-7173

Bearing-Cross Shaft, Rear

$5.49

$

In Stock, Qty 20+

10

Exmark 3231-4

Bolt-Carriage 3/8-16 X 1 1/2

$3.99

$

In Stock, Qty 20+

11

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

12

Exmark 109-9409

Support-Cross Shaft,Bearing Rear

$14.99

$

In Stock, Qty 20+

13

Exmark 109-9410

Bearing-Cross Shaft, Front

$5.49

$

In Stock, Qty 20+

14

Exmark 116-1700

Bolt-Carriage 1/2-13 X 2 1/2 Spl Neck

$5.49

$

Usually ships in 3-6 days

15

Exmark 109-9840

Screw-Hex Flange 3/8-16 X .80

$5.49

$

In Stock, Qty 20+

16

Exmark 109-7438

HOC ASM

$273.99

$

In Stock, only 1 left!

17

Exmark 109-9065

Screw-HH 7/16-14 X 2

$3.49

$

In Stock, Qty 20+

18

Exmark 3296-23

Nut-Nyloc 1/2-13

$1.49

$

In Stock, Qty 20+

19

Exmark 3231-2

Bolt-Carriage 3/8-16 X 1

$1.99

$

In Stock, Qty 20+

20

Exmark 126-2475-03

Decklift-Front

$172.99

$

Usually ships in 3-6 days

21

Exmark 116-0756

Deck Lift Chain ASM

$14.99

$

In Stock, Qty 8

21:1

Exmark 1-633447

Chain-Lift, Deck

$10.99

$

In Stock, Qty 16

21:2

Exmark 109-9065

Screw-HH 7/16-14 X 2

$3.49

$

In Stock, Qty 20+

21:3

Exmark 32128-37

Nut-Whizlock 7/16-14

$4.49

$

In Stock, Qty 17

22

Exmark 116-0559

Bolt-HH 1/2-13 X 4 Tap

$6.49

$

Usually ships in 3-6 days

23

Exmark 32128-37

Nut-Whizlock 7/16-14

$4.49

$

In Stock, Qty 17

24

Exmark 109-9066

Yoke-Adjust, Deck

$7.99

$

In Stock, Qty 5

25

Exmark 322-47

Screw-HH 5/16-18 X 1 1/4

$2.49

$

In Stock, Qty 18

26

Exmark 3218-2

Nut-Jam 5/16-18

$0.99

$

In Stock, Qty 20+

27

Exmark 116-0459-03

Lift-Deck, Rear

$334.99

$

Usually ships in 3-6 days

28

Exmark 116-0780

Screw-Shoulder HHF 1/2-13 X 1.12

$9.49

$

In Stock, only 2 left!

29

Exmark 116-0797-03

Link-Lift, Deck

$136.99

$

Usually ships in 3-6 days

30

Exmark 116-0886

Sub-Contract Bom

$136.99

$

Usually ships in 3-6 days

30

Spring-Extension

$

Not available 

31

Exmark 116-5584

Pin-HOC

$5.49

$

In Stock, Qty 10

32

Exmark 116-1919-01

Lever-Foot

$99.99

$

Usually ships in 3-6 days

33

Exmark 3256-28

Washer-3/4 SAE

$3.99

$

In Stock, Qty 20+

34

Exmark 92-7674

Screw-Shcs 3/8-16 X 2.212

$2.99

$

Usually ships in 3-6 days

35

Exmark 132-5075-01

Weight-Toe Board

(Superseded to 140-4963-01) 

$153.99

$

Usually ships in 3-6 days

36

Exmark 321-8

Screw-HH 1/4-20 X 1 1/4

$3.99

$

In Stock, Qty 20+

37

Exmark 3256-22

Washer-1/4 SAE

$0.99

$

In Stock, Qty 20+

38

Exmark 104-7201

Nut-Nyloc 1/4-20 Flg

$1.49

$

In Stock, Qty 20+

39

Exmark 3231-7

Bolt-Carriage 3/8-16 X 2 1/4

$6.99

$

In Stock, Qty 11

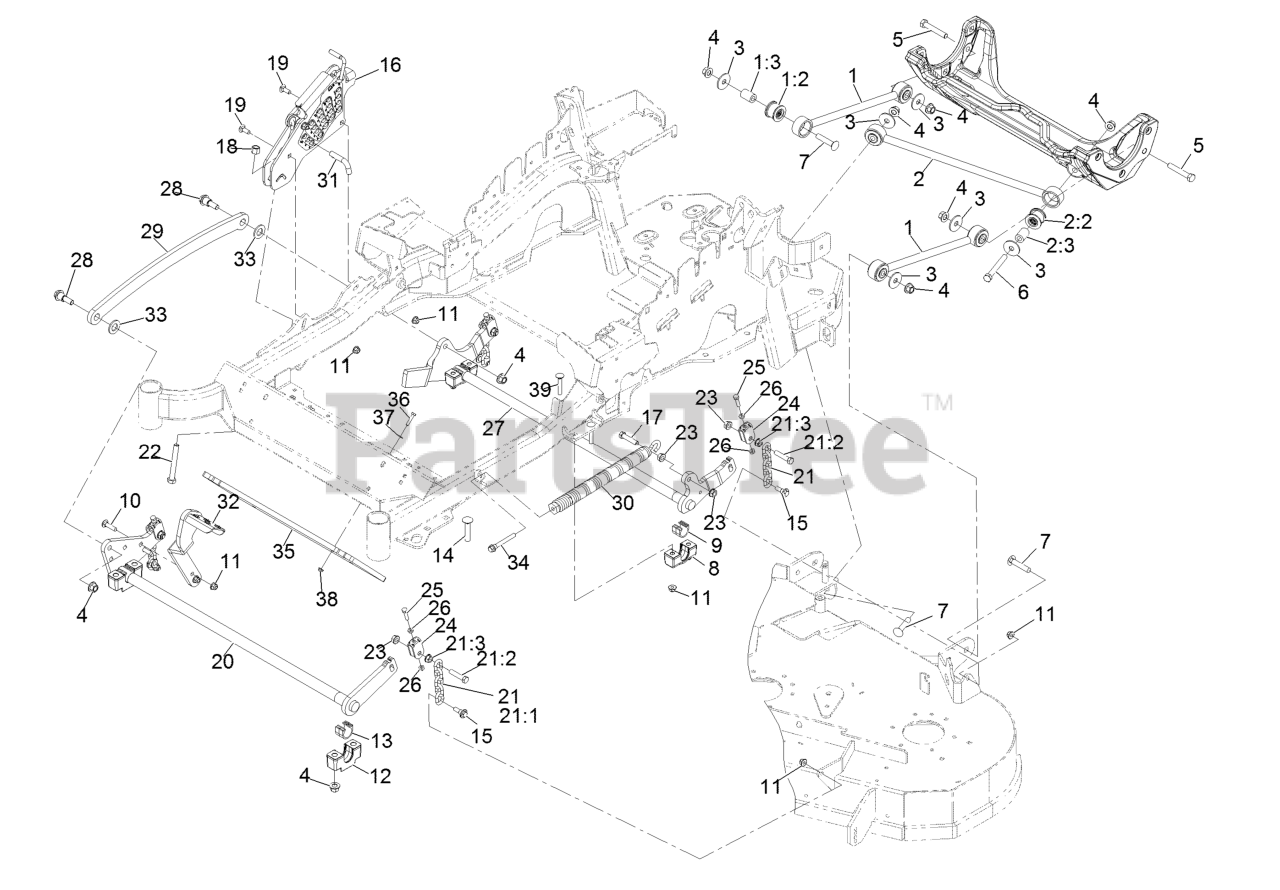

LZE751CKA524A2 - Exmark 52" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX (SN: 402082300 - 404314158) (2018) Deck Lift Assembly Parts Diagram

Deck Lift Assembly Parts Diagram
