LZE742GKC604A3 - Exmark 60" Lazer Z E-Series Zero-Turn Mower, Kohler CV742 (SN: 402082300 - 404314158) (2018) LH Hydro Assembly No. 126-1323 Parts Diagram

60" Lazer Z E-Series Zero-Turn Mower, Kohler CV742

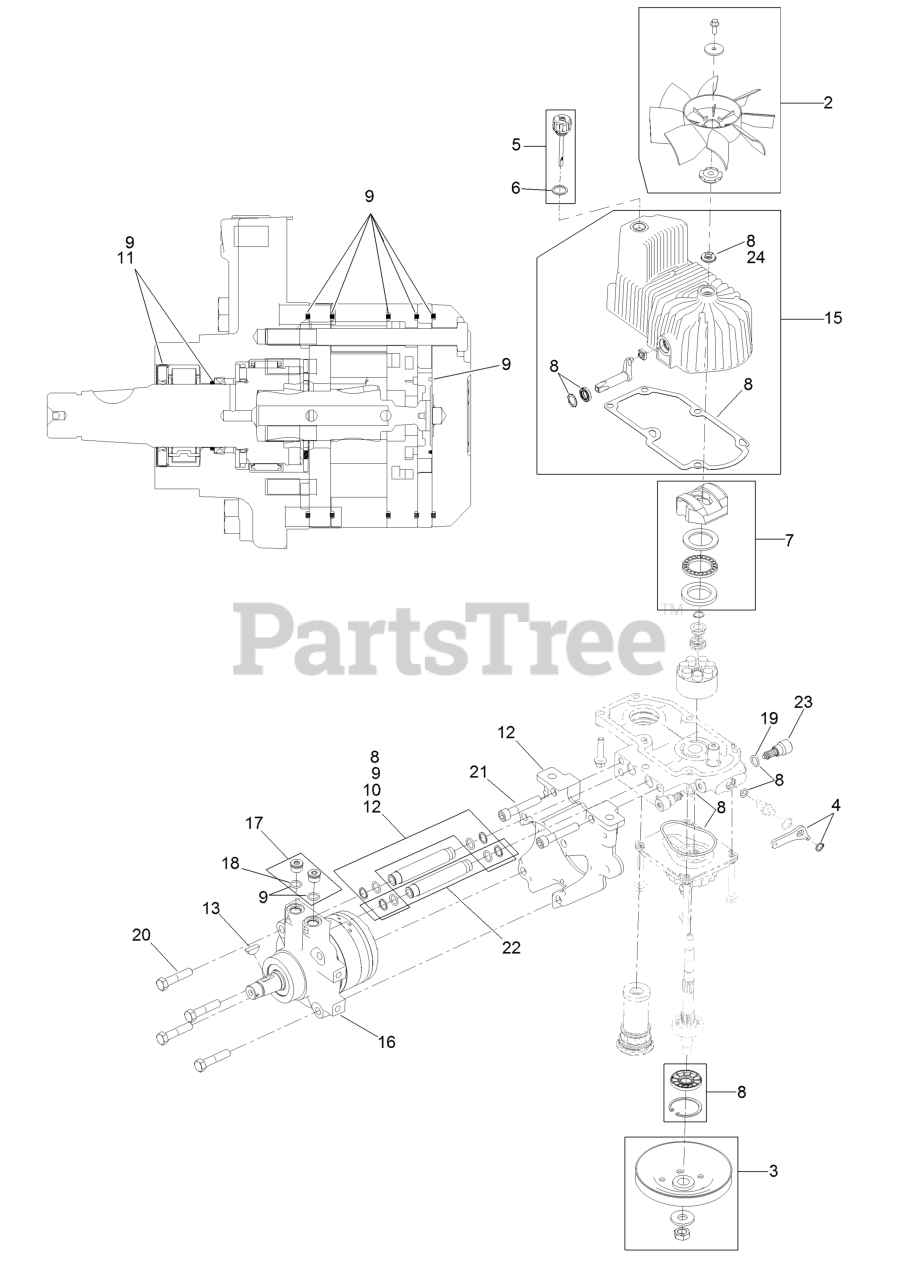

LH Hydro Assembly No. 126-1323 Parts Diagram

  • Title
2

Exmark 116-0233

Fan Kit

$

$

Not available

3

Exmark 116-0234

Pulley Kit

$172.99

$

Usually ships in 3-6 days

0

4

Exmark 116-0235

Handle-Bypass Valve, Hydro

$15.99

$

Usually ships in 3-6 days

0

5

Exmark 116-0236

Dipstick-Hydro W/Gasket

$52.99

$

In Stock, only 4 left!

0

6

Exmark 116-0237

Gasket-Dipstick, Hydro

$14.99

$

In Stock, only 2 left!

0

7

Exmark 116-1367

Swash Block Kit

$505.99

$

Usually ships in 3-6 days

0

8

Exmark 116-1368

Pump Seal Kit
(Superseded to 142-3604)

$152.99

$

In Stock, Qty 8

0

9

Exmark 116-1369

Motor Seal Kit

$269.99

$

Usually ships in 3-6 days

0

10

Exmark 116-1370

Tube Seal Kit

$30.99

$

In Stock, Qty 5

0

11

Exmark 116-1371

Output Shaft Seal Kit

$139.99

$

In Stock, only 1 left!

0

12

Exmark 116-5469

Nose Cup-Uht

$295.99

$

In Stock, only 1 left!

0

13

Exmark 3257-42

Key-Woodruff

$6.49

$

In Stock, Qty 10

0

15

Exmark 116-3287

Housing-LH
(Superseded to 142-4460)

$742.99

$

Usually ships in 3-6 days

0

16

Exmark 116-8915

Motor-Hydraulic LH 240Cc

$1692.99

$

Usually ships in 3-6 days

0

17

Exmark 116-7901

Magnetic Plugs Service Kit

$109.99

$

Usually ships in 3-6 days

0

18

$4.99

$

Usually ships in 3-6 days

0

19

Exmark 116-8662

O-Ring-Check Valve

$2.99

$

In Stock, Qty 20+

0

20

Exmark 116-8974

Screw HH

$5.49

$

In Stock, Qty 13

0

21

Exmark 116-8975

Screw-HSH

$10.99

$

In Stock, only 2 left!

0

22

Exmark 116-9922

Hydraulic Tube Kit

$159.99

$

Usually ships in 3-6 days

0

23

Exmark 126-7466

Shock Valve, 12Cc Hydro

$103.99

$

Usually ships in 3-6 days

0

24

Exmark 126-7711

Seal-Fan Drive

$22.99

$

In Stock, Qty 6

0

99

Exmark 116-4245

Puller-Pulley

$215.99

$

Usually ships in 3-6 days

0

99

Exmark 116-1373

Flow Test Kit

$1127.99

$

Usually ships in 3-6 days

0
