LZE742GKC524A2 - Exmark 52" Lazer Z E-Series Zero-Turn Mower, Kohler CV742 (SN: 315000000 - 315999999) (2015) LH Hydro Assembly No. 126-1327 Parts Diagram

52" Lazer Z E-Series Zero-Turn Mower, Kohler CV742

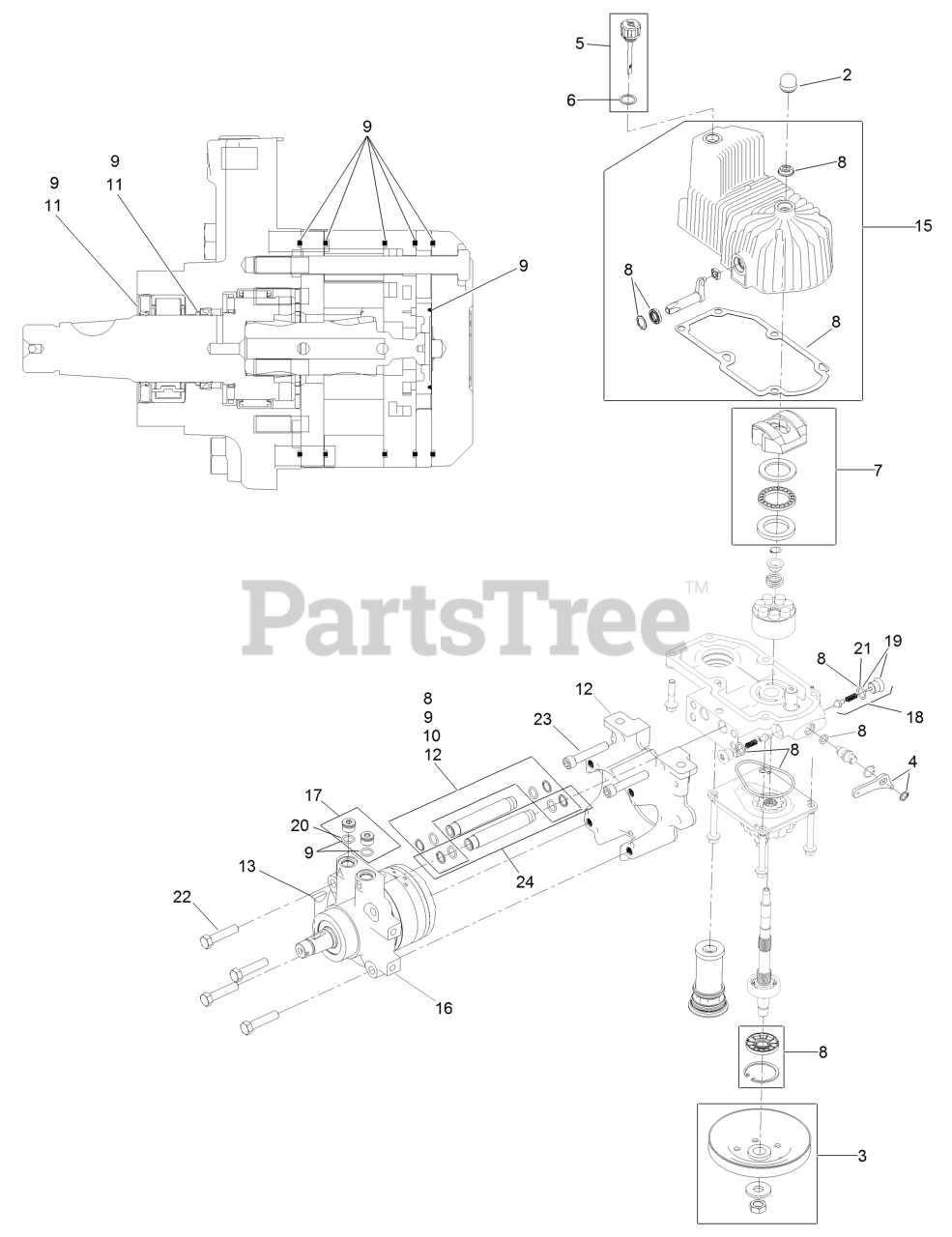

LH Hydro Assembly No. 126-1327 Parts Diagram

  • Title

2

Exmark 116-3052

COVER-SHAFT, HYDRO

$18.99

$

In Stock, only 3 left!

0

3

Exmark 116-0234

PULLEY KIT

$182.99

$

Usually ships in 3-6 days

0

4

Exmark 116-0235

HANDLE-BYPASS VALVE, HYDRO

$17.99

$

Usually ships in 3-6 days

0

5

Exmark 116-0236

DIPSTICK-HYDRO W/GASKET

$55.99

$

In Stock, Qty 20+

0

6

Exmark 116-0237

GASKET-DIPSTICK, HYDRO

$15.99

$

In Stock, only 2 left!

0

7

Exmark 116-1367

SWASH BLOCK KIT

$535.99

$

Usually ships in 3-6 days

0

8

Exmark 116-1368

PUMP SEAL KIT
(Superseded to 142-3604)

$161.99

$

In Stock, only 3 left!

0

9

Exmark 116-1369

MOTOR SEAL KIT

$284.99

$

Usually ships in 3-6 days

0

10

Exmark 116-1370

TUBE SEAL KIT

$33.99

$

In Stock, Qty 6

0

11

Exmark 116-1371

OUTPUT SHAFT SEAL KIT

$148.99

$

In Stock, only 1 left!

0

12

Exmark 116-5469

NOSE CUP-UHT

$313.99

$

In Stock, only 1 left!

0

13

Exmark 3257-42

KEY-WOODRUFF

$6.99

$

In Stock, Qty 20+

0

15

Exmark 116-3287

HOUSING-HYDRO, LH
(Superseded to 142-4460)

$786.99

$

Usually ships in 3-6 days

0

16

Exmark 116-8915

MOTOR-HYDRAULIC LH 240CC

$1793.99

$

In Stock, only 1 left!

0

17

Exmark 116-7901

MAGNETIC PLUGS SERVICE KIT

$115.99

$

Usually ships in 3-6 days

0

18

Exmark 116-1630

CHECK VALVE ASM
(Superseded to 142-3605)

$164.99

$

Usually ships in 3-6 days

0

19

Exmark 116-1631

PLUG-CHECK (W/O-RING)

$51.99

$

Usually ships in 3-6 days

0

20

Exmark 76-1900

O-RING

$4.99

$

Usually ships in 3-6 days

0

21

Exmark 116-8662

O-RING-CHECK VALVE

$2.99

$

Usually ships in 3-6 days

0

22

Exmark 116-8974

SCREW HH

$5.49

$

In Stock, Qty 20+

0

23

Exmark 116-8975

SCREW-HSH

$11.99

$

In Stock, Qty 7

0

24

Exmark 116-9922

HYDRAULIC TUBE KIT

$169.99

$

Usually ships in 3-6 days

0

99

Exmark 116-1373

FLOW TEST KIT

Note: Not illustrated

$1194.99

$

Usually ships in 3-6 days

0
