LZE740EKC60400 - Exmark 60" Lazer Z E-Series Zero-Turn Mower, Kohler ECV740 (SN: 404314159 - 406294344) (2019) LH Hydro Assembly No. 126-1323 Parts Diagram

60" Lazer Z E-Series Zero-Turn Mower, Kohler ECV740

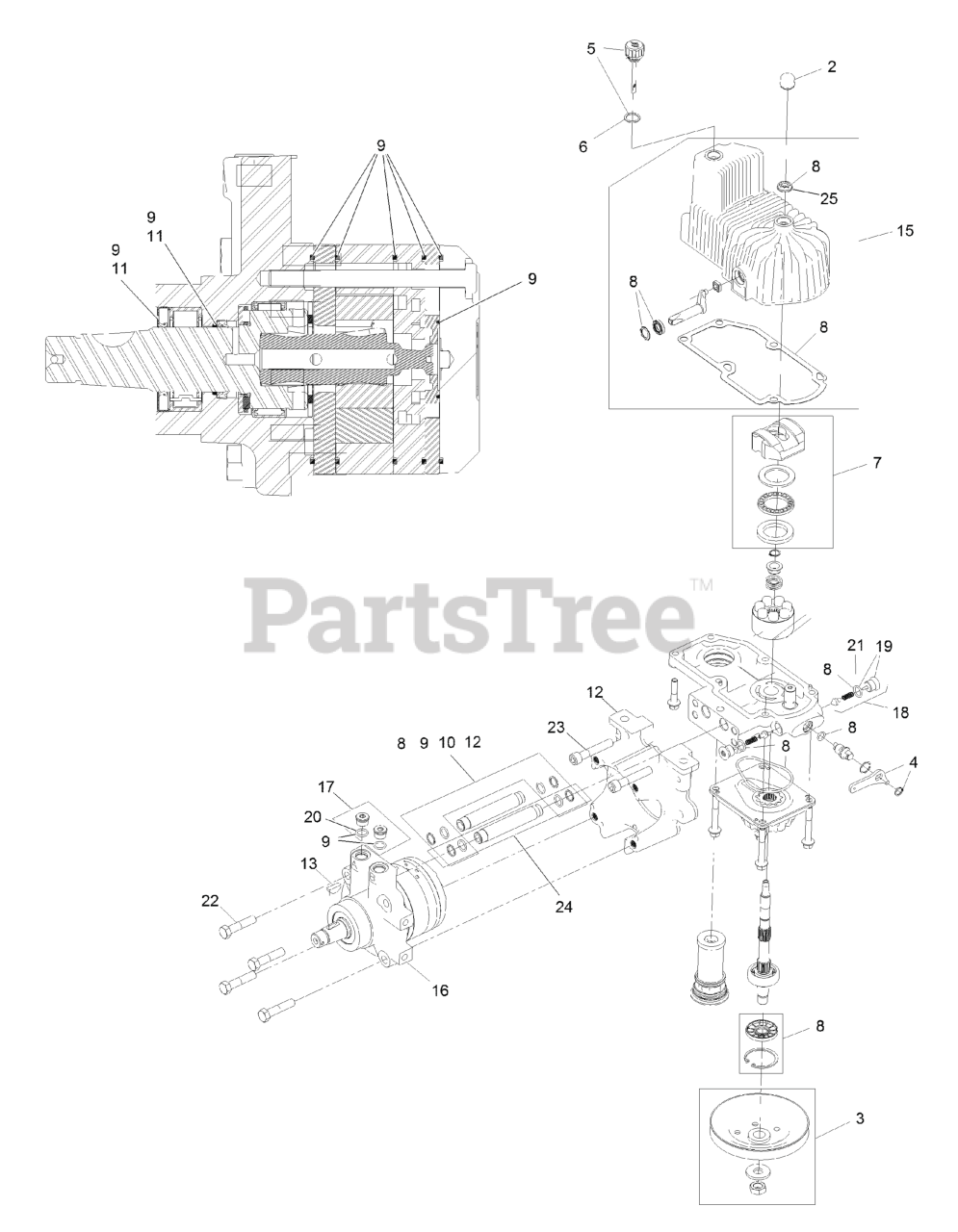

LH Hydro Assembly No. 126-1323 Parts Diagram

  • Title

2

Exmark 116-0233

FAN KIT

$

$

Not available

3

Exmark 116-0234

PULLEY KIT

$172.99

$

Usually ships in 3-6 days

0

4

Exmark 116-0235

HANDLE-BYPASS VALVE, HYDRO

$15.99

$

Usually ships in 3-6 days

0

5

Exmark 116-0236

DIPSTICK-HYDRO W/GASKET

$52.99

$

In Stock, only 4 left!

0

6

Exmark 116-0237

GASKET-DIPSTICK, HYDRO

$14.99

$

In Stock, only 2 left!

0

7

Exmark 116-1367

SWASH BLOCK KIT

$505.99

$

Usually ships in 3-6 days

0

8

Exmark 116-1368

PUMP SEAL KIT
(Superseded to 142-3604)

$152.99

$

In Stock, Qty 8

0

9

Exmark 116-1369

MOTOR SEAL KIT

$269.99

$

Usually ships in 3-6 days

0

10

Exmark 116-1370

TUBE SEAL KIT

$30.99

$

In Stock, Qty 5

0

11

Exmark 116-1371

OUTPUT SHAFT SEAL KIT

$139.99

$

In Stock, only 1 left!

0

12

Exmark 116-5469

NOSE CUP-UHT

$295.99

$

In Stock, only 1 left!

0

13

Exmark 3257-42

KEY-WOODRUFF

$6.49

$

In Stock, Qty 10

0

15

Exmark 116-3287

HOUSING-HYDRO, LH
(Superseded to 142-4460)

$742.99

$

Usually ships in 3-6 days

0

16

Exmark 116-8915

MOTOR-HYDRAULIC LH 240CC

$1692.99

$

Usually ships in 3-6 days

0

17

Exmark 116-7901

MAGNETIC PLUGS SERVICE KIT

$109.99

$

Usually ships in 3-6 days

0

18

Exmark 76-1900

O-RING

$4.99

$

Usually ships in 3-6 days

0

19

Exmark 116-8662

O-RING-CHECK VALVE

$2.99

$

In Stock, Qty 20+

0

20

Exmark 116-8974

SCREW HH

$5.49

$

In Stock, Qty 13

0

21

Exmark 116-8975

SCREW-HSH

$10.99

$

In Stock, only 2 left!

0

22

Exmark 116-9922

HYDRAULIC TUBE KIT

$159.99

$

Usually ships in 3-6 days

0

23

Exmark 126-7466

SHOCK VALVE, 12CC HYDRO

$103.99

$

Usually ships in 3-6 days

0

24

Exmark 126-7711

SEAL-FAN DRIVE

$22.99

$

In Stock, Qty 6

0

25

Exmark 135-6827

PULLER-PULLEY
(Superseded to 142-3609)

$1873.99

$

In Stock, only 1 left!

0

26

Exmark 135-6831

ROTATING KIT

$1216.99

$

Usually ships in 3-6 days

0

99

Exmark 116-1373

FLOW TEST KIT

Note: Not illustrated

$1127.99

$

Usually ships in 3-6 days

0

99

Exmark 116-4245

PULLER-PULLEY

Note: Not illustrated

$215.99

$

Usually ships in 3-6 days

0
