LZE740EKC60400 - Exmark 60" Lazer Z E-Series Zero-Turn Mower, Kohler ECV740 (SN: 402082300 - 404314158) (2018) Caster Wheel and Fork Assembly Parts Diagram

60" Lazer Z E-Series Zero-Turn Mower, Kohler ECV740

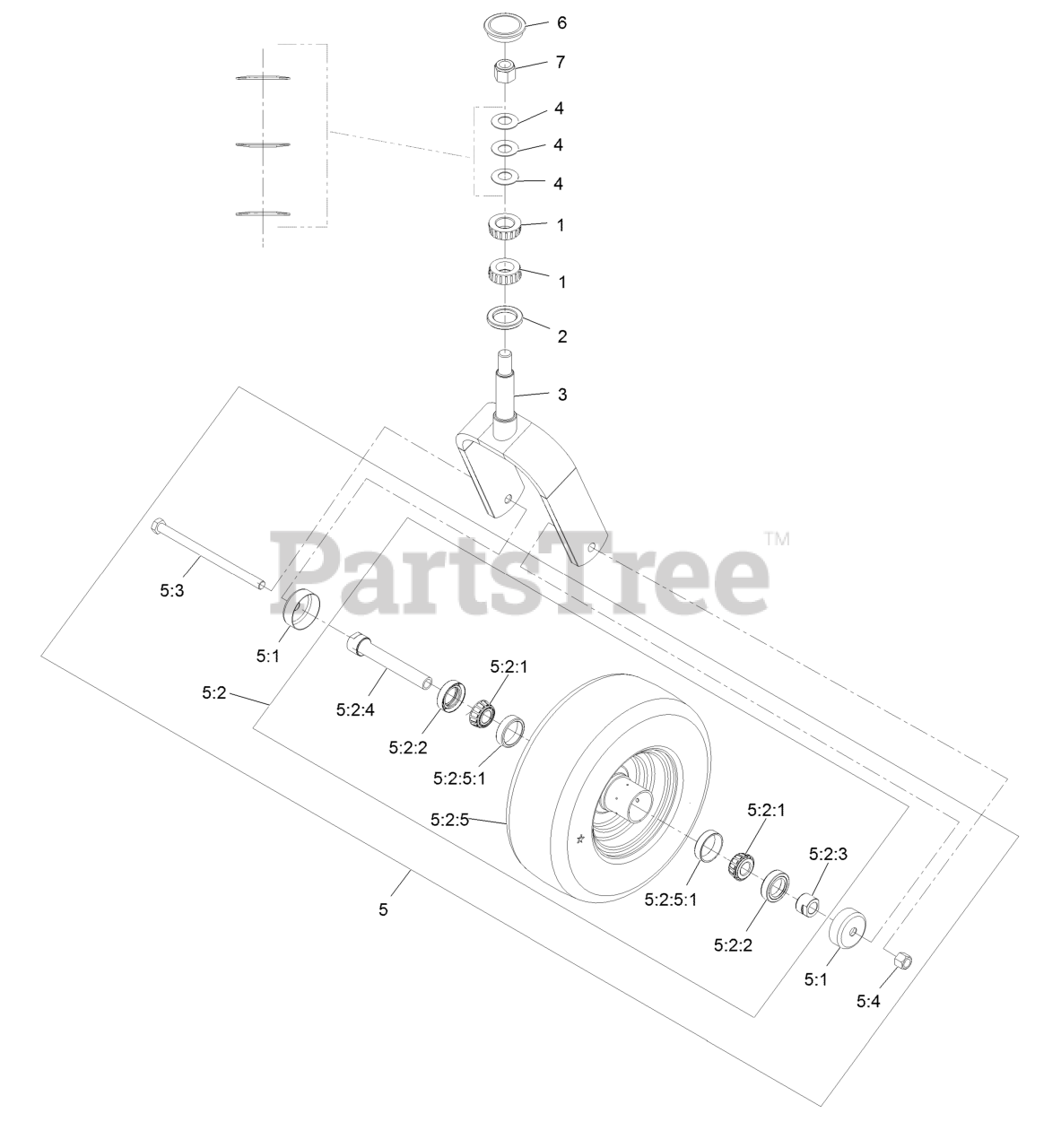

Caster Wheel and Fork Assembly Parts Diagram

  • Title

1

Exmark 1-543509

Cone-Bearing Tapered Roller

$13.99

$

In Stock, Qty 20+

0

2

Exmark 116-5647

Seal-Grease

$5.49

$

In Stock, Qty 20+

0

3

Exmark 116-6703-01

Weld, Fork

$131.99

$

In Stock, only 2 left!

0

4

Exmark 1-633508

Washer-Spring Disc

$3.49

$

In Stock, Qty 20+

0

5

Exmark 109-9126

Wheel & Tire ASM

$320.99

$

In Stock, only 4 left!

0

5:1

Exmark 103-2768

Guard-Seal

$3.99

$

In Stock, Qty 20+

0

5:2

Wheel And Tire ASM

$

$

Not available

5:2:1

Exmark 1-633585

Bearing-Cone Tapered Roller

$21.99

$

In Stock, Qty 12

0

5:2:2

Exmark 103-0063

Seal-Double Lip

$8.99

$

In Stock, Qty 6

0

5:2:3

Exmark 103-3051

Spacer-Nut

$9.49

$

In Stock, Qty 12

0

5:2:4

Exmark 126-5360

Axle-Caster

$15.99

$

In Stock, only 2 left!

0

5:2:5

Wheel And Tire ASM

$

$

Not available

5:2:5:1

Exmark 1-633584

Bearing-Cup

$9.49

$

In Stock, Qty 12

0

5:3

Exmark 325-42

Screw-HH 1/2-13 X 8

$14.99

$

In Stock, Qty 14

0

5:4

Exmark 3296-23

Nut-Nyloc 1/2-13

$1.49

$

In Stock, Qty 20+

0

6

Exmark 103-4882

Cap-Grease

$7.99

$

In Stock, Qty 20+

0

7

Exmark 3296-51

Nut-Nyloc 3/4-10

$6.49

$

In Stock, Qty 10

0
