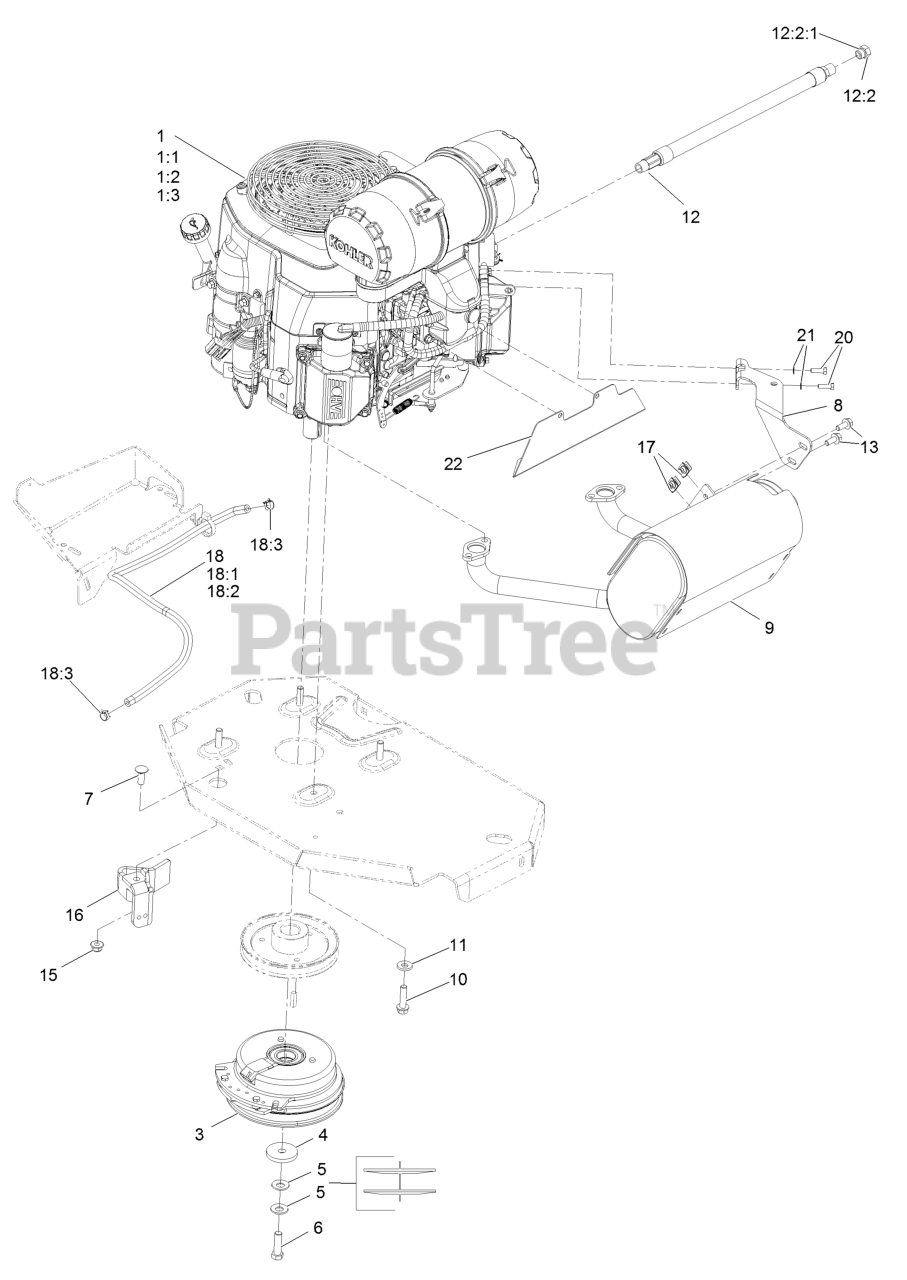

LZE732GKC524A2 - Exmark 52" Lazer Z E-Series Zero-Turn Mower, Kohler CV732 (SN: 400000000 - 402082299) (2017) Engine Assembly Parts Diagram

52" Lazer Z E-Series Zero-Turn Mower, Kohler CV732

Engine Assembly Parts Diagram

  • Title

1

Engine-Kohler Cv732

Note: Not serviced separately, Obtain parts from www.kohlerplus.com

$

$

Not available

1:1

Kohler 52 050 02-S Engine Oil Filter

Note: Not serviced separately, Obtain parts from www.kohlerplus.com

$

$

Not available

1:2

Kohler 25 083 01-S Engine Air Filter

Note: Not serviced separately, Obtain parts from www.kohlerplus.com

$

$

Not available

1:3

Kohler 25 083 04-S Safety Filter

Note: Not serviced separately, Obtain parts from www.kohlerplus.com

$

$

Not available

3

Exmark 116-1620

CLUTCH KIT

$359.99

$

In Stock, Qty 9

0

4

Exmark 109-6919

WASHER-CLUTCH

$5.49

$

In Stock, Qty 6

0

5

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

6

Exmark 109-9761

SCREW-HH 7/16-20 X 1 1/2 W/LOCTITE

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads

$5.49

$

In Stock, Qty 15

0

7

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

8

Exmark 116-4297

MUFFLER BRACKET KIT

$75.99

$

In Stock, only 1 left!

0

9

Exmark 126-8798

MUFFLER KIT

$392.99

$

In Stock, only 1 left!

0

10

Exmark 32144-102

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

11

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

12

Exmark 116-5316

OIL DRAIN HOSE ASM

Note: Torque to 17-23 ft-lb

$54.99

$

In Stock, Qty 14

0

12:2

Exmark 353-508

PLUG-HH

Note: Torque to 24-26 ft-lb

$8.49

$

In Stock, Qty 5

0

12:2:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

13

Exmark 3234-5

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

15

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

16

Exmark 116-2612-01

CLUTCH-ANCHOR

$55.99

$

In Stock, only 2 left!

0

17

Exmark 94-2413

NUT-U

$2.99

$

In Stock, Qty 20+

0

18

Exmark 126-1414

FUEL LINE ASM

$44.99

$

Usually ships in 3-6 days

0

18:1

Exmark 109-0286

HOSE-FUEL

$21.99

$

Usually ships in 3-6 days

0

18:2

Exmark 126-1417

SLEEVE-THERMAL

$35.99

$

Usually ships in 3-6 days

0

18:3

Exmark 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

20

Exmark 116-4295

SCREW-HH M6-1 X 20Mm W/Patch

$5.49

$

Usually ships in 3-6 days

0

21

Exmark 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 20+

0

22

Exmark 126-9895-03

SHIELD-HEAT, CARBURETOR

$19.99

$

Usually ships in 3-6 days

0
