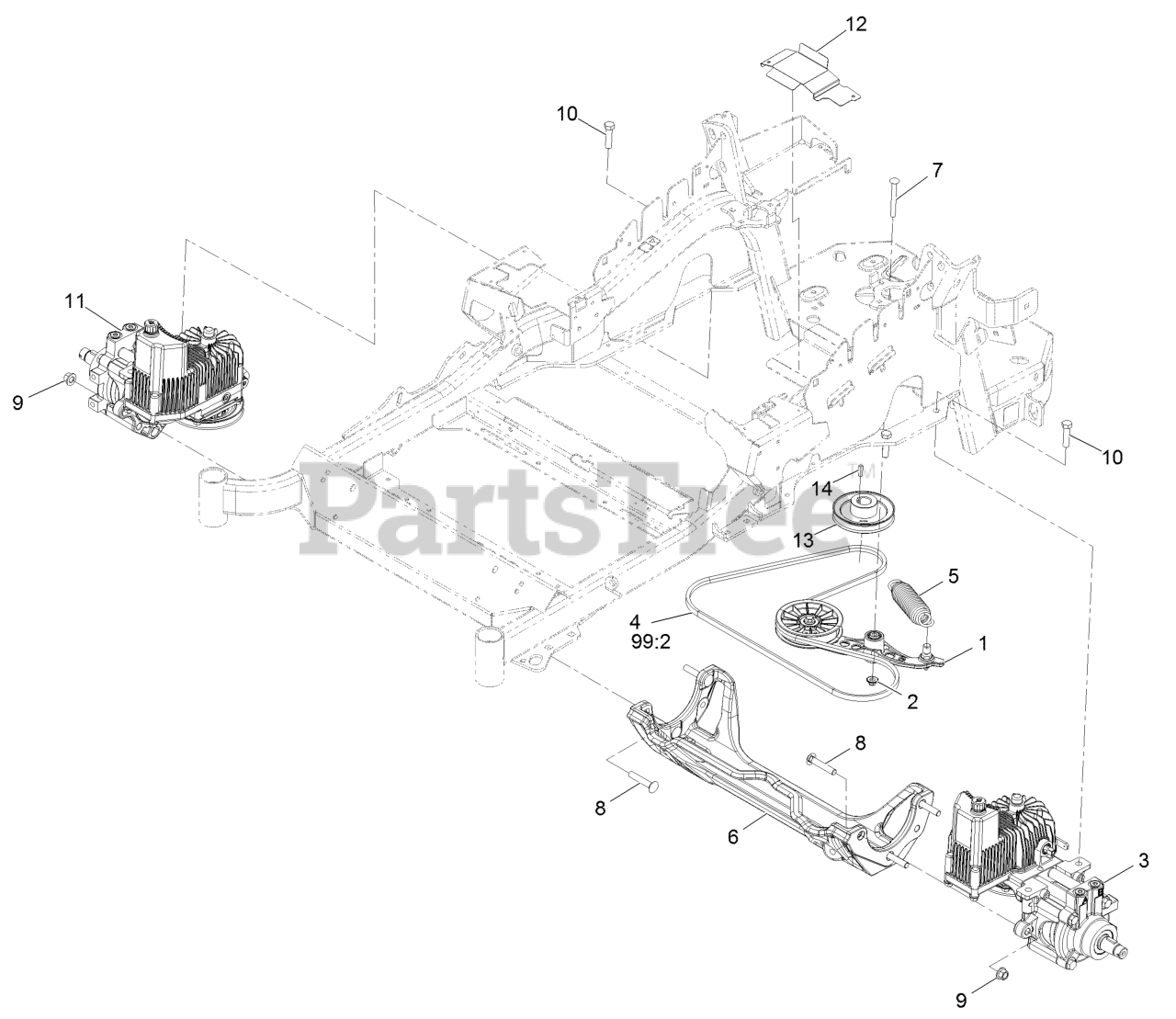

LZE732GKC524A2 - Exmark 52" Lazer Z E-Series Zero-Turn Mower, Kohler CV732 (SN: 316000000 - 399999999) (2016) Hydraulic Assembly Parts Diagram

52" Lazer Z E-Series Zero-Turn Mower, Kohler CV732

Hydraulic Assembly Parts Diagram

  • Title

1

Exmark 116-1255

PUMP IDLER ASM

$217.99

$

In Stock, only 4 left!

0

2

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

3

Exmark 126-1327

LH HYDRO ASM (12CC NO FAN
(Superseded to 135-7901)

$2947.99

$

Usually ships in 3-6 days

0

4

Exmark 116-1953

BELT-V
(Superseded to 116-1953-SL)

$44.99

$

Usually ships in 3-6 days

0

5

Exmark 116-6317

SPRING-EXTENSION

$28.99

$

In Stock, Qty 7

0

6

Exmark 116-7558

CRADLE-HYDRO

$206.99

$

Usually ships in 3-6 days

0

7

Exmark 116-1502

BOLT-SHOULDER, CARRIAGE 3/8-16 X 3 1/2

$7.99

$

In Stock, only 4 left!

0

8

Exmark 126-0095

SCREW-CARR

$2.99

$

In Stock, only 2 left!

0

9

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

10

Exmark 325-8

SCREW-HH

$5.49

$

In Stock, Qty 7

0

11

Exmark 126-1328

RH HYDRO ASM (12CC NO FAN
(Superseded to 135-7902)

$2947.99

$

Usually ships in 3-6 days

0

12

Exmark 116-2999-01

GUARD-BELT

$38.99

$

Usually ships in 3-6 days

0

13

Exmark 116-1946

SHEAVE-PUMP, DRIVE

$74.99

$

In Stock, only 1 left!

0

14

Exmark 1-807259

KEY

$2.99

$

In Stock, only 2 left!

0

99

Exmark 109-9828

BOTTLE-OIL, 32OZ HYDRAULIC

Note: Not illustrated

$18.99

$

In Stock, Qty 20+

0

99

Exmark 116-0164

FILTER-HYDRO

Note: Not illustrated

$70.99

$

In Stock, Qty 20+

0

99

Exmark 116-1218

Bottle,Oil 1 Gallon Hydraulic

Note: Not illustrated

$70.99

$

In Stock, Qty 14

0

99

Exmark 116-3282

126-8103
(Superseded to 126-8103)

Note: Not illustrated

$241.99

$

In Stock, Qty 8

0

99:1

Exmark 109-9828

BOTTLE-OIL, 32OZ HYDRAULIC

Note: Not illustrated

$18.99

$

In Stock, Qty 20+

0

99:2

Exmark 116-1953

BELT-V
(Superseded to 116-1953-SL)

$44.99

$

Usually ships in 3-6 days

0

99:3

Exmark 116-0164

FILTER-HYDRO

Note: Not illustrated

$70.99

$

In Stock, Qty 20+

0
