LZE730KA604SS - Exmark 60" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX730V (SN: 314000000 - 314999999) (2014) Seat Assembly Parts Diagram

60" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX730V

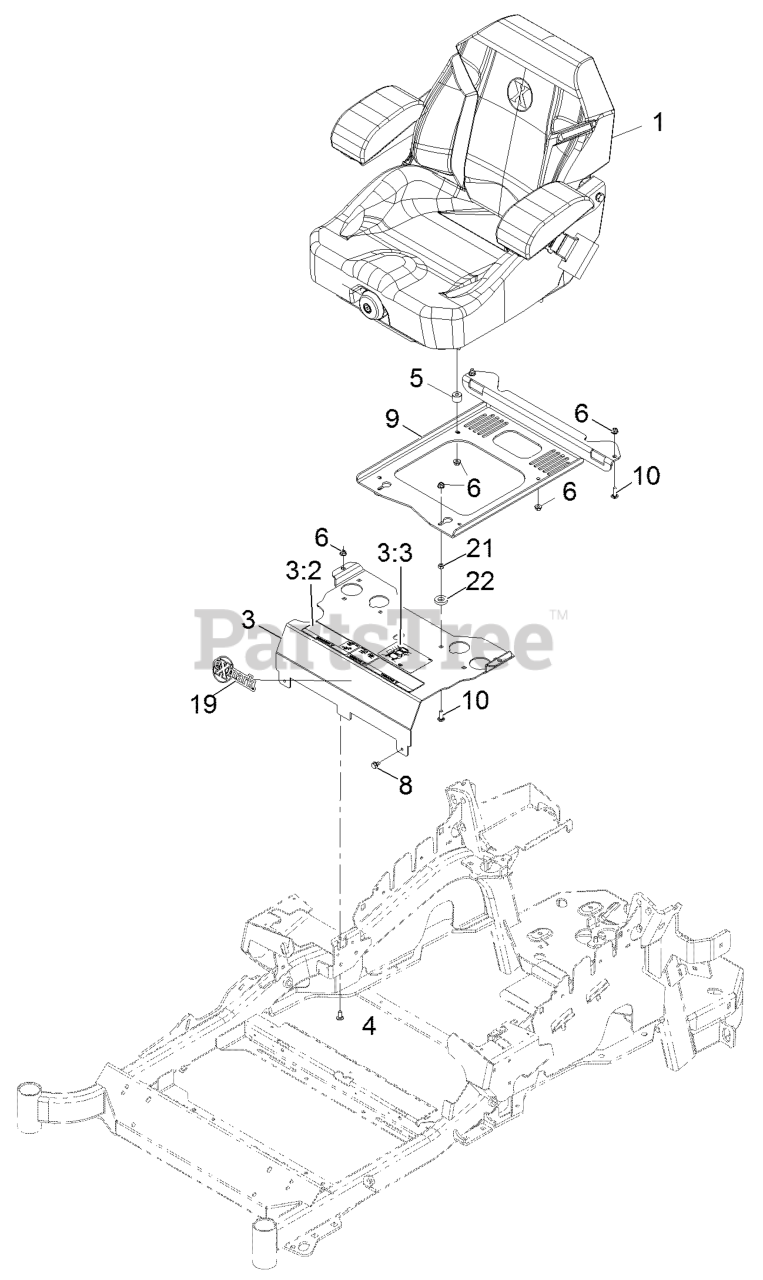

Seat Assembly Parts Diagram

  • Title

1

Exmark 116-8912

KIT-SUSPENSION SEAT

$1612.99

$

Usually ships in 3-6 days

0

3

Exmark 116-2323

MOUNT-SEAT

$241.99

$

Usually ships in 3-6 days

0

3:2

Exmark 109-7069

DECAL-CONSOLE

$17.99

$

In Stock, only 1 left!

0

3:3

Exmark 116-0211

DECAL-SERVICE AID

$12.99

$

In Stock, only 1 left!

0

4

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

5

Exmark 116-9329

SPACER

$11.99

$

In Stock, only 3 left!

0

6

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

8

Exmark 9266934

SCREW

$8.99

$

In Stock, only 2 left!

0

9

Exmark 116-0192-03

PLATE-SUPPORT, SEAT

$257.99

$

Usually ships in 3-6 days

0

10

Exmark 3230-22

SCREW-CARR
(Superseded to 3230-22)

$2.49

$

In Stock, only 2 left!

0

19

Exmark 103-2883

DECAL

$10.99

$

In Stock, Qty 9

0

21

Exmark 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

22

Exmark 1-323539

SPACER

$2.49

$

In Stock, Qty 20+

0
