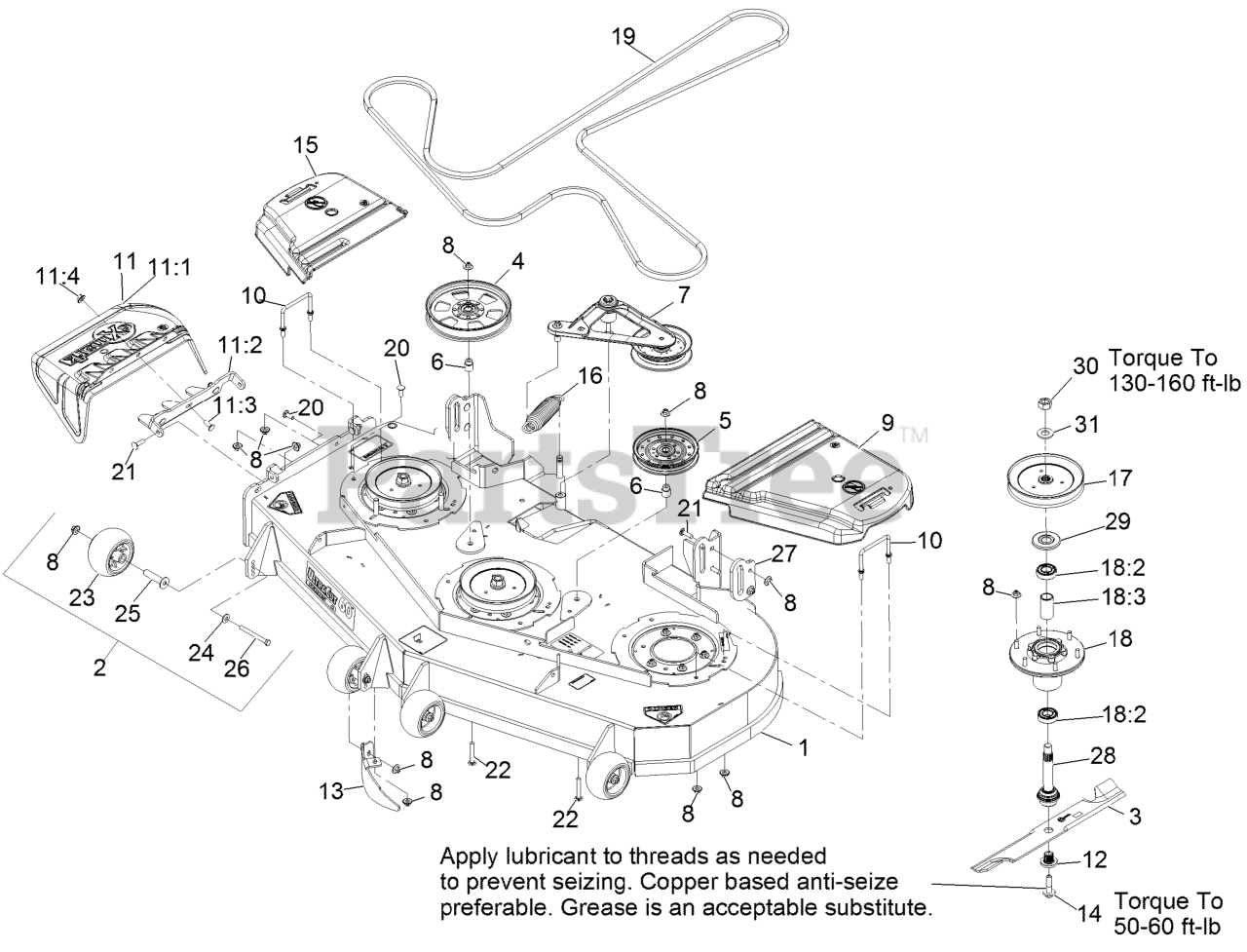

LZE730KA604 - Exmark 60" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX730V (SN: 314000000 - 314999999) (2014) Deck Assembly Parts Diagram

60" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX730V

Deck Assembly Parts Diagram

  • Title

1

Exmark 116-8432

DECK ASM, W/DECALS 604

$3296.99

$

Usually ships in 3-6 days

0

2

Exmark 116-9981

KIT, ANTI-SCALP ROLLER

$52.99

$

In Stock, Qty 20+

0

3

Exmark 116-5174

Blade-Extreme 2, 20.50"

$

$

Currently unavailable

3

Exmark 103-6403

103-6403-S
(Superseded to 103-6403-S)

$31.99

$

In Stock, Qty 20+

0

3

Exmark 103-6393

103-6393-S
(Superseded to 103-6393-S)

Note: Requires installation of mulch kit for proper mulching. See your Exmark dealer for details.

$30.99

$

In Stock, Qty 20+

0

3

Exmark 103-6388

103-6388-S
(Superseded to 103-6388-S)

$37.99

$

In Stock, Qty 20+

0

3

Exmark 103-6383

103-6383-S
(Superseded to 103-6383-S)

$34.99

$

In Stock, Qty 20+

0

4

Exmark 116-9639

PULLEY-IDLER, FLAT

$95.99

$

In Stock, Qty 20+

0

5

Exmark 116-4667

126-7685
(Superseded to 126-7685)

$62.99

$

In Stock, Qty 20+

0

6

Exmark 1-633456

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

0

7

Exmark 116-3755

DECK IDLER ASM

$254.99

$

In Stock, Qty 20+

0

8

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

9

Exmark 109-6938

COVER-BELT, LH

$96.99

$

In Stock, only 2 left!

0

10

Exmark 109-6982

WIREFORM-COVER

$11.99

$

In Stock, only 4 left!

0

11

Exmark 109-7188

ASM,DISCHARGE CHUTE

$104.99

$

In Stock, only 2 left!

0

11:1

Exmark 109-2738

CHUTE,DISCHARGE

$74.99

$

In Stock, Qty 20+

0

11:2

Exmark 109-8675-01

BRACKET,DISCHARGE CHUTE

$51.99

$

In Stock, only 1 left!

0

11:3

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

11:4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

12

Exmark 103-3037

BUSHING,SPLINED

$22.99

$

In Stock, Qty 20+

0

13

Exmark 116-5614-01

DOGLEG - LZ60

$60.99

$

Usually ships in 3-6 days

0

14

Exmark 109-9220

SCREW,SEMS 1/2-20 X 2.19

$8.49

$

In Stock, Qty 20+

0

15

Exmark 116-0094

COVER-BELT, RH

$86.99

$

In Stock, only 4 left!

0

16

Exmark 116-6317

SPRING-EXTENSION

$28.99

$

In Stock, Qty 7

0

17

Exmark 116-0676

SHEAVE,BLADE DRIVE 7.25

$68.99

$

In Stock, Qty 20+

0

18

Exmark 116-3344

ASM-CUTTER HSG WITH BEARINGS

$158.99

$

In Stock, Qty 20+

0

18:2

Exmark 116-0720

BEARING-BALL

$22.99

$

In Stock, Qty 20+

0

18:3

Exmark 116-3312

SPACER-BEARING

$9.49

$

In Stock, Qty 5

0

19

Exmark 109-8073

BELT,V-5V-198.75
(Superseded to 135-5774-SL)

$169.99

$

In Stock, Qty 17

0

20

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

21

Exmark 3231-28

Bolt-Carriage 3/8-16 X 1 1/4

$4.49

$

In Stock, Qty 20+

0

22

Exmark 3231-44

SCREW-CARR

$2.99

$

In Stock, Qty 15

0

23

Exmark 103-8415

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 20+

0

24

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

25

Exmark 116-8131

AXLE, ROLLER

$12.99

$

In Stock, Qty 12

0

26

Exmark 116-9362

SCREW-HH 3/8-16 X 3 3/4 GR 8

$2.99

$

In Stock, Qty 17

0

27

Exmark 116-8530-01

PLATE-REINF, PUSH TOWER

$20.99

$

In Stock, Qty 5

0

28

Exmark 116-3341

ASM-SPINDLE AND SEAL

$89.99

$

In Stock, Qty 20+

0

29

Exmark 116-1286

GUARD,BEARING TOP .989

$5.49

$

In Stock, Qty 9

0

30

Exmark 116-7306

NUT-HEX

$2.99

$

In Stock, Qty 9

0

31

Exmark 103-2802

WASHER

$5.49

$

In Stock, Qty 14

0
