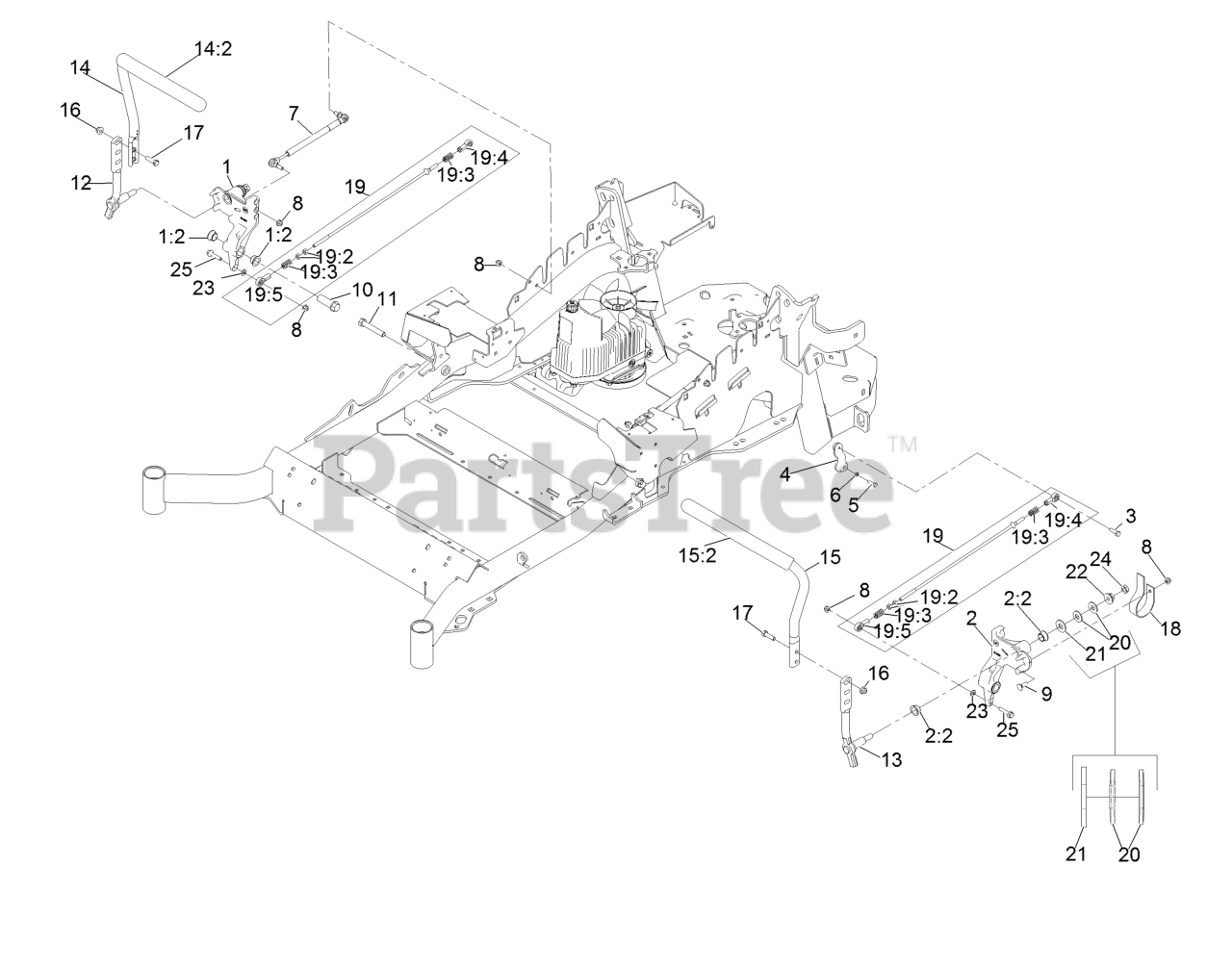

LZE730GKA524C2 - Exmark 52" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX (SN: 402082300 - 404314158) (2018) Motion Controls Assembly Parts Diagram

52" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX

Motion Controls Assembly Parts Diagram

  • Title

1

Exmark 116-0880

RH Motion Control And Bushing ASM

$59.99

$

In Stock, only 1 left!

0

1:2

Exmark 109-8054

Bushing-Flanged

$5.49

$

In Stock, Qty 20+

0

2

Exmark 116-0881

LH Motion Control And Bushing ASM

$59.99

$

In Stock, only 1 left!

0

2:2

Exmark 109-8054

Bushing-Flanged

$5.49

$

In Stock, Qty 20+

0

3

Exmark 116-0648

Screw-HH 5/16-18 X 1 W/Patch

$1.49

$

In Stock, Qty 20+

0

4

Exmark 109-4581

Arm-Control, Pump

$9.49

$

In Stock, only 4 left!

0

5

Exmark 9080046

Screw-HH 1/4-20 X 7/8

$5.49

$

In Stock, Qty 16

0

6

Exmark 1-303435

Washer-Spring Disc 1/4

$1.49

$

In Stock, Qty 20+

0

7

Exmark 116-0027

Damper-Control, Motion
(Superseded to 142-8117)

$103.99

$

Usually ships in 3-6 days

0

8

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 17

0

9

Exmark 3230-2

Bolt-Carriage 5/16-18 X 1

$1.49

$

In Stock, Qty 5

0

10

Exmark 109-5891

Hub-Threaded

$14.99

$

In Stock, only 2 left!

0

11

Exmark 325-12

Screw-HH 1/2-13 X 3

$6.49

$

In Stock, only 2 left!

0

12

Exmark 116-0039

Lever-Control Motion, RH

$53.99

$

In Stock, only 1 left!

0

13

Exmark 116-0040

Lever-Control Motion, LH

$53.99

$

In Stock, only 1 left!

0

14

Exmark 133-1839

RH Steering Handle ASM

$92.99

$

Usually ships in 3-6 days

0

14:2

Exmark 109-5668

Grip-Control, Lever

$14.99

$

In Stock, Qty 7

0

15

Exmark 133-1841

LH Steering Handle ASM

$92.99

$

Usually ships in 3-6 days

0

15:2

Exmark 109-5668

Grip-Control, Lever

$14.99

$

In Stock, Qty 7

0

16

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

17

Exmark 323-7

Screw-HH 3/8-16 X 1 1/4

$2.99

$

In Stock, Qty 20+

0

18

Exmark 109-5575

Spring-Leaf

$15.99

$

Usually ships in 3-6 days

0

19

Exmark 109-8107

Pump Linkage Rear ASM

$76.99

$

Usually ships in 3-6 days

0

19:2

Exmark 3219-2

Nut-Hex 5/16-24

$0.99

$

In Stock, Qty 11

0

19:3

Exmark 1-323245

Spring-Compression

$6.49

$

In Stock, only 2 left!

0

19:4

Exmark 1-633152

Balljoint

$20.99

$

In Stock, only 3 left!

0

19:5

Exmark 1-543017

Balljoint

$20.99

$

In Stock, only 4 left!

0

20

Exmark 109-9505

Washer, Spring Disc 1/2

$5.49

$

In Stock, only 4 left!

0

21

Exmark 3256-6

Washer

$0.99

$

In Stock, Qty 20+

0

22

Exmark 32128-56

Nut-Hex 1/2-13 Flange

$10.99

$

Usually ships in 3-6 days

0

23

Exmark 3256-23

Washer-5/16 SAE

$2.49

$

In Stock, Qty 20+

0

24

Exmark 3218-5

Nut-Jam 1/2-13

$1.49

$

In Stock, Qty 20+

0

25

Exmark 115-1794

Screw-Hex Flange 5/16-18 X 1 1/2

$1.99

$

In Stock, Qty 11

0
