LZE730GKA524C2 - Exmark 52" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX (SN: 400000000 - 402082299) (2017) Deck Assembly Parts Diagram

52" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX

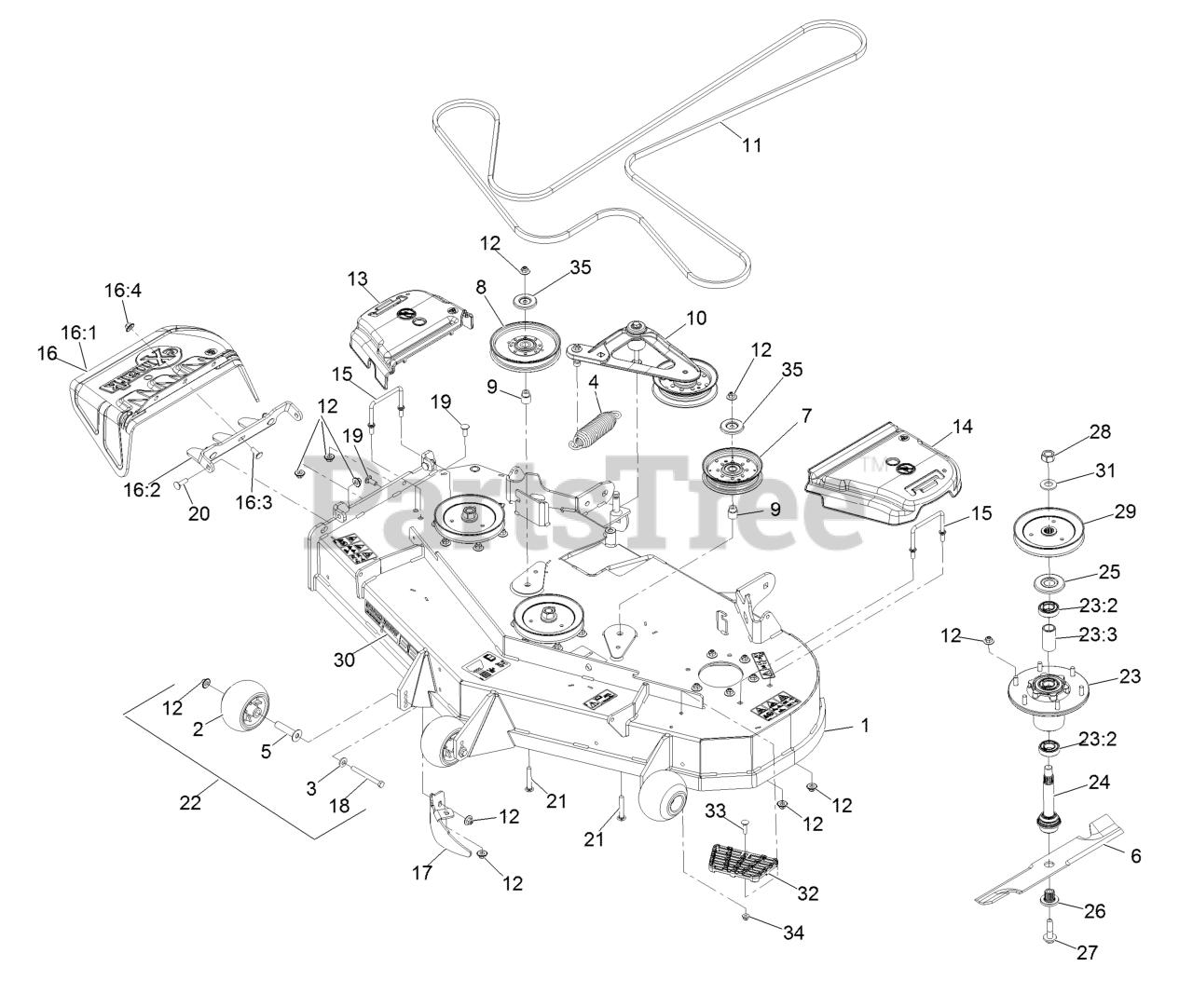

Deck Assembly Parts Diagram

  • Title

1

Exmark 109-9149

ASM,DECK W/ DECALS 52

$4085.99

$

Usually ships in 3-6 days

0

2

Exmark 103-8415

ROLLER-SCALP, ANTI

$26.99

$

In Stock, Qty 12

0

3

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

4

Exmark 116-6317

SPRING-EXTENSION

$27.99

$

In Stock, Qty 11

0

5

Exmark 116-8131

AXLE, ROLLER

$12.99

$

In Stock, Qty 5

0

6

Exmark 103-6382

103-6382-S
(Superseded to 103-6382-S)

$36.99

$

In Stock, only 4 left!

0

6

Exmark 103-6387

103-6387-S
(Superseded to 103-6387-S)

$31.99

$

In Stock, Qty 11

0

6

Exmark 103-6392

103-6392-S
(Superseded to 103-6392-S)

Note: Requires installation of mulch kit for proper mulching. See your Exmark dealer for details.

$30.99

$

In Stock, Qty 20+

0

6

Exmark 103-6402

103-6402-S
(Superseded to 103-6402-S)

$30.99

$

In Stock, Qty 20+

0

6

Exmark 116-5175

116-5175-S
(Superseded to 116-5175-S)

$30.99

$

In Stock, only 4 left!

0

7

Exmark 126-9187

PULLEY-IDLER, FLAT

$62.99

$

In Stock, Qty 19

0

8

Exmark 126-7685

IDLER-PULLEY

$63.99

$

In Stock, Qty 16

0

9

Exmark 1-633456

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

0

10

Exmark 116-3755

DECK IDLER ASM

$254.99

$

In Stock, only 2 left!

0

11

Exmark 109-4994

BELT,V-B X 186.00"
(Superseded to 135-5776-SL)

$152.99

$

In Stock, Qty 17

0

12

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, only 3 left!

0

13

Exmark 109-6935

COVER-BELT, RH

$37.99

$

In Stock, only 1 left!

0

14

Exmark 109-6936

COVER-BELT, LH

$37.99

$

In Stock, only 1 left!

0

15

Exmark 109-6982

WIREFORM-COVER

$11.99

$

In Stock, only 4 left!

0

16

Exmark 109-7188

ASM,DISCHARGE CHUTE

$104.99

$

In Stock, only 2 left!

0

16:1

Exmark 109-2738

CHUTE,DISCHARGE

$74.99

$

In Stock, Qty 7

0

16:2

Exmark 109-8675-01

BRACKET,DISCHARGE CHUTE

$51.99

$

In Stock, only 1 left!

0

16:3

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

16:4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, only 3 left!

0

17

Exmark 116-5814-01

BAFFLE-DOGLEG, LZ-VT52

$62.99

$

Usually ships in 3-6 days

0

18

Exmark 116-9362

SCREW-HH 3/8-16 X 3 3/4 GR 8

$2.99

$

In Stock, Qty 20+

0

19

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

20

Exmark 3231-28

Bolt-Carriage 3/8-16 X 1 1/4

$4.49

$

In Stock, Qty 20+

0

21

Exmark 3231-44

SCREW-CARR

$2.99

$

In Stock, Qty 18

0

22

Exmark 116-9981

KIT, ANTI-SCALP ROLLER

$53.99

$

In Stock, Qty 20+

0

23

Exmark 116-3344

ASM-CUTTER HSG WITH BEARINGS

$167.99

$

In Stock, Qty 20+

0

23:2

Exmark 116-0720

BEARING-BALL

$22.99

$

Usually ships in 3-6 days

0

23:3

Exmark 116-3312

SPACER-BEARING

$9.99

$

In Stock, Qty 6

0

24

Exmark 116-3341

ASM-SPINDLE AND SEAL

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize) to spindle shaft

$89.99

$

In Stock, Qty 16

0

25

Exmark 116-1286

GUARD,BEARING TOP .989

$5.99

$

In Stock, Qty 10

0

26

Exmark 103-3037

BUSHING,SPLINED

$23.99

$

In Stock, Qty 20+

0

27

Exmark 109-9220

SCREW,SEMS 1/2-20 X 2.19

Note: Torque to 50-60 ft-lb, Apply lubricant to threads as needed to prevent seizing. Copper based anti-seize preferable. Grease is an acceptable substitute.

$8.49

$

In Stock, Qty 20+

0

28

Exmark 116-7306

NUT-HEX

$2.99

$

In Stock, Qty 11

0

29

Exmark 116-0675

SHEAVE,BLADE DRIVE 6.50

$92.99

$

In Stock, Qty 7

0

30

Exmark 126-6588

DECAL, 524

$8.99

$

In Stock, only 3 left!

0

31

Exmark 103-2802

WASHER

$5.49

$

In Stock, Qty 16

0

32

Exmark 126-4781-03

STEP-DECK

$26.99

$

Usually ships in 3-6 days

0

33

Exmark 3230-3

Bolt-Carriage 5/16-18 X 1 1/4

$1.49

$

In Stock, Qty 20+

0

34

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

35

Exmark 126-8043

SHIELD-DUST

$2.99

$

In Stock, only 3 left!

0
