LZE730GKA524B2 - Exmark 52" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX (SN: 316000000 - 399999999) (2016) Deck Assembly Parts Diagram

52" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX

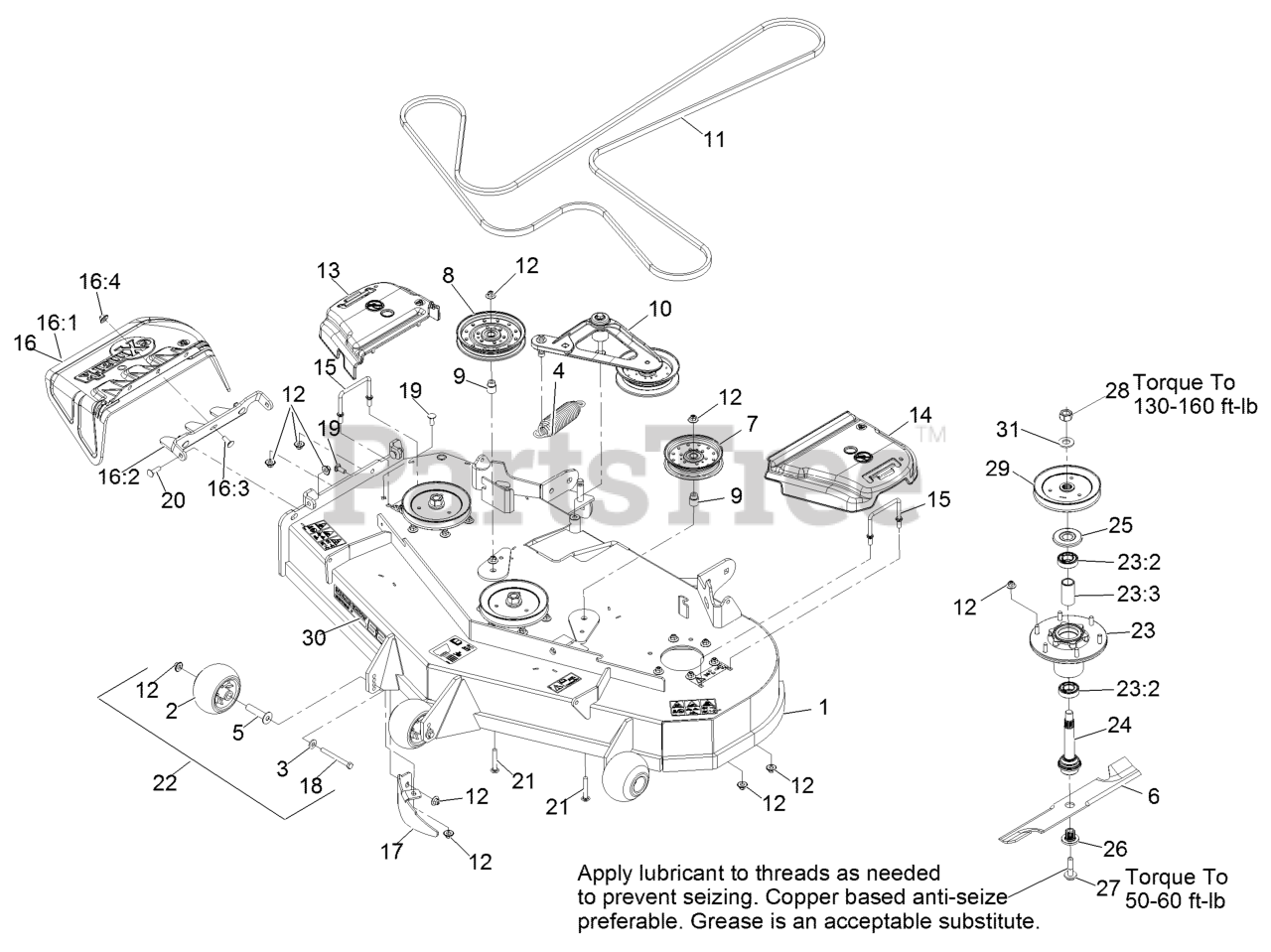

Deck Assembly Parts Diagram

  • Title

1

Exmark 109-9149

ASM,DECK W/ DECALS 52

$4085.99

$

Usually ships in 3-6 days

0

2

Exmark 103-8415

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 5

0

3

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

4

Exmark 116-6317

SPRING-EXTENSION

$28.99

$

In Stock, Qty 7

0

5

Exmark 116-8131

AXLE, ROLLER

$12.99

$

In Stock, Qty 12

0

6

Exmark 103-6382

103-6382-S
(Superseded to 103-6382-S)

$36.99

$

In Stock, only 4 left!

0

6

Exmark 103-6387

103-6387-S
(Superseded to 103-6387-S)

$31.99

$

In Stock, Qty 11

0

6

Exmark 103-6392

103-6392-S
(Superseded to 103-6392-S)

Note: Requires installation of mulch kit for proper mulching. See your Exmark dealer for details.

$30.99

$

In Stock, Qty 20+

0

6

Exmark 103-6402

103-6402-S
(Superseded to 103-6402-S)

$30.99

$

In Stock, Qty 20+

0

6

Exmark 116-5175

116-5175-S
(Superseded to 116-5175-S)

$30.99

$

In Stock, only 1 left!

0

7

Exmark 116-4665

126-9187
(Superseded to 126-9187)

$60.99

$

In Stock, Qty 19

0

8

Exmark 116-4667

126-7685
(Superseded to 126-7685)

$62.99

$

In Stock, Qty 7

0

9

Exmark 1-633456

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

0

10

Exmark 116-3755

DECK IDLER ASM

$254.99

$

Usually ships in 3-6 days

0

11

Exmark 109-4994

BELT,V-B X 186.00"
(Superseded to 135-5776-SL)

$152.99

$

In Stock, Qty 16

0

12

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

13

Exmark 109-6935

COVER-BELT, RH

$38.99

$

In Stock, only 1 left!

0

14

Exmark 109-6936

COVER-BELT, LH

$38.99

$

In Stock, only 1 left!

0

15

Exmark 109-6982

WIREFORM-COVER

$11.99

$

In Stock, only 4 left!

0

16

Exmark 109-7188

ASM,DISCHARGE CHUTE

$104.99

$

In Stock, only 2 left!

0

16:1

Exmark 109-2738

CHUTE,DISCHARGE

$74.99

$

In Stock, Qty 7

0

16:2

Exmark 109-8675-01

BRACKET,DISCHARGE CHUTE

$51.99

$

In Stock, only 1 left!

0

16:3

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

16:4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

17

Exmark 116-5814-01

BAFFLE-DOGLEG, LZ-VT52

$62.99

$

Usually ships in 3-6 days

0

18

Exmark 116-9362

SCREW-HH 3/8-16 X 3 3/4 GR 8

$2.99

$

In Stock, Qty 17

0

19

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

20

Exmark 3231-28

Bolt-Carriage 3/8-16 X 1 1/4

$4.49

$

In Stock, Qty 20+

0

21

Exmark 3231-44

SCREW-CARR

$2.99

$

In Stock, only 3 left!

0

22

Exmark 116-9981

KIT, ANTI-SCALP ROLLER

$52.99

$

In Stock, Qty 20+

0

23

Exmark 116-3344

ASM-CUTTER HSG WITH BEARINGS

$158.99

$

In Stock, Qty 20+

0

23:2

Exmark 116-0720

BEARING-BALL

$22.99

$

In Stock, Qty 10

0

23:3

Exmark 116-3312

SPACER-BEARING

$9.49

$

In Stock, Qty 5

0

24

Exmark 116-3341

ASM-SPINDLE AND SEAL

$89.99

$

In Stock, Qty 9

0

25

Exmark 116-1286

GUARD,BEARING TOP .989

$5.49

$

In Stock, Qty 9

0

26

Exmark 103-3037

BUSHING,SPLINED

$22.99

$

In Stock, Qty 20+

0

27

Exmark 109-9220

SCREW,SEMS 1/2-20 X 2.19

$8.49

$

In Stock, Qty 20+

0

28

Exmark 116-7306

NUT-HEX

$2.99

$

In Stock, Qty 9

0

29

Exmark 116-0675

SHEAVE,BLADE DRIVE 6.50

$92.99

$

In Stock, only 2 left!

0

30

Exmark 126-6588

DECAL, 524

$8.99

$

In Stock, only 3 left!

0

31

Exmark 103-2802

WASHER

$5.49

$

In Stock, Qty 14

0
