LZE730EKC604 - Exmark 60" Lazer Z E-Series Zero-Turn Mower, Kohler (SN: 312000000 - 312999999) (2012) Rear Wheel and Park Brake Assembly Parts Diagram

60" Lazer Z E-Series Zero-Turn Mower, Kohler

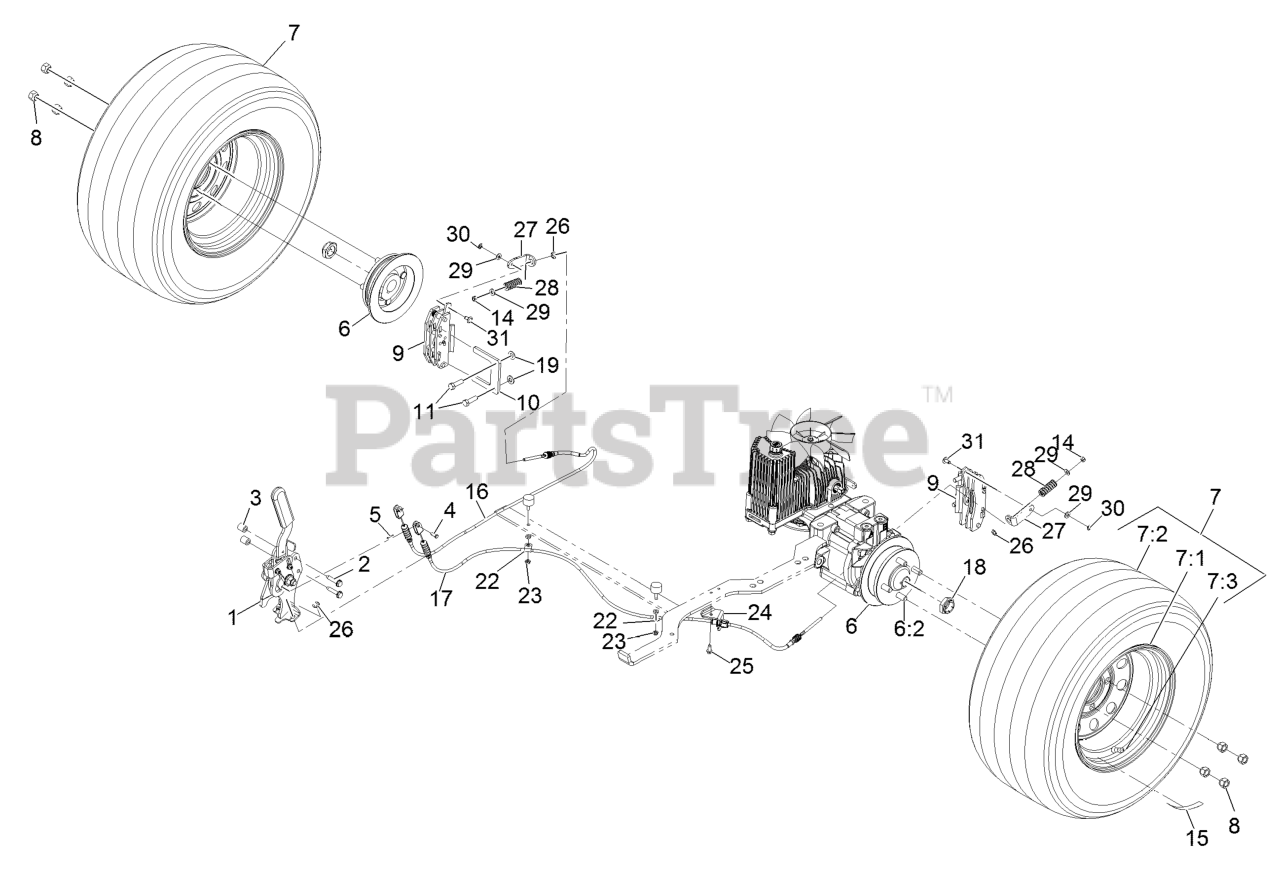

Rear Wheel and Park Brake Assembly Parts Diagram

  • Title

1

Exmark 116-7551

BRAKE HANDLE ASM

$306.99

$

Usually ships in 3-6 days

0

2

Exmark 32144-57

SCREW

$2.49

$

In Stock, Qty 20+

0

3

Exmark 82-6840

SPACER

$7.49

$

In Stock, only 4 left!

0

4

Exmark 60-1730

PIN-CLEVIS

$5.49

$

In Stock, Qty 12

0

5

Exmark 3272-1

PIN-COTTER

$0.99

$

In Stock, Qty 16

0

6

Exmark 116-1746

WHEEL HUB ASM
(Superseded to 142-2701)

$114.99

$

In Stock, Qty 15

0

6:2

Exmark 116-1696

STUD-WHEEL

$3.99

$

In Stock, Qty 20+

0

7

Asm-Wheel And Tire

Note: Not serviced separately

$

$

Not available

7:1

Exmark 116-8295

ASM-RIM 60

$171.99

$

In Stock, Qty 20+

0

7:2

Exmark 116-8296

TIRE-DRIVE

$280.99

$

Usually ships in 3-6 days

0

7:3

Exmark 232-27

Stem-Valve

$

$

Not available

8

Exmark 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, only 4 left!

0

9

Exmark 109-2889

CALIPER-BRAKE

$184.99

$

In Stock, only 2 left!

0

10

Exmark 109-0958

PLATE-MOUNT, BRAKE

$15.99

$

In Stock, Qty 8

0

11

Exmark 92-5727

SCREW-LOCK, PATCH

$3.99

$

In Stock, Qty 19

0

14

Exmark 3296-13

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

15

Exmark 116-2643

126-2055
(Superseded to 126-2055)

$6.49

$

In Stock, Qty 11

0

16

Exmark 116-6364

116-9469
(Superseded to 116-9469)

$98.99

$

In Stock, only 4 left!

0

17

Exmark 116-6365

116-8963
(Superseded to 116-8963)

$85.99

$

In Stock, Qty 8

0

18

Exmark 116-1399

LOCKNUT

$14.99

$

In Stock, only 1 left!

0

19

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Exmark 88-7970

CLIP

$4.99

$

In Stock, Qty 6

0

23

Exmark 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

24

Exmark 116-6397

BRACKET-CABLE

$7.99

$

In Stock, only 3 left!

0

25

Exmark 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 15

0

26

Exmark 32120-18

E-RING

$1.49

$

In Stock, Qty 20+

0

27

Exmark 116-6182

BRACKET-BRAKE, L

$19.99

$

In Stock, Qty 9

0

28

Exmark 116-6347

SPRING-DIE

$18.99

$

In Stock, only 3 left!

0

29

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

30

Exmark 32151-86

E-RING

$2.99

$

In Stock, Qty 20+

0

31

Exmark 116-6348

PIN-BRAKE

$2.99

$

In Stock, Qty 20+

0
