LZE691KA524L - Exmark 52" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX691V (SN: 312000000 - 312999999) (2012) Height-of-Cut Assembly No. 109-7438 Parts Diagram
52" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX691V

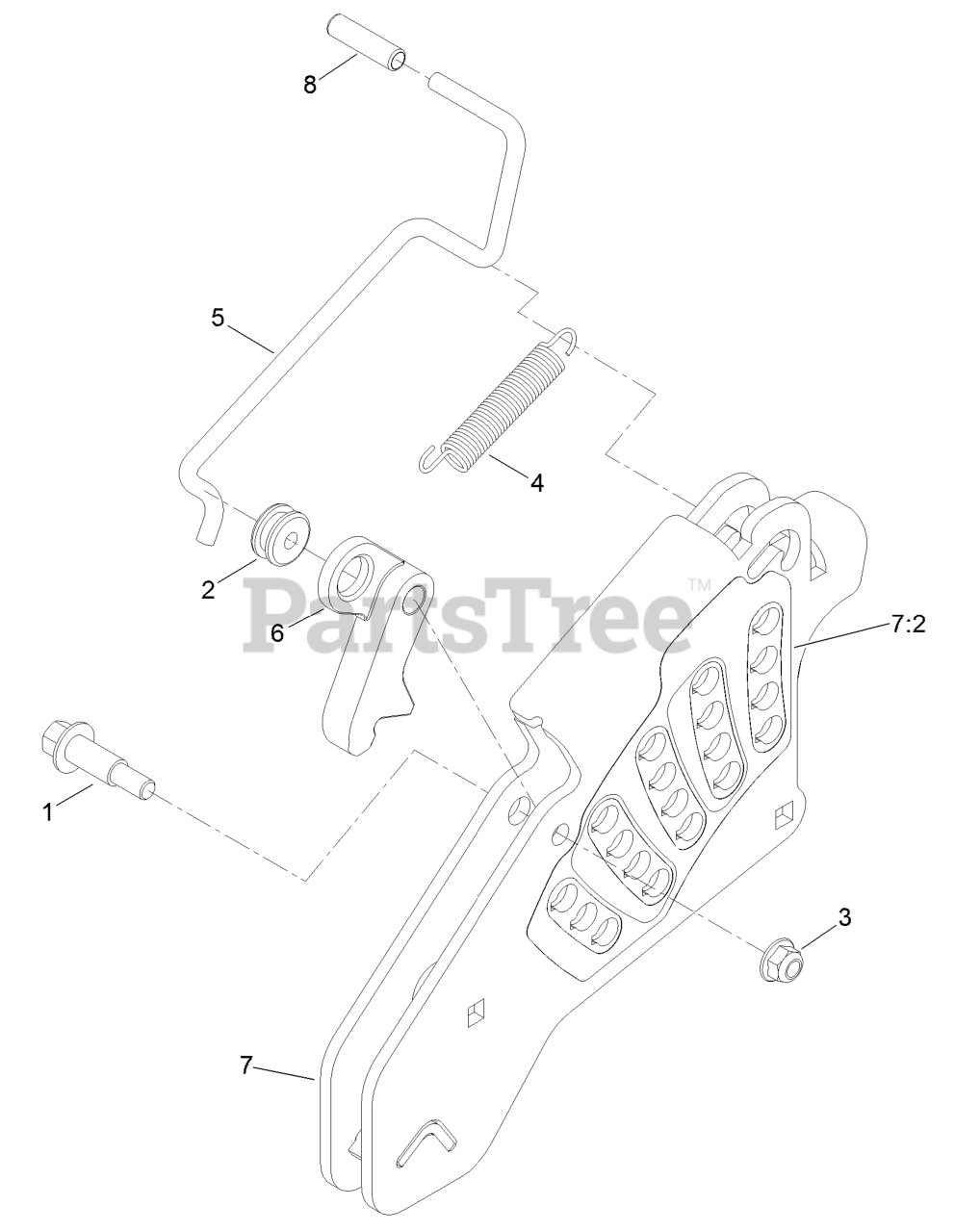

Height-of-Cut Assembly No. 109-7438 Parts Diagram
Exmark 62-1330
BOLT-SHOULDER
$11.99
$
In Stock, only 1 left!
Exmark 109-7130
GROMMET
$2.99
$
Usually ships in 3-6 days
Exmark 104-8301
NUT-HF, NI
$1.49
$
In Stock, Qty 20+
Exmark 109-7124
SPRING-EXTENSION
$7.99
$
Usually ships in 3-6 days
Exmark 109-7128
ROD-LOCK, TRANSPORT
$10.99
$
Usually ships in 3-6 days
Exmark 116-0118
PAWL-TRANSPORT, HOC
$27.99
$
Usually ships in 3-6 days
Exmark 109-7335
HOC PLATE ASM
$226.99
$
Usually ships in 3-6 days
Exmark 116-0752
DECAL-HOC
$19.99
$
Usually ships in 3-6 days
Exmark 109-8250
GRIP-LEVER
$1.99
$
In Stock, only 4 left!
