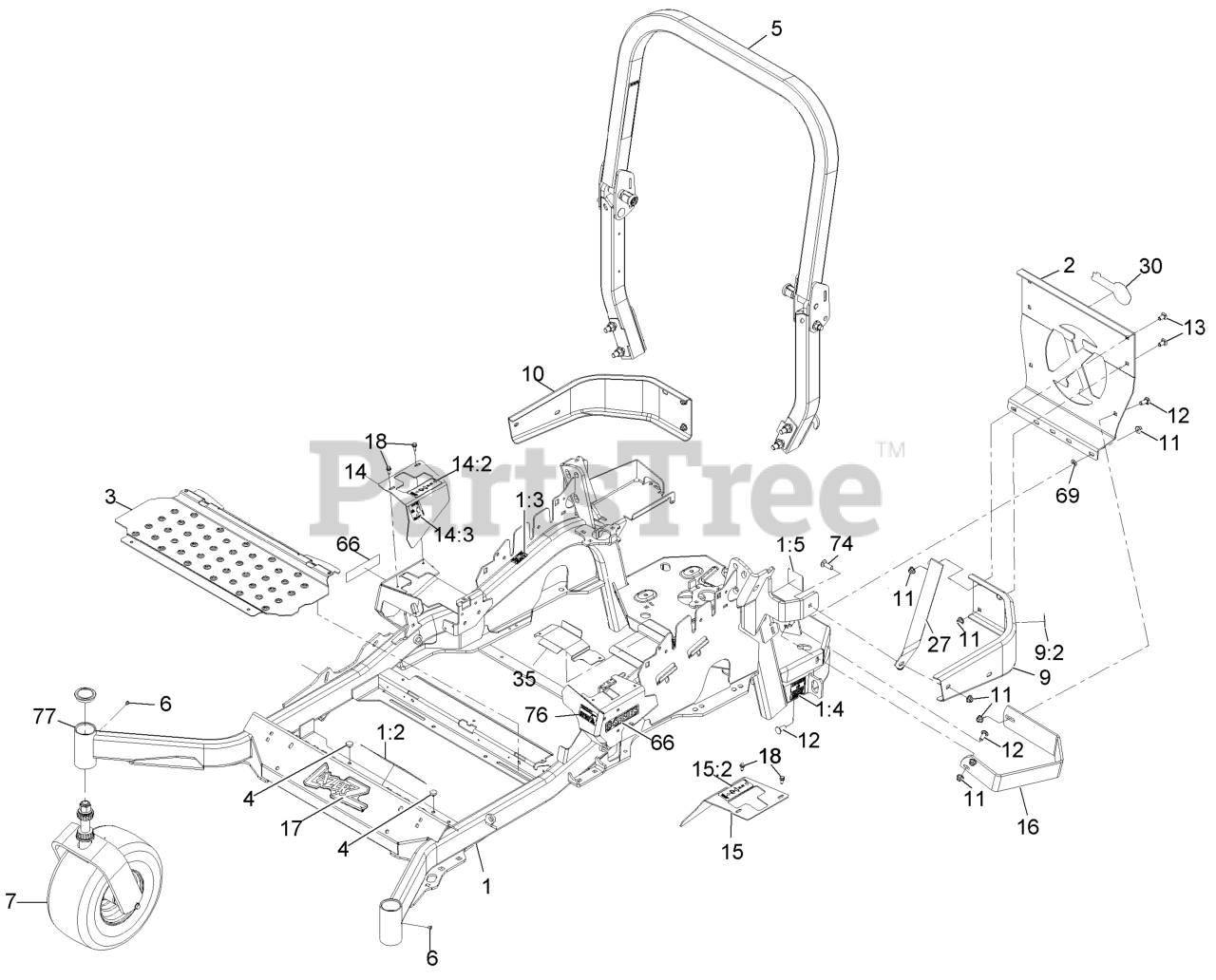

LZE691KA524 - Exmark 52" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX691V (SN: 314000000 - 314999999) (2014) Main Frame Assembly Parts Diagram

52" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX691V

Main Frame Assembly Parts Diagram

  • Title
1

Exmark 116-5900

MAINFRAME ASM
(Superseded to 142-7272)

$3342.99

$

Usually ships in 3-6 days

0

1:2

Exmark 116-3303

DECAL-SLOPE

$17.99

$

Usually ships in 3-6 days

0

1:3

Exmark 103-2076

DECAL-CAUTION

$6.49

$

In Stock, only 1 left!

0

1:4

Exmark 116-0205

DECAL-BELT DRIVE

$8.49

$

Usually ships in 3-6 days

0

1:5

Exmark 116-4858

DECAL-SPARK ARRESTER

$3.49

$

In Stock, only 1 left!

0

2

Exmark 109-8863-03

PLATE,REAR GUARD

$181.99

$

Usually ships in 3-6 days

0

3

$108.99

$

Usually ships in 3-6 days

0

4

$6.49

$

In Stock, Qty 9

0

5

Exmark 116-2882

ROPS ASM

$446.99

$

Usually ships in 3-6 days

0

$5.49

$

In Stock, Qty 11

0

7

Front Caster And Fork Asm

Note: Not serviced separately

$

$

Not available

9

Exmark 116-0180

LH BUMPER ASM

$148.99

$

Usually ships in 3-6 days

0

9:2

Exmark 103-2076

DECAL-CAUTION

$6.49

$

In Stock, only 1 left!

0

10

Exmark 116-0057-03

BUMPER-RH

$220.99

$

In Stock, only 1 left!

0

11

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

13

Exmark 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0

14

Exmark 116-5899

RH MOTION CONTROL COVER ASM

$49.99

$

Usually ships in 3-6 days

0

14:2

Exmark 109-7232

DECAL-MOTION CONTROL

$5.49

$

In Stock, only 3 left!

0

14:3

Exmark 116-5944

DECAL-PARK BRAKE

$14.99

$

In Stock, Qty 14

0

15

Exmark 116-0580

LH MOTION CONTROL COVER ASM

$28.99

$

Usually ships in 3-6 days

0

15:2

Exmark 109-7232

DECAL-MOTION CONTROL

$5.49

$

In Stock, only 3 left!

0

16

Exmark 126-2067-03

GUARD-MUFFLER

$60.99

$

Usually ships in 3-6 days

0

17

Exmark 103-3113

DECAL,LAZER MODEL

$11.99

$

In Stock, Qty 8

0

18

Exmark 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 15

0

$72.99

$

Usually ships in 3-6 days

0

30

$10.99

$

In Stock, Qty 9

0

35

Exmark 116-2999-01

GUARD-BELT

$38.99

$

Usually ships in 3-6 days

0

66

Exmark 116-3885

DECAL-E-SERIES

$7.99

$

In Stock, Qty 6

0

69

Exmark 107-3154

NUT-PUSH

$1.49

$

In Stock, Qty 6

0

74

Exmark 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

76

Exmark 116-1654

DECAL-FUEL FILL

$5.49

$

Usually ships in 3-6 days

0

77

Exmark 1-543508

CUP-BEARING

$7.99

$

In Stock, Qty 15

0
