LZE691KA524 - Exmark 52" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX691V (SN: 312000000 - 312999999) (2012) Height-of-Cut Assembly No. 116-1970 Parts Diagram

52" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX691V

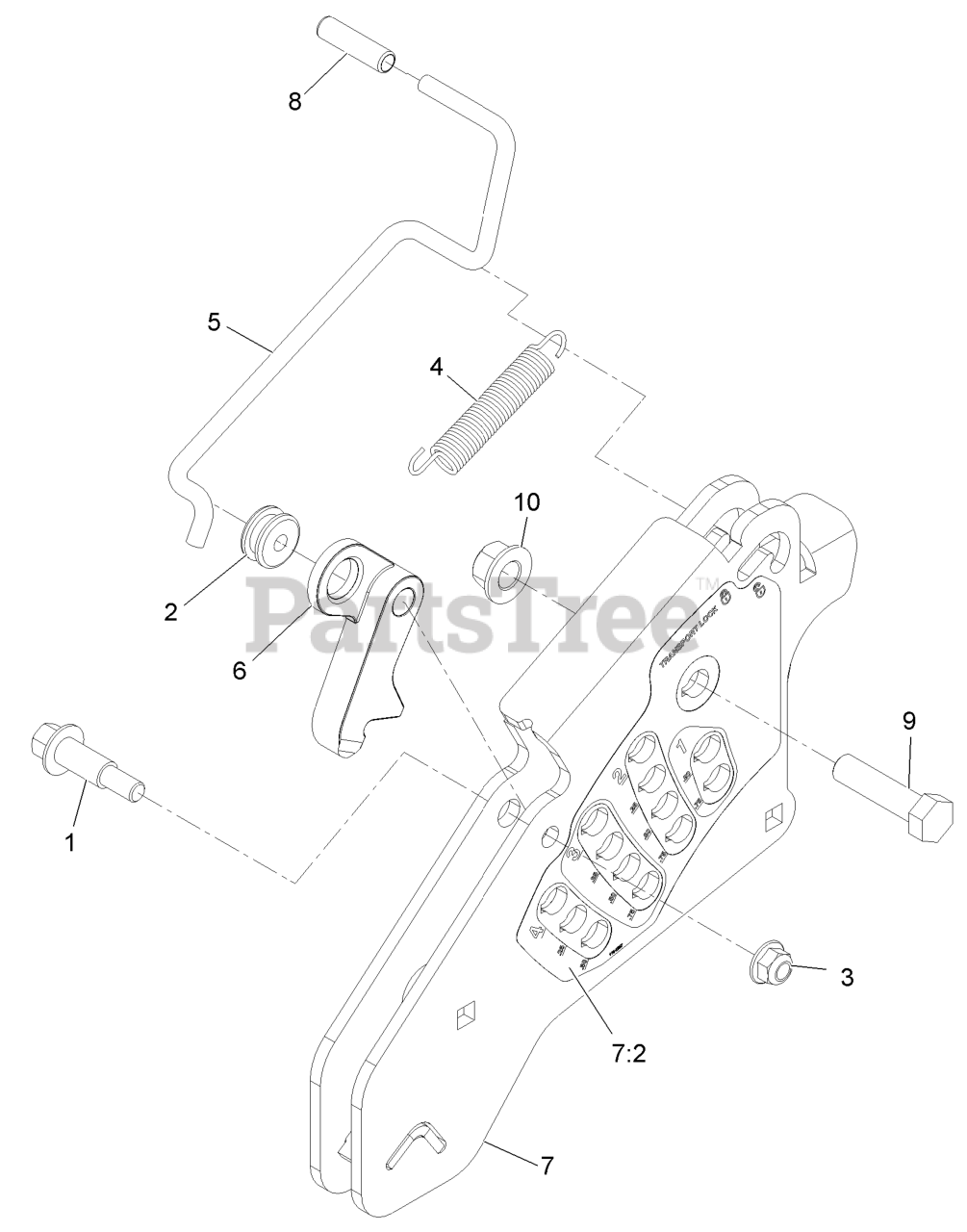

Height-of-Cut Assembly No. 116-1970 Parts Diagram

  • Title
1

Exmark 62-1330

BOLT-SHOULDER

$11.99

$

In Stock, only 1 left!

0

2

Exmark 109-7130

GROMMET

$2.99

$

Usually ships in 3-6 days

0

3

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Exmark 109-7124

SPRING-EXTENSION

$7.99

$

Usually ships in 3-6 days

0

5

Exmark 109-7128

ROD-LOCK, TRANSPORT

$10.99

$

Usually ships in 3-6 days

0

6

Exmark 116-0118

PAWL-TRANSPORT, HOC

$27.99

$

Usually ships in 3-6 days

0

7

Exmark 116-1961

HOC PLATE ASM

$

$

Not available

7:2

Exmark 116-2927

DECAL-HOC

$22.99

$

Usually ships in 3-6 days

0

8

Exmark 109-8250

GRIP-LEVER

$1.99

$

In Stock, only 4 left!

0

9

Exmark 325-8

SCREW-HH

$5.49

$

In Stock, Qty 7

0

10

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0
