LZE651GKA484A2 - Exmark 48" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX (SN: 402082300 - 404314158) (2018) Seat Assembly Parts Diagram
48" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX

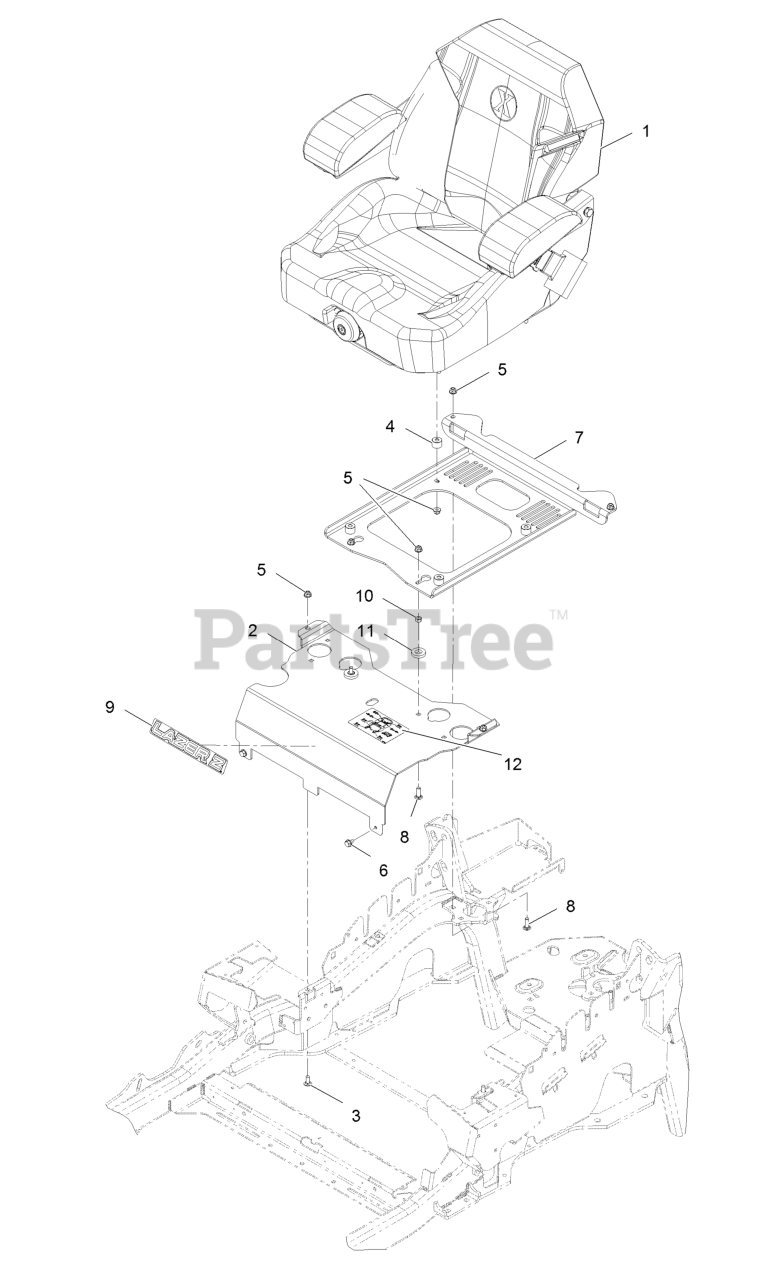

Seat Assembly Parts Diagram
Exmark 116-8912
Kit-Suspension Seat
$1612.99
$
Usually ships in 3-6 days
$241.99
$
Usually ships in 3-6 days
Exmark 3230-23
Bolt-Carriage 5/16-18 X 3/4 Short Neck
$1.49
$
In Stock, Qty 20+
Exmark 116-9329
Spacer
$11.99
$
In Stock, only 3 left!
Exmark 104-8300
Nut-Nyloc 5/16-18 Flg
$1.49
$
In Stock, Qty 17
Exmark 9266934
Screw-HWH 5/16 X 1/2 Tf
$8.99
$
In Stock, only 2 left!
Exmark 116-0192-03
Plate-Support, Seat
$257.99
$
Usually ships in 3-6 days
$2.49
$
In Stock, only 2 left!
Exmark 126-6574
Decal, Lazer Model
$5.99
$
In Stock, only 1 left!
Exmark 3217-6
Nut-Hex 5/16-18
$1.49
$
In Stock, Qty 12
Exmark 1-323539
Spacer-Blade Drive
$2.49
$
In Stock, Qty 20+
Exmark 114-4465
Decal-Service Aid
$29.99
$
Usually ships in 3-6 days
