LZE651GKA484A2 - Exmark 48" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX (SN: 402082300 - 404314158) (2018) Park Brake Assembly Parts Diagram

48" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX

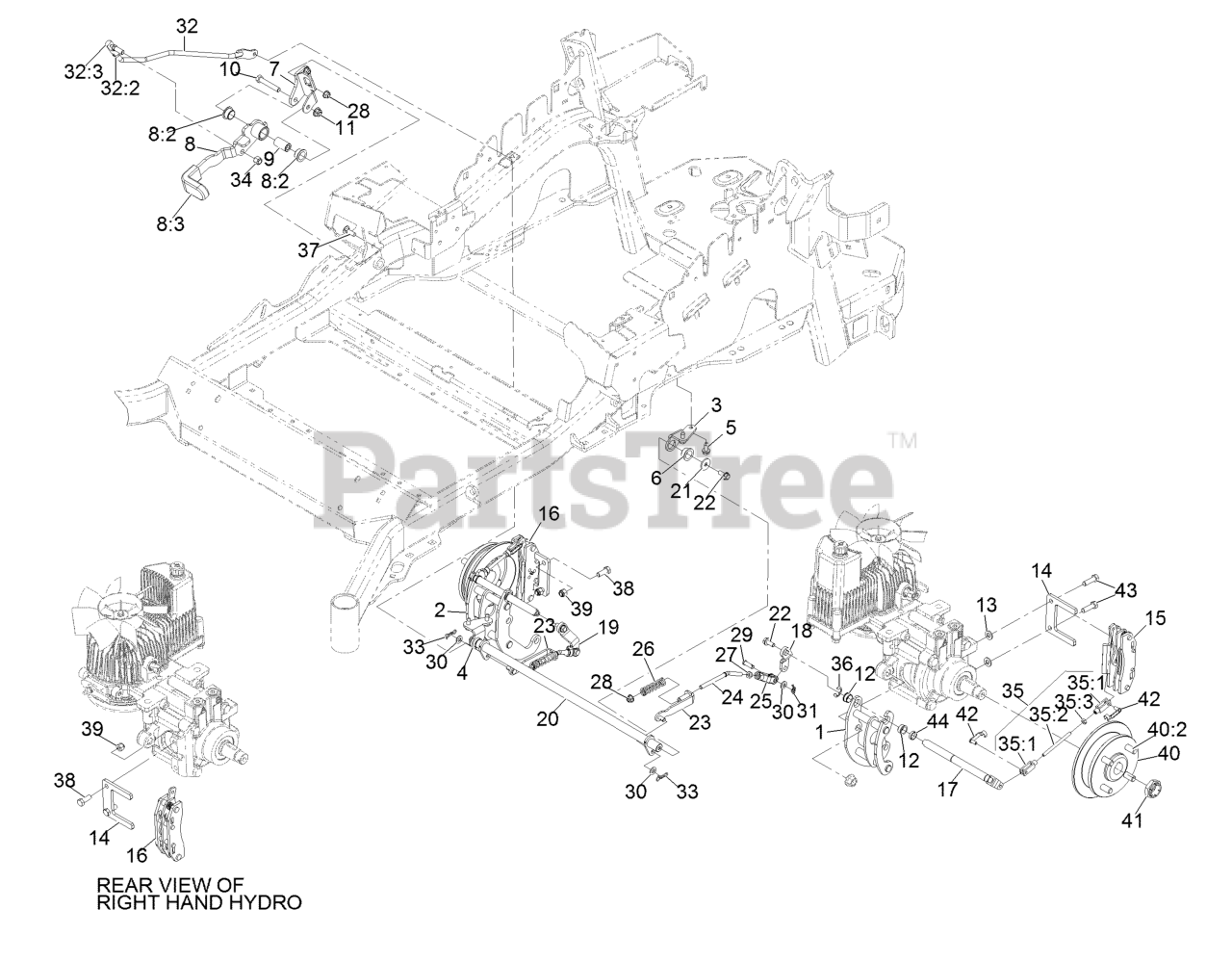

Park Brake Assembly Parts Diagram

  • Title

1

Exmark 126-4248

Mount-Bellcrank, LH

$37.99

$

Usually ships in 3-6 days

0

2

Exmark 126-4249

Mount-Bellcrank, RH

$37.99

$

Usually ships in 3-6 days

0

3

Exmark 116-9681

Mount-Pivot, LH

$5.49

$

In Stock, only 1 left!

0

4

Exmark 116-9682

Mount-Pivot, RH

$5.49

$

In Stock, only 1 left!

0

5

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

6

Exmark 109-8054

Bushing-Flanged

$5.49

$

In Stock, Qty 20+

0

7

Exmark 116-9096-01

Bracket-Mount

$28.99

$

Usually ships in 3-6 days

0

8

Exmark 132-9406

Brake Lever ASM W/ Grip
(Superseded to 135-7565)

$45.99

$

Usually ships in 3-6 days

0

8:2

Exmark 109-8054

Bushing-Flanged

$5.49

$

In Stock, Qty 20+

0

8:3

Exmark 132-4749

Grip-Lever

$5.49

$

In Stock, only 1 left!

0

9

Exmark 116-9117

Handle-Pivot, Brake

$2.99

$

Usually ships in 3-6 days

0

10

Exmark 323-11

Screw-HH 3/8-16 X 2 1/4

$2.49

$

In Stock, Qty 20+

0

11

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

12

Exmark 126-6199

Bushing

$7.99

$

In Stock, Qty 11

0

13

Exmark 3256-24

Washer-3/8 SAE

$0.99

$

In Stock, Qty 16

0

14

Exmark 109-0958

Plate-Mount, Brake

$15.99

$

In Stock, only 1 left!

0

15

Exmark 109-2889

Caliper-Brake

$184.99

$

In Stock, only 2 left!

0

16

Exmark 116-9103

Caliper-Brake, RH

$188.99

$

In Stock, Qty 8

0

17

Exmark 126-4251

Bellcrank

$21.99

$

Usually ships in 3-6 days

0

18

Exmark 126-3715

Arm-Inner, LH

$6.49

$

Usually ships in 3-6 days

0

19

Exmark 126-3716

Arm-Inner, RH

$6.49

$

Usually ships in 3-6 days

0

20

Exmark 116-9080

Shaft-Cross
(Superseded to 135-7800)

$60.99

$

In Stock, only 2 left!

0

21

Exmark 115-7109

Washer-Flat

$1.49

$

Usually ships in 3-6 days

0

22

Exmark 98-9940

Screw

$2.49

$

In Stock, only 3 left!

0

23

Exmark 116-9608

Bracket-L

$47.99

$

Usually ships in 3-6 days

0

24

Exmark 116-9086

Linkage-Mid

$5.99

$

In Stock, only 1 left!

0

25

Exmark 126-3693

Yoke-Offset

$22.99

$

Usually ships in 3-6 days

0

26

Exmark 116-9085

Spring-Compression

$1.49

$

In Stock, only 1 left!

0

27

Exmark 3220-2

Nut-Jam 5/16-24

$1.49

$

In Stock, Qty 20+

0

28

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 17

0

29

Exmark 1-808280

Pin-Clevis 5/16 X 1 49/64

$2.99

$

In Stock, only 2 left!

0

30

Exmark 3256-23

Washer-5/16 SAE

$2.49

$

In Stock, Qty 20+

0

31

Exmark 116-6639

Pin-Cotter, Locking

$1.49

$

In Stock, only 4 left!

0

32

Exmark 116-9102

Front Linkage ASM
(Superseded to 135-7805)

$67.99

$

Usually ships in 3-6 days

0

32:2

Exmark 94-7572

End-Tie Rod, RH

$34.99

$

In Stock, only 2 left!

0

32:3

Exmark 3220-3

Nut-Jam 3/8-24

$0.99

$

In Stock, Qty 17

0

33

Exmark 119-1415

Pin-Cotter, Locking

$1.49

$

In Stock, Qty 7

0

34

Exmark 3296-6

Nut-Nyloc 3/8-24

$1.99

$

In Stock, Qty 20+

0

35

Exmark 126-7587

Rear Linkage ASM

$21.99

$

In Stock, only 2 left!

0

35:1

Exmark 126-7588

Yoke
(Superseded to 126-7587)

$21.99

$

In Stock, only 2 left!

0

35:2

Exmark 116-9069

Linkage, Rear
(Superseded to 126-7587)

$21.99

$

In Stock, only 2 left!

0

35:3

Exmark 3220-1

Nut-Jam 1/4-28

$1.49

$

In Stock, only 2 left!

0

36

Exmark 32120-19

E-Ring

$2.99

$

In Stock, Qty 14

0

37

Exmark 3230-2

Bolt-Carriage 5/16-18 X 1

$1.49

$

In Stock, Qty 5

0

38

Exmark 323-6

Screw-HH 3/8-16 X 1

$2.49

$

In Stock, Qty 20+

0

39

Exmark 3296-39

Nut-Nyloc 3/8-16

$2.99

$

In Stock, Qty 8

0

40

Exmark 116-1746

Wheel Hub ASM
(Superseded to 142-2701)

$114.99

$

In Stock, only 2 left!

0

40:2

Exmark 116-1696

Stud-Wheel

$5.49

$

In Stock, Qty 20+

0

41

Exmark 116-1399

Locknut

$14.99

$

In Stock, only 1 left!

0

42

Exmark 126-6395

Pin-Clevis, Spring

$8.49

$

In Stock, Qty 5

0

43

Exmark 92-5727

Screw-HH 3/8-16 X 1 1/4 Patch Lock

$3.49

$

In Stock, Qty 5

0

44

Exmark 126-6200

Spacer

$2.99

$

Usually ships in 3-6 days

0
