LZE600KA484 - Exmark 48" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX600V (SN: 314000000 - 314999999) (2014) Engine Assembly Parts Diagram

48" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX600V

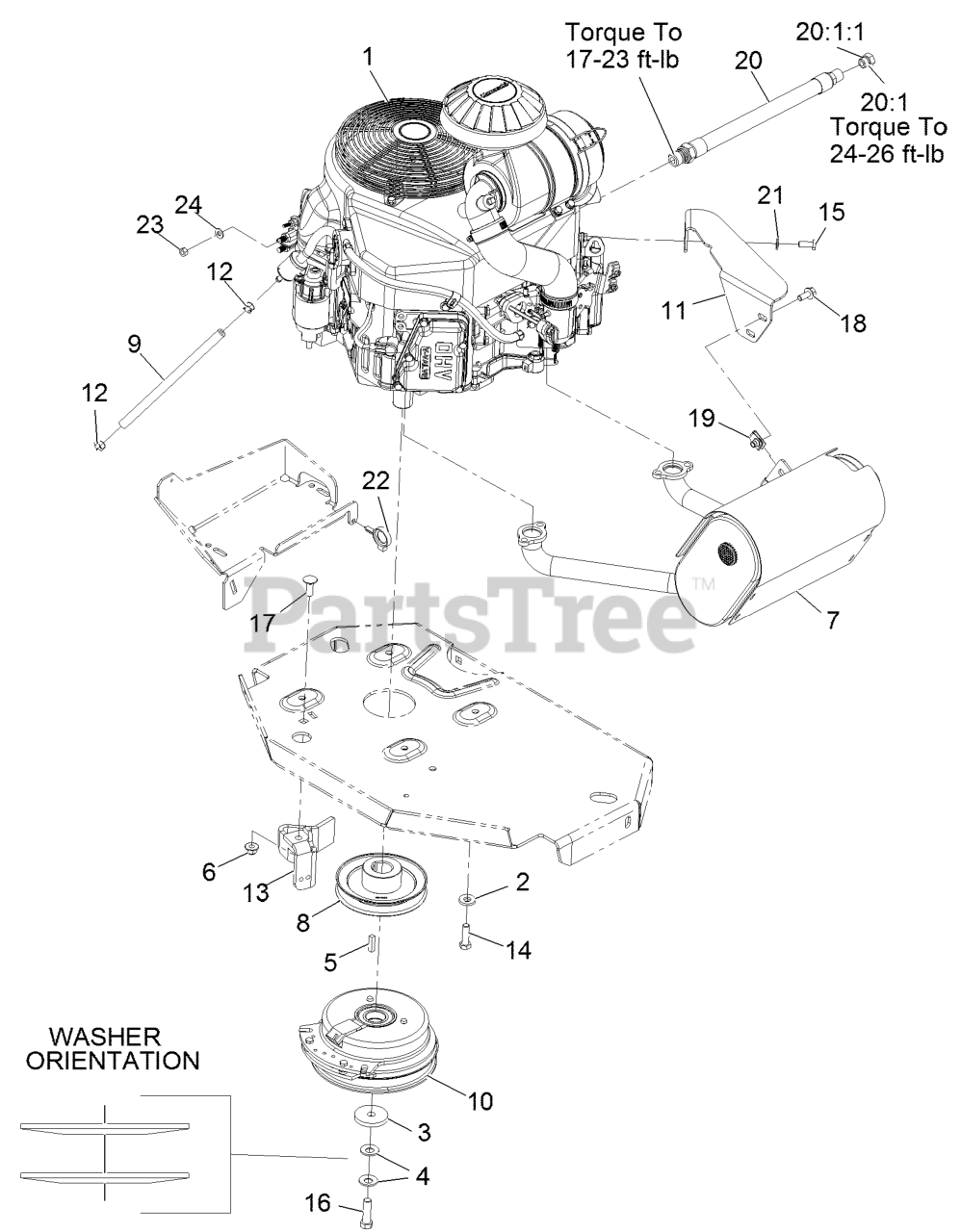

Engine Assembly Parts Diagram

  • Title

1

Engine-Kawasaki

Note: Not serviced separately

$

$

Not available

2

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

3

Exmark 109-6919

WASHER-CLUTCH

$5.49

$

In Stock, Qty 8

0

4

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 5

0

5

Exmark 1-807259

KEY

$2.99

$

In Stock, only 2 left!

0

6

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Exmark 116-2117

MUFFLER

$519.99

$

Usually ships in 3-6 days

0

8

Exmark 116-1946

SHEAVE-PUMP, DRIVE

$74.99

$

In Stock, only 1 left!

0

9

Exmark 110-3447

HOSE-FUEL

$9.49

$

Usually ships in 3-6 days

0

10

Exmark 116-1947

CLUTCH

$470.99

$

Usually ships in 3-6 days

0

11

Exmark 116-2157

BRACKET-MUFFLER

$35.99

$

In Stock, only 1 left!

0

12

Exmark 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

13

Exmark 116-2612-01

CLUTCH-ANCHOR

$55.99

$

In Stock, only 2 left!

0

14

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

15

Exmark 95-4184

SCREW-HHF
(Superseded to 139-3392)

$2.99

$

Usually ships in 3-6 days

0

16

Exmark 109-9761

SCREW-HH 7/16-20 X 1 1/2 W/LOCTITE

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$5.49

$

In Stock, Qty 6

0

17

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

18

Exmark 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

19

Exmark 94-2413

NUT-U

$2.99

$

In Stock, Qty 20+

0

20

Exmark 116-4924

ENGINE OIL DRAIN HOSE ASM

$37.99

$

In Stock, Qty 5

0

20:1

Exmark 353-508

PLUG-HH

$8.49

$

In Stock, only 1 left!

0

20:1:1

Exmark 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

21

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

22

Exmark 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0

23

Exmark 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

24

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
