LZE600KA484 - Exmark 48" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX600V (SN: 312000000 - 312999999) (2012) Engine Assembly Parts Diagram
48" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX600V

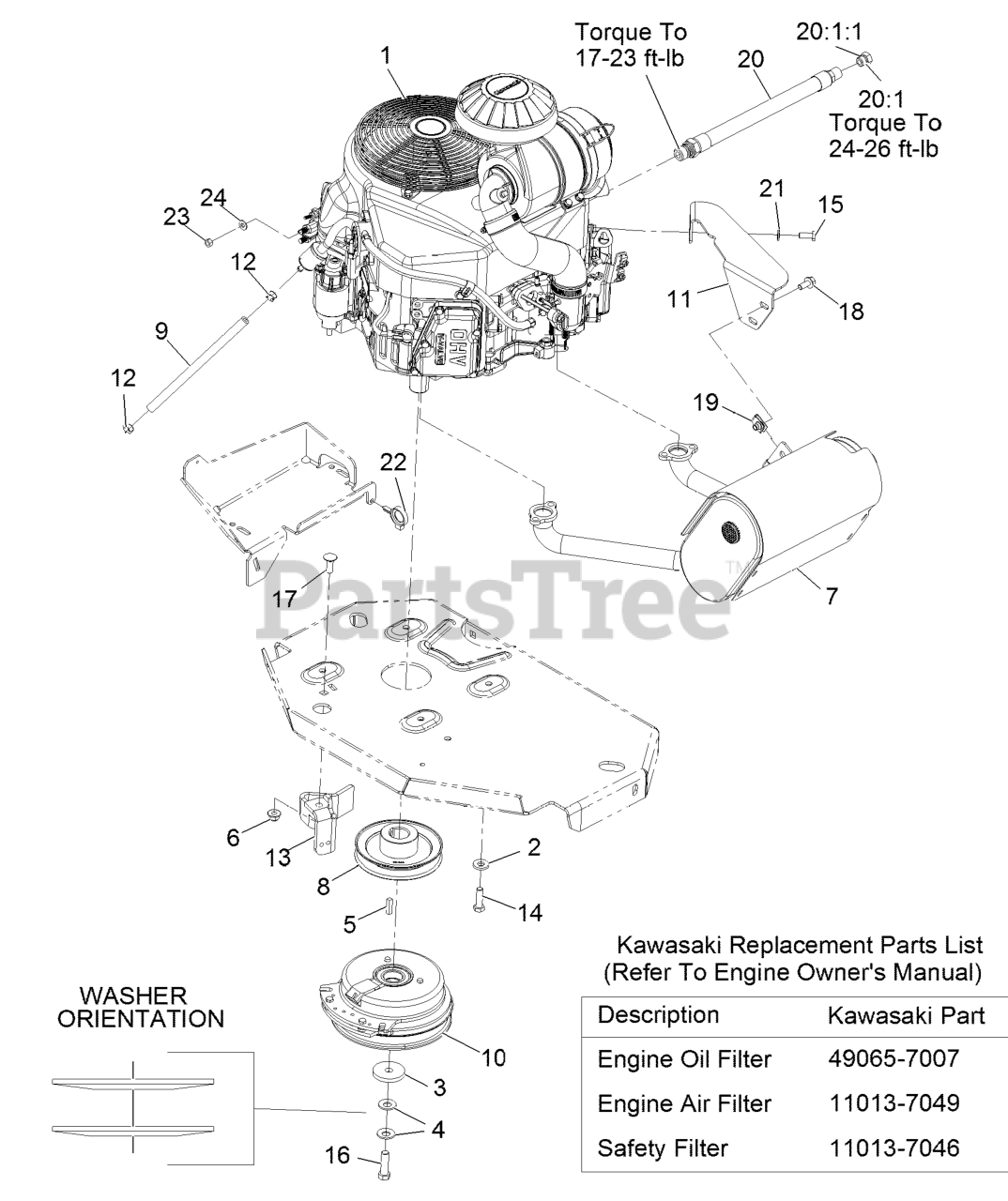

Engine Assembly Parts Diagram
Note: Not serviced separately
$
$
Not available
Exmark 98-5975
$3.49
$
Exmark 109-6919
$5.49
$
Exmark 1-603610
$5.49
$
Exmark 1-807259
$2.49
$
Exmark 104-8301
$1.49
$
Exmark 116-2117
$519.99
$
Exmark 116-1946
$74.99
$
Exmark 110-3447
$9.49
$
Exmark 116-1947
$470.99
$
Exmark 116-2157
$35.99
$
Exmark 2412-98
$1.49
$
Exmark 116-2612-01
$55.99
$
Exmark 323-7
$2.99
$
Exmark 33114-020
$0.99
$
Exmark 109-9761
Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.
$5.49
$
Exmark 3231-22
$3.49
$
Exmark 3234-5
$1.49
$
Exmark 94-2413
$2.99
$
Exmark 116-4924
$37.99
$
Exmark 353-508
$8.49
$
Exmark 237-42
$3.49
$
Exmark 1-303334
$2.99
$
Exmark 105-1853
$5.49
$
Exmark 3217-5
$0.99
$
Exmark 3256-22
$0.99
$
