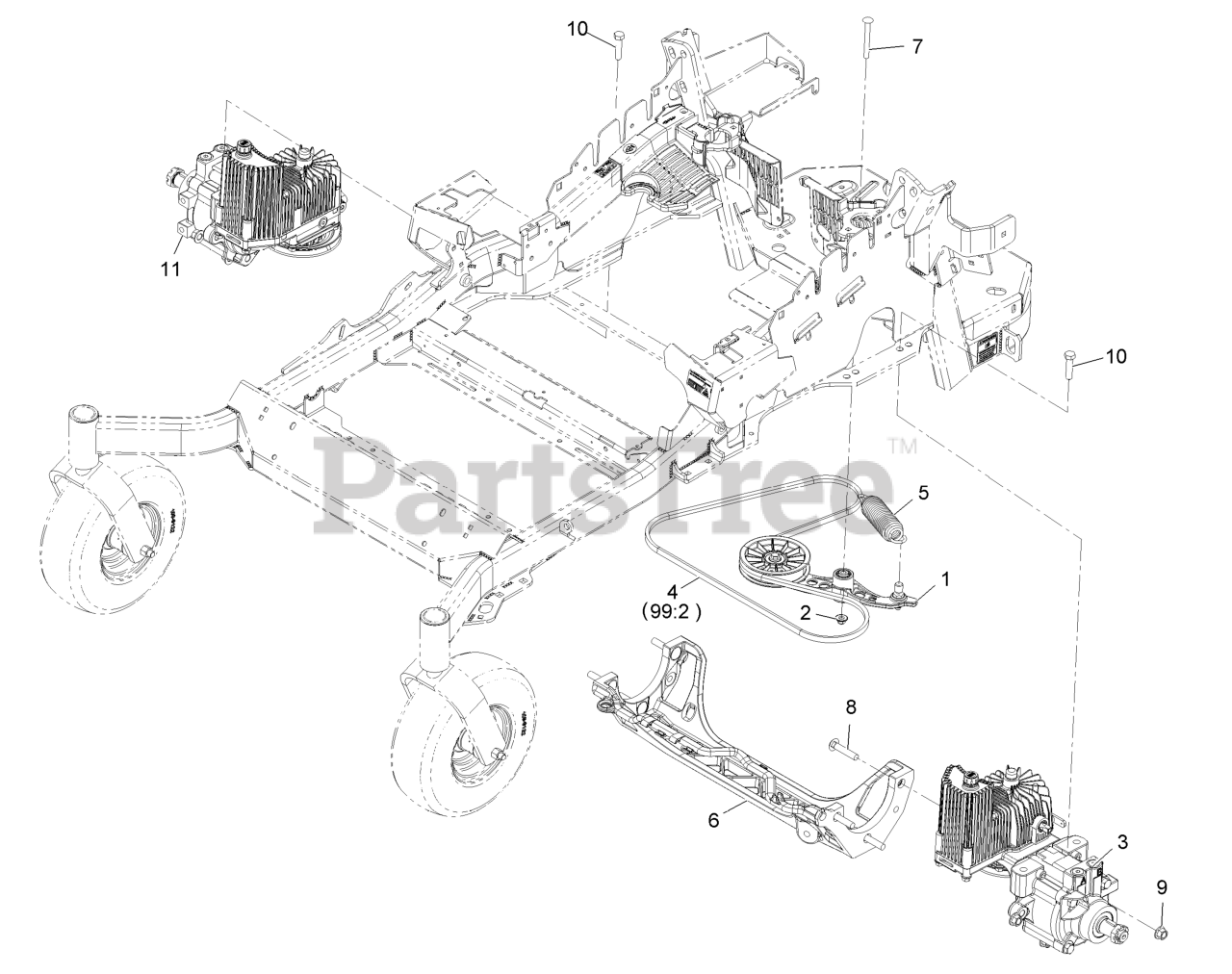

LZE27KC604 - Exmark 60" Lazer Z E-Series Zero-Turn Mower, 27hp Kohler (SN: 920000 - 999999) (2011) Hydraulic Assembly Parts Diagram

60" Lazer Z E-Series Zero-Turn Mower, 27hp Kohler

Hydraulic Assembly Parts Diagram

  • Title

1

Exmark 116-1255

PUMP IDLER ASM

$217.99

$

In Stock, Qty 13

0

2

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

3

Exmark 116-2976

126-1327
(Superseded to 135-7901)

$3070.99

$

Usually ships in 3-6 days

0

4

Exmark 116-1953

BELT-V
(Superseded to 116-1953-SL)

$49.99

$

Usually ships in 3-6 days

0

5

Exmark 116-0133

116-6317
(Superseded to 116-6317)

$28.99

$

In Stock, Qty 20+

0

6

Exmark 109-9375

116-7558
(Superseded to 116-7558)

$227.99

$

Usually ships in 3-6 days

0

7

Exmark 116-1502

BOLT-SHOULDER, CARRIAGE 3/8-16 X 3 1/2

$7.99

$

In Stock, Qty 14

0

8

Exmark 3233-34

SCREW-CARR

$9.49

$

In Stock, only 3 left!

0

9

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

10

Exmark 325-8

SCREW-HH

$5.49

$

In Stock, Qty 17

0

11

Exmark 116-2977

126-1328
(Superseded to 135-7902)

$3070.99

$

Usually ships in 3-6 days

0

99

Exmark 109-9828

BOTTLE-OIL, 32OZ HYDRAULIC

Note: Not illustrated

$18.99

$

In Stock, Qty 20+

0

99

Exmark 116-0164

FILTER-HYDRO

Note: Not illustrated

$72.99

$

In Stock, Qty 20+

0

99

Exmark 116-1218

Bottle,Oil 1 Gallon Hydraulic

Note: Not illustrated

$71.99

$

In Stock, Qty 20+

0

99

Exmark 116-3282

126-8103
(Superseded to 126-8103)

Note: Not illustrated

$254.99

$

In Stock, Qty 8

0

99:1

Exmark 109-9828

BOTTLE-OIL, 32OZ HYDRAULIC

Note: Not illustrated

$18.99

$

In Stock, Qty 20+

0

99:2

Exmark 116-1953

BELT-V
(Superseded to 116-1953-SL)

$49.99

$

Usually ships in 3-6 days

0

99:3

Exmark 116-0164

FILTER-HYDRO

Note: Not illustrated

$72.99

$

In Stock, Qty 20+

0
