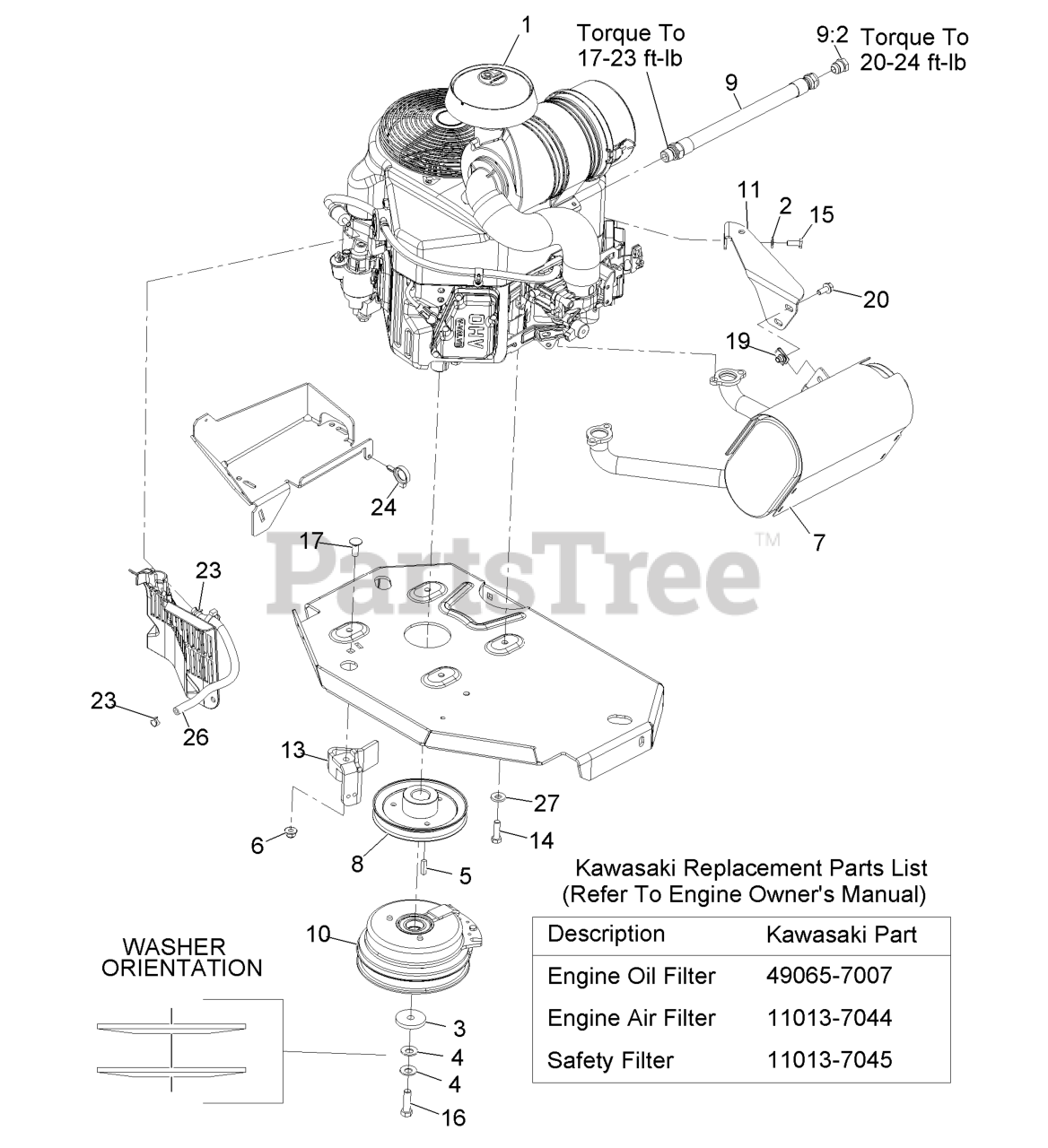

LZE24KA524 - Exmark 52" Lazer Z E-Series Zero-Turn Mower, 24hp Kawasaki (SN: 920000 - 999999) (2011) Engine Assembly Parts Diagram

52" Lazer Z E-Series Zero-Turn Mower, 24hp Kawasaki

Engine Assembly Parts Diagram

  • Title

1

Engine,Ka 24hp Fx Bendix

Note: Not serviced separately\nObtain parts from www.kawpowerepc.com

$

$

Not available

2

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

3

Exmark 109-6919

WASHER-CLUTCH

$5.49

$

In Stock, Qty 9

0

4

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 10

0

5

Exmark 1-807259

KEY

$2.99

$

In Stock, only 2 left!

0

6

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Exmark 116-1715

MUFFLER

$274.99

$

Usually ships in 3-6 days

0

8

Exmark 116-1946

SHEAVE-PUMP, DRIVE

$76.99

$

In Stock, only 1 left!

0

9

Exmark 109-4490

116-4924
(Superseded to 116-4924)

Note: Use a Teflon Pipe Sealant or equivalent on threads.

$36.99

$

In Stock, Qty 6

0

9:2

Exmark 109-1012

PLUG

$7.99

$

Usually ships in 3-6 days

0

10

Exmark 116-1947

CLUTCH

$509.99

$

Usually ships in 3-6 days

0

11

Exmark 116-1435

BRACKET-MUFFLER

$31.99

$

Usually ships in 3-6 days

0

13

Exmark 116-2612-01

CLUTCH-ANCHOR

$54.99

$

In Stock, only 2 left!

0

14

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

15

Exmark 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0

16

Exmark 109-9761

SCREW-HH 7/16-20 X 1 1/2 W/LOCTITE

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$5.49

$

In Stock, Qty 7

0

17

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

19

Exmark 94-2413

NUT-U

$2.99

$

In Stock, Qty 20+

0

20

Exmark 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 18

0

23

Exmark 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

24

Exmark 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0

26

Exmark 109-0296

HOSE-FUEL

$10.99

$

In Stock, only 4 left!

0

27

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0
