LZDS902K72RD - Exmark 72" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel (SN: 314000000 - 314999999) (2014) Park Brake Assembly Parts Diagram

72" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel

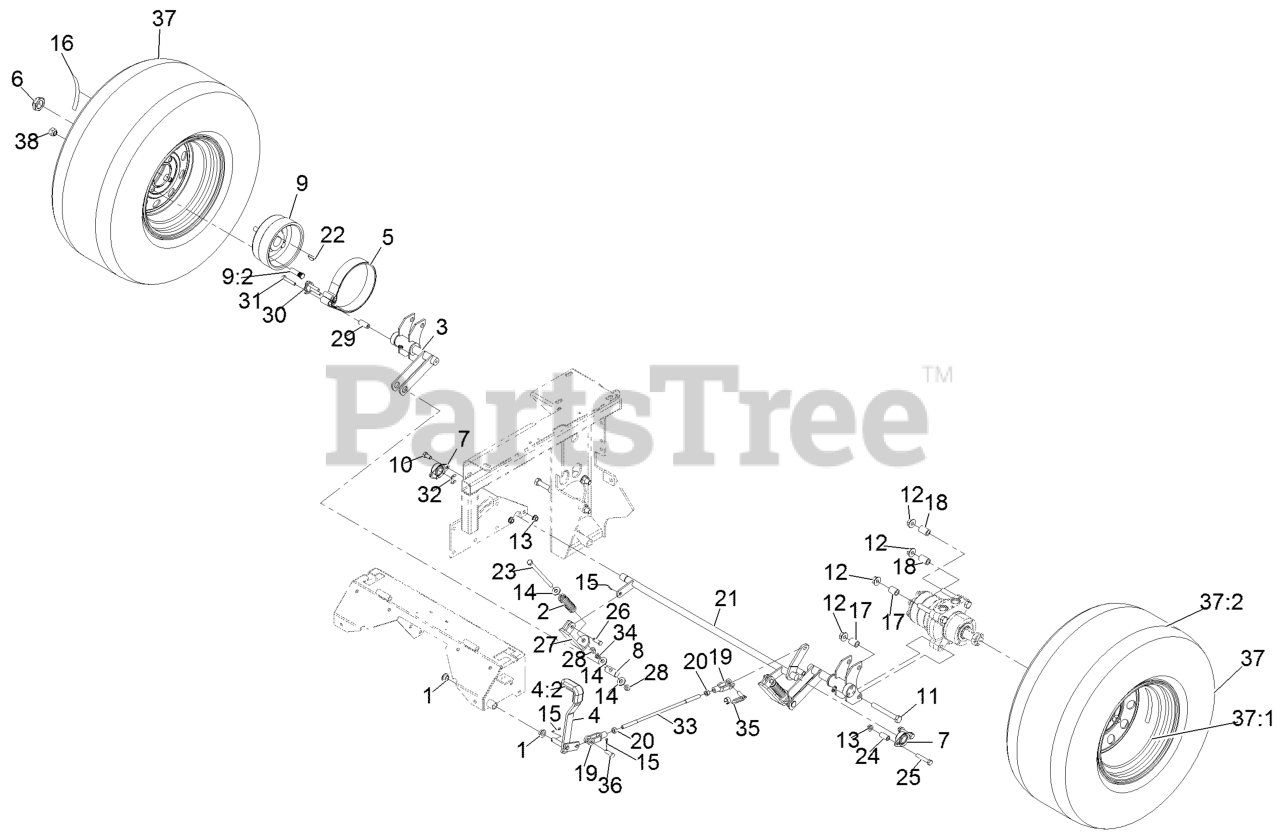

Park Brake Assembly Parts Diagram

  • Title

1

Exmark 1-513140

BEARING-CONTROL

$6.49

$

In Stock, Qty 8

0

2

Exmark 109-2230

SPRING-COMPRESSION

$8.99

$

Usually ships in 3-6 days

0

3

Exmark 103-0810-03

BRAKE-WIDE

$245.99

$

Usually ships in 3-6 days

0

4

Exmark 103-0197

BRAKE LEVER AND GRIP ASM

$82.99

$

Usually ships in 3-6 days

0

4:2

Exmark 1-633268

GRIP-LEVER

$14.99

$

In Stock, only 4 left!

0

5

Exmark 103-9761

BAND,BRAKE

$49.99

$

In Stock, Qty 10

0

6

Exmark 116-1399

LOCKNUT

$14.99

$

In Stock, only 1 left!

0

7

Exmark 1-633102

BEARING-FLANGE, SIDE

$18.99

$

In Stock, only 3 left!

0

8

Exmark 1-633144

PIN-TRUNION

$13.99

$

Usually ships in 3-6 days

0

9

Exmark 116-2291

HUB W/STUDS ASM

$194.99

$

Usually ships in 3-6 days

0

9:2

Exmark 1-633926

STUD-WHEEL

$4.99

$

In Stock, Qty 20+

0

10

Exmark 323-4

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

11

Exmark 325-20

SCREW-HH

$7.99

$

In Stock, Qty 20+

0

12

Exmark 32128-49

NUT-HHF

$1.99

$

In Stock, Qty 20+

0

13

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

14

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

15

Exmark 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 11

0

16

Exmark 126-2055

DECAL-TORQUE, WHEEL HUB LUG

$6.49

$

In Stock, Qty 11

0

17

Exmark 109-5011

SPACER-WHEEL, SHORT

$28.99

$

In Stock, Qty 6

0

18

Exmark 109-5012

SPACER-WHEEL, LONG

$29.99

$

Usually ships in 3-6 days

0

19

Exmark 1-633131

YOKE-LINKAGE, BRAKE

$15.99

$

In Stock, Qty 12

0

20

Exmark 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

21

Exmark 103-5243-03

SHAFT-BRAKE

$133.99

$

Usually ships in 3-6 days

0

22

Exmark 3257-42

KEY-WOODRUFF

$6.49

$

In Stock, Qty 10

0

23

Exmark 323-58

BOLT-TAP, HH

$5.49

$

Usually ships in 3-6 days

0

24

Exmark 103-0051

SPACER-RETAINER, BRAKE

$6.49

$

Usually ships in 3-6 days

0

25

Exmark 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

26

Exmark 1-808284

PIN-CLEVIS

$3.49

$

In Stock, Qty 20+

0

27

Exmark 103-1117-03

LINKAGE-BRAKE, LOWER

$41.99

$

Usually ships in 3-6 days

0

28

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

29

Exmark 103-0384

SPACER

$1.99

$

In Stock, Qty 5

0

30

Exmark 103-0374

RETAINER-BAND, BRAKE

$5.49

$

In Stock, only 4 left!

0

31

Exmark 322-9

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

32

Exmark 32151-48

E-RING

$1.99

$

In Stock, Qty 14

0

33

Exmark 103-1708

ROD-BRAKE

$7.99

$

Usually ships in 3-6 days

0

34

Exmark 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

35

Exmark 103-2399

PIN-SPRING, CLEVIS

$6.49

$

In Stock, Qty 6

0

36

Exmark 1-808285

PIN-CLEVIS

$3.49

$

In Stock, Qty 15

0

37

Exmark 109-3157

WHEEL AND TIRE ASM

$583.99

$

Usually ships in 3-6 days

0

37:1

Exmark 109-3156

RIM

$243.99

$

In Stock, Qty 10

0

37:2

Exmark 103-4963

TIRE

$369.99

$

Usually ships in 3-6 days

0

38

Exmark 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

Usually ships in 3-6 days
