Exmark LZDS902K72RD - Exmark 72" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel (SN: 314000000 - 314999999) (2014) Front Frame Assembly Parts Lookup with Diagrams

1

Exmark 116-9410

ASM-FRT FRM 72RD

$3492.99

$

Usually ships in 3-6 days

2

Exmark 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 10

3

Exmark 116-8644

ASM-WHL AND TIRE

$353.99

$

Usually ships in 3-6 days

4

Exmark 3274-18

SCREW-HSH

$9.49

$

In Stock, Qty 7

5

Exmark 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

6

Exmark 1-543509

Cone-Bearing Tapered Roller

$13.99

$

In Stock, Qty 20+

7

Exmark 1-633508

WASHER-BELLVILLE

$3.49

$

In Stock, Qty 20+

8

Exmark 116-8400-01

WLD-CASTER FORK 15

$195.99

$

Usually ships in 3-6 days

10

Exmark 103-2047

FRONT FRAME SPRING ASM

$80.99

$

Usually ships in 3-6 days

11

Exmark 3256-29

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

12

Exmark 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 7

13

Exmark 109-4488

ASM,Deck Lift Handle

$65.99

$

In Stock, only 1 left!

13:2

Exmark 1-633325

SPRING-COMPRESSION

$5.49

$

Usually ships in 3-6 days

13:3

Exmark 103-2084

LIFT LEVER/GRIP ASM

$77.99

$

Usually ships in 3-6 days

13:3:2

Exmark 1-633295

GRIP-LEVER, LIFT

$7.99

$

In Stock, only 3 left!

13:4

Exmark 109-4487

WLD,ARM DECK LIFT

$162.99

$

Usually ships in 3-6 days

13:5

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

13:6

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 16

14

Exmark 1-633068

ARM-LIFT, DECK

$11.99

$

Usually ships in 3-6 days

15

Exmark 103-1918

BUSHING

$7.99

$

In Stock, Qty 6

16

Exmark 323-29

SCREW-HH

$0.99

$

In Stock, Qty 7

17

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 16

18

Exmark 116-9122-01

PLATE-DECK LIFT NOTCHED O

$46.99

$

Usually ships in 3-6 days

19

Exmark 323-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

20

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

21

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

22

Exmark 109-3193

Stop, Deck Height

$

Currently unavailable 

23

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

24

Exmark 1-633082

BUSHING-LEVER, LIFT

$11.99

$

Usually ships in 3-6 days

25

Exmark 116-5584

PIN-HOC

$5.49

$

In Stock, only 4 left!

26

Exmark 116-9124

PLATE-LIFT, DECK W/DECAL

$54.99

$

Usually ships in 3-6 days

26:2

Exmark 1-633706

DECAL-HEIGHT, DECK

$3.99

$

In Stock, Qty 5

27

Exmark 109-1903

ASM, FLOORPAN FRONT W/DEC

$274.99

$

Usually ships in 3-6 days

27:2

Exmark 103-3113

DECAL,LAZER MODEL

$11.99

$

In Stock, Qty 10

27:3

Exmark 116-3303

DECAL-SLOPE

$17.99

$

Usually ships in 3-6 days

28

Exmark 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

29

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

30

Exmark 109-1902

ASM, FLOORPAN LIFTOUT W/D

$191.99

$

Usually ships in 3-6 days

30:2

Exmark 1-513748

DECAL-GUARD

$5.49

$

In Stock, Qty 6

31

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

32

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

33

Exmark 103-9792

DECK CHAIN ASM

$13.99

$

In Stock, only 1 left!

33:1

Exmark 1-633447

CHAIN-LIFT, DECK

$10.99

$

In Stock, Qty 16

33:2

Exmark 103-1898

SCREW-HH

$1.99

$

In Stock, Qty 20+

33:3

Exmark 32128-37

NUT-HF

$4.49

$

In Stock, Qty 18

34

Exmark 103-9817

DECK CHAIN ASM

$14.99

$

In Stock, only 3 left!

34:1

Exmark 1-633447

CHAIN-LIFT, DECK

$10.99

$

In Stock, Qty 16

34:2

Exmark 103-1898

SCREW-HH

$1.99

$

In Stock, Qty 20+

34:3

Exmark 32128-37

NUT-HF

$4.49

$

In Stock, Qty 18

35

Exmark 32128-37

NUT-HF

$4.49

$

In Stock, Qty 18

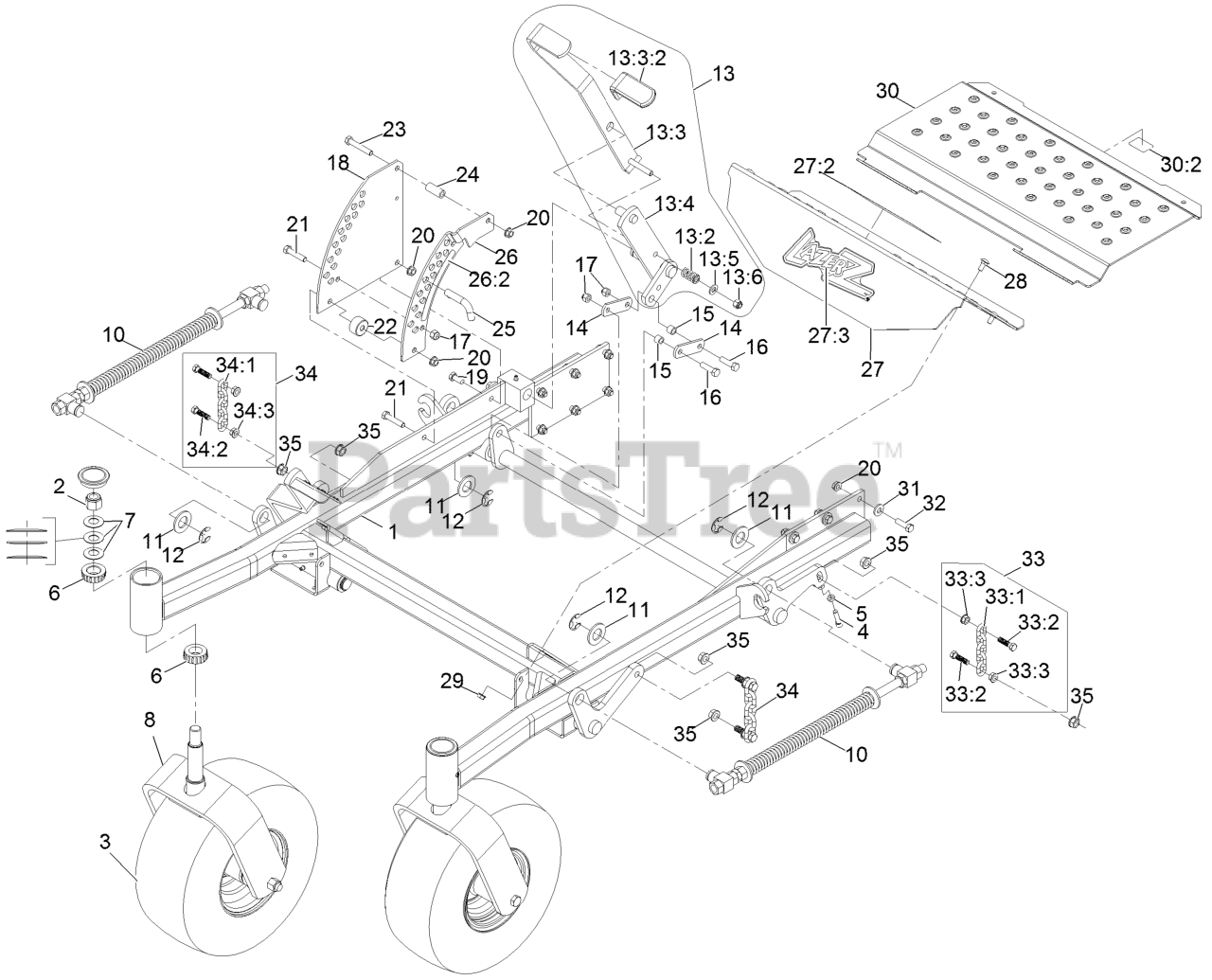

LZDS902K72RD - Exmark 72" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel (SN: 314000000 - 314999999) (2014) Front Frame Assembly Parts Diagram
