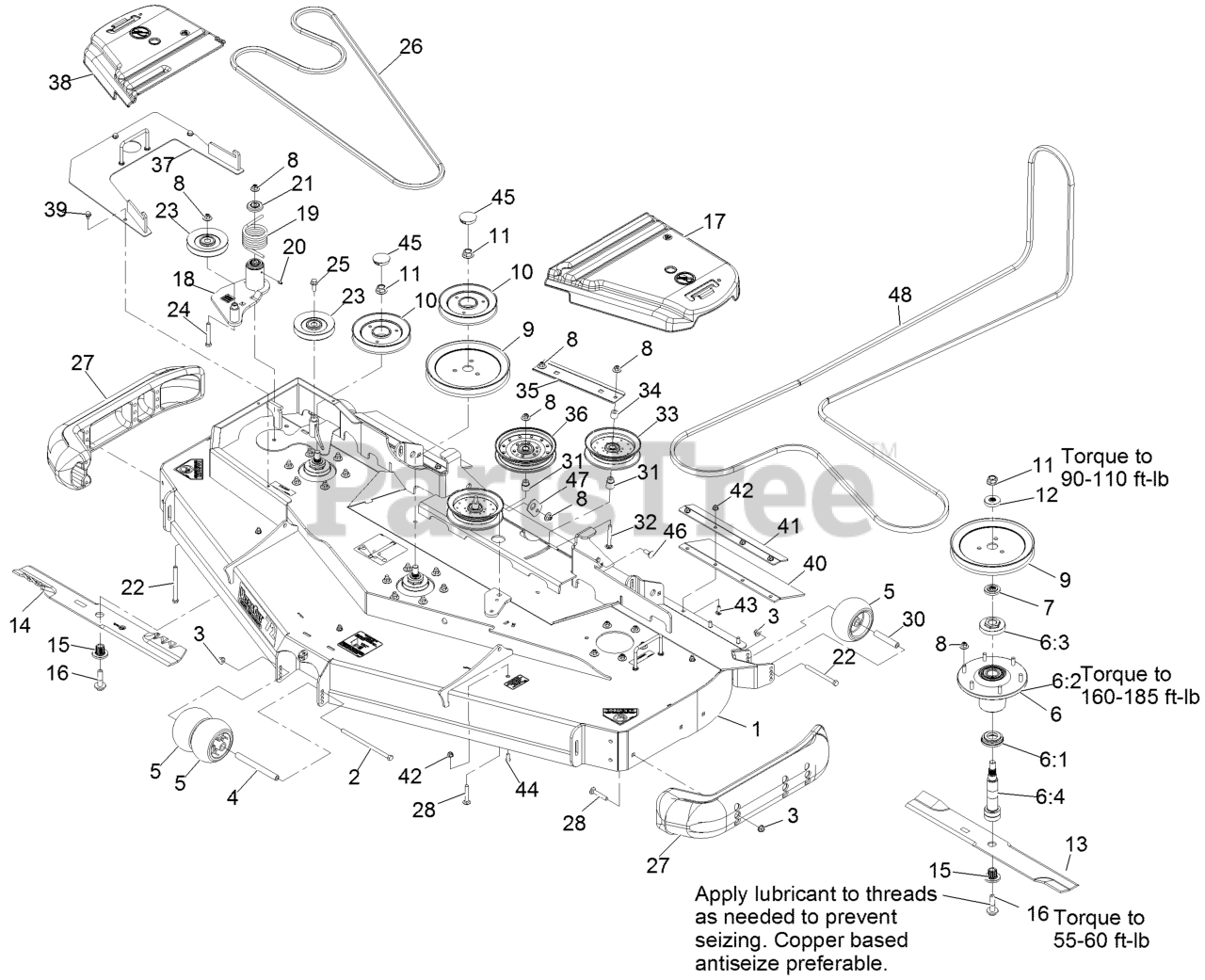

LZDS902K72RD - Exmark 72" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel (SN: 314000000 - 314999999) (2014) Deck Assembly Parts Diagram

72" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel

Deck Assembly Parts Diagram

  • Title

1

Exmark 116-8213

DECK-RD72, W/DECALS

$3605.99

$

Usually ships in 3-6 days

0

2

Exmark 108-5388

SCREW-HH

$15.99

$

Usually ships in 3-6 days

0

3

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Exmark 98-5967

SPACER-WHEEL

$15.99

$

Usually ships in 3-6 days

0

5

Exmark 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 16

0

6

Exmark 109-6917

ASM,SPINDLE HOUSING

$521.99

$

In Stock, Qty 7

0

6:1

Exmark 103-9504

GUARD,BOTTOM

$11.99

$

In Stock, only 2 left!

0

6:2

Exmark 103-9539

ASM,CUTTER HOUSING

$374.99

$

In Stock, only 2 left!

0

6:3

Exmark 109-0916

NUT, SPINDLE 7/8-14

$24.99

$

In Stock, only 1 left!

0

6:4

Exmark 109-6881

SPINDLE,DOUBLE SPLINE

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.

$129.99

$

In Stock, only 1 left!

0

7

Exmark 103-9522

SPACER,SPLINED STEPPED

$6.99

$

In Stock, Qty 9

0

8

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

9

Exmark 109-2180

SHEAVE,BLADE DRIVE 9.00

$52.99

$

In Stock, only 4 left!

0

10

Exmark 116-8193

SHEAVE-RD, REVERSE DRIVE

$186.99

$

In Stock, only 1 left!

0

11

Exmark 109-7033

NUT-FLANGE, CENTERLOCK

$2.99

$

In Stock, Qty 20+

0

12

Exmark 103-9523

SPACER,SPLINED

$8.49

$

In Stock, only 2 left!

0

13

Exmark 116-5171

116-5171-S
(Superseded to 116-5171-S)

$43.99

$

In Stock, Qty 5

0

13

Exmark 103-6404

103-6404-S
(Superseded to 103-6404-S)

$43.99

$

In Stock, Qty 20+

0

13

Exmark 103-6389

103-6389-S
(Superseded to 103-6389-S)

$38.99

$

In Stock, Qty 7

0

14

Exmark 116-8503

116-8503-S
(Superseded to 116-8503-S)

$37.99

$

In Stock, Qty 12

0

14

Exmark 116-8502

116-8502-S
(Superseded to 116-8502-S)

$38.99

$

In Stock, only 2 left!

0

15

Exmark 103-3037

BUSHING,SPLINED

$22.99

$

In Stock, Qty 20+

0

16

Exmark 109-9220

SCREW,SEMS 1/2-20 X 2.19

$8.49

$

In Stock, Qty 20+

0

17

Exmark 109-6938

COVER-BELT, LH

$96.99

$

In Stock, only 2 left!

0

18

Exmark 126-0853

IDLER ASM

$243.99

$

Usually ships in 3-6 days

0

19

Exmark 108-1921

SPRING-TORSION

$30.99

$

Usually ships in 3-6 days

0

20

Exmark 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

21

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 9

0

22

Exmark 323-23

SCREW-HH

$5.49

$

In Stock, Qty 16

0

23

Exmark 126-1478

SHEAVE

$50.99

$

In Stock, only 1 left!

0

24

Exmark 323-13

SCREW-HH

$3.99

$

In Stock, Qty 5

0

25

Exmark 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

26

Exmark 116-8501

BELT

$119.99

$

Usually ships in 3-6 days

0

27

Exmark 112-1479

SKID-BUMPER, DECK

$101.99

$

Usually ships in 3-6 days

0

28

Exmark 3231-7

Bolt-Carriage 3/8-16 X 2 1/4

$6.99

$

In Stock, Qty 14

0

30

Exmark 98-7912

TUBE-SPANNER

$13.99

$

In Stock, Qty 20+

0

31

Exmark 1-633456

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

0

32

Exmark 3231-9

SCREW-CARR

$2.49

$

In Stock, Qty 7

0

33

Exmark 116-4668

126-9196
(Superseded to 126-9196)

$60.99

$

In Stock, Qty 9

0

34

Exmark 121-1760

SPACER

$2.99

$

In Stock, only 2 left!

0

35

Exmark 116-8964-01

GUIDE-RD BELT

$24.99

$

Usually ships in 3-6 days

0

36

Exmark 116-4670

126-9189
(Superseded to 126-9189)

$61.99

$

In Stock, Qty 9

0

37

Exmark 116-9267-01

COVER-RD72 REVERSE DRIVE

$154.99

$

Usually ships in 3-6 days

0

38

Exmark 116-0094

COVER-BELT, RH

$86.99

$

In Stock, only 4 left!

0

39

Exmark 9266934

SCREW

$8.99

$

In Stock, only 2 left!

0

40

Exmark 116-8288

GUARD-TIRE RD72

$20.99

$

Usually ships in 3-6 days

0

41

Exmark 126-0414-01

SUPPORT-OUTER FLAP

$22.99

$

Usually ships in 3-6 days

0

42

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

43

Exmark 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

44

Exmark 3274-55

SCREW-HSBH

$5.49

$

In Stock, Qty 13

0

45

Exmark 116-2253

PLUG,BLACK NYLON 1.75

$2.99

$

In Stock, only 4 left!

0

46

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 14

0

47

Exmark 1-633031-01

PLATE,DECK STRUT

$2.99

$

Usually ships in 3-6 days

0

48

Exmark 116-9702

BELT-V
(Superseded to 116-9702-SL)

$209.99

$

In Stock, Qty 8

0
