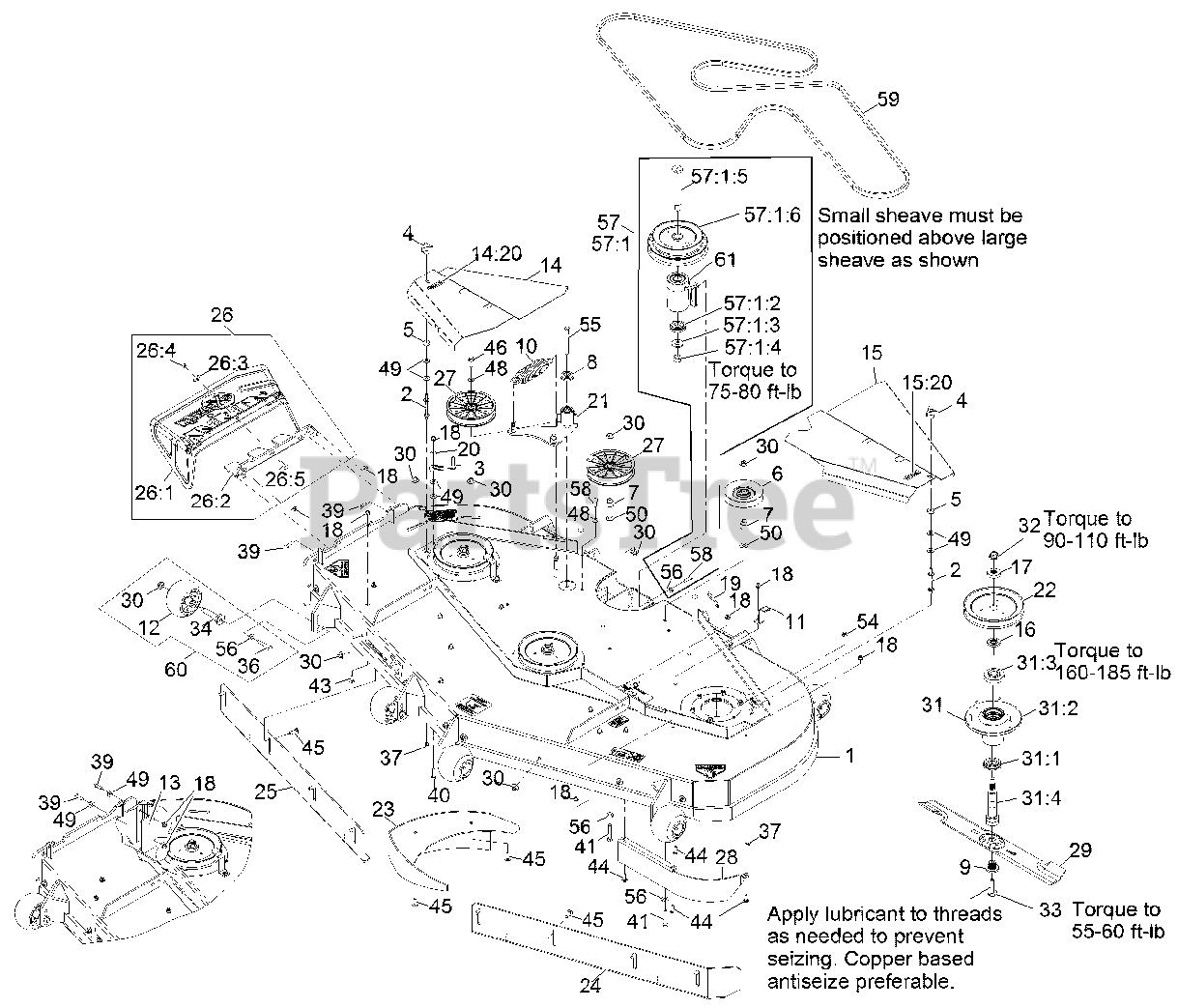

LZDS902K725 - Exmark 72" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel (SN: 314000000 - 314999999) (2014) Deck Assembly No. 116-9149 Parts Diagram

72" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel

Deck Assembly No. 116-9149 Parts Diagram

  • Title

1

Exmark 109-2105

ASM, DECK 725 W/DECALS

$5935.99

$

Usually ships in 3-6 days

0

2

Exmark 1-303537

STUD-SHIELD, BELT (SHORT)

$6.49

$

In Stock, Qty 20+

0

3

Exmark 1-322110

GUIDE-BELT

$12.99

$

In Stock, Qty 8

0

4

Exmark 1-323385

KNOB-3 PRONG

$5.49

$

In Stock, Qty 20+

0

5

Exmark 1-323417

WASHER

$3.49

$

In Stock, Qty 20+

0

6

Exmark 1-603805

PULLEY-IDLER

$54.99

$

In Stock, Qty 14

0

7

Exmark 1-633456

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

0

8

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 9

0

9

Exmark 103-3037

BUSHING,SPLINED

$22.99

$

In Stock, Qty 20+

0

10

Exmark 116-6317

SPRING-EXTENSION

$28.99

$

In Stock, Qty 11

0

11

Exmark 103-8103-01

LATCH,BELT SHIELD

$11.99

$

Usually ships in 3-6 days

0

12

Exmark 103-8415

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 12

0

13

Exmark 103-9423-01

DEFLECTOR,DISCHARGE

$28.99

$

Usually ships in 3-6 days

0

14

Exmark 109-2135

SHIELD, BELT RH 725 W/DEC

$187.99

$

Usually ships in 3-6 days

0

14:20

Exmark 1-513742

DECAL,NO STEP

$5.99

$

In Stock, Qty 10

0

15

Exmark 109-2134

SHIELD,BELT LH 725 W/DECA

$187.99

$

Usually ships in 3-6 days

0

15:20

Exmark 1-513742

DECAL,NO STEP

$5.99

$

In Stock, Qty 10

0

16

Exmark 103-9522

SPACER,SPLINED STEPPED

$6.99

$

In Stock, Qty 9

0

17

Exmark 103-9523

SPACER,SPLINED

$8.49

$

In Stock, only 2 left!

0

18

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 19

0

19

Exmark 105-7699

STRIP-SEAL

$9.49

$

In Stock, Qty 20+

0

20

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

21

Exmark 109-2095

KIT, IDLER ARM W/BEARINGS

$229.99

$

In Stock, only 2 left!

0

22

Exmark 109-0929

SHEAVE,BLADE DRIVE 7.25

$49.99

$

In Stock, Qty 6

0

23

Exmark 109-1039-01

WLD,DOGLEG 725

$227.99

$

Usually ships in 3-6 days

0

24

Exmark 109-1044-01

WLD,BAFFLE FRT ADJ LH 725

$290.99

$

Usually ships in 3-6 days

0

25

Exmark 109-1047-01

WLD,BAFFLE FRT ADJ RH 725

$290.99

$

Usually ships in 3-6 days

0

26

Exmark 109-2099

ASM, DISCHARGE CHUTE

$215.99

$

In Stock, only 1 left!

0

26:1

Exmark 109-2739

CHUTE,DISCHARGE LZ

$91.99

$

Usually ships in 3-6 days

0

26:2

Exmark 109-0498-01

HINGE,DISCHARGE CHUTE

$92.99

$

Usually ships in 3-6 days

0

26:3

Exmark 3256-82

WASHER-FLAT

$0.99

$

In Stock, Qty 7

0

26:4

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 19

0

26:5

Exmark 3230-22

SCREW-CARR
(Superseded to 3230-22)

$2.49

$

In Stock, only 2 left!

0

27

Exmark 109-2796

PULLEY,IDLER 6"

$44.99

$

In Stock, Qty 14

0

28

Exmark 109-5532-01

BAFFLE,SCROLL 725

$132.99

$

Usually ships in 3-6 days

0

29

Exmark 109-6471

109-6471-S
(Superseded to 109-6471-S)

$46.99

$

In Stock, only 1 left!

0

29

Exmark 109-6465

109-6465-S
(Superseded to 109-6465-S)

$46.99

$

In Stock, Qty 15

0

29

Exmark 109-5879

109-5879-S
(Superseded to 109-5879-S)

Note: Requires installation of mulch kit for proper mulching. See your Exmark dealer for details.

$50.99

$

In Stock, Qty 9

0

29

Exmark 103-9631

116-5501-S
(Superseded to 116-5501-S)

$56.99

$

In Stock, Qty 5

0

29

Exmark 103-9625

116-5501-S
(Superseded to 116-5501-S)

$56.99

$

In Stock, Qty 5

0

29

Exmark 103-9622

103-9622-S
(Superseded to 103-9622-S)

$50.99

$

Usually ships in 3-6 days

0

30

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

Usually ships in 3-6 days

0

31

Exmark 109-6917

ASM,SPINDLE HOUSING

$521.99

$

In Stock, Qty 7

0

31:1

Exmark 103-9504

GUARD,BOTTOM

$11.99

$

In Stock, only 2 left!

0

31:2

Exmark 103-9539

ASM,CUTTER HOUSING

$374.99

$

In Stock, only 2 left!

0

31:3

Exmark 109-0916

NUT, SPINDLE 7/8-14

$24.99

$

In Stock, only 1 left!

0

31:4

Exmark 109-6881

SPINDLE,DOUBLE SPLINE

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations

$129.99

$

In Stock, only 1 left!

0

32

Exmark 109-7033

NUT-FLANGE, CENTERLOCK

$2.99

$

In Stock, Qty 20+

0

33

Exmark 109-9220

SCREW,SEMS 1/2-20 X 2.19

$8.49

$

In Stock, Qty 20+

0

34

Exmark 116-8131

AXLE, ROLLER

$12.99

$

In Stock, Qty 5

0

36

Exmark 116-9362

SCREW-HH 3/8-16 X 3 3/4 GR 8

$2.99

$

In Stock, Qty 20+

0

37

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

39

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

40

Exmark 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

41

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

43

Exmark 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 8

0

44

Exmark 3230-22

SCREW-CARR
(Superseded to 3230-22)

$2.49

$

In Stock, only 2 left!

0

45

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

46

Exmark 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

48

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

49

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

50

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

54

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

55

Exmark 98-5961

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

56

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

57

Exmark 103-3249

KIT,JACKSHAFT 60/72-3750

$464.99

$

In Stock, only 1 left!

0

57:1

ASM, Jackshaft 60 & 72 - 3750

Note: Not serviced separately

$

$

Not available

57:1:2

Exmark 103-2535

SPACER-GUARD, BOTTOM

$12.99

$

In Stock, only 3 left!

0

57:1:3

Exmark 1-513208

WASHER-SPRING

$8.99

$

In Stock, only 2 left!

0

57:1:4

Exmark 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

57:1:5

Exmark 1-643393

JACKSHAFT

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations

$33.99

$

In Stock, only 1 left!

0

57:1:6

Exmark 103-3046

SHEAVE, JACKSHAFT DOUBLE

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations

$111.99

$

In Stock, only 3 left!

0

58

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

59

Exmark 1-643052

BELT-V
(Superseded to 1-643052-SL)

$212.99

$

In Stock, Qty 10

0

60

Exmark 116-9981

KIT, ANTI-SCALP ROLLER

$52.99

$

In Stock, Qty 20+

0

61

Exmark 103-9746

KIT, JACKSHAFT ASSY

$263.99

$

In Stock, only 1 left!
