LZDS902K725 - Exmark 72" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel (SN: 313000000 - 313999999) (2013) Idler Arm W/Bearings Kit No. 109-2095 Parts Diagram

72" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel

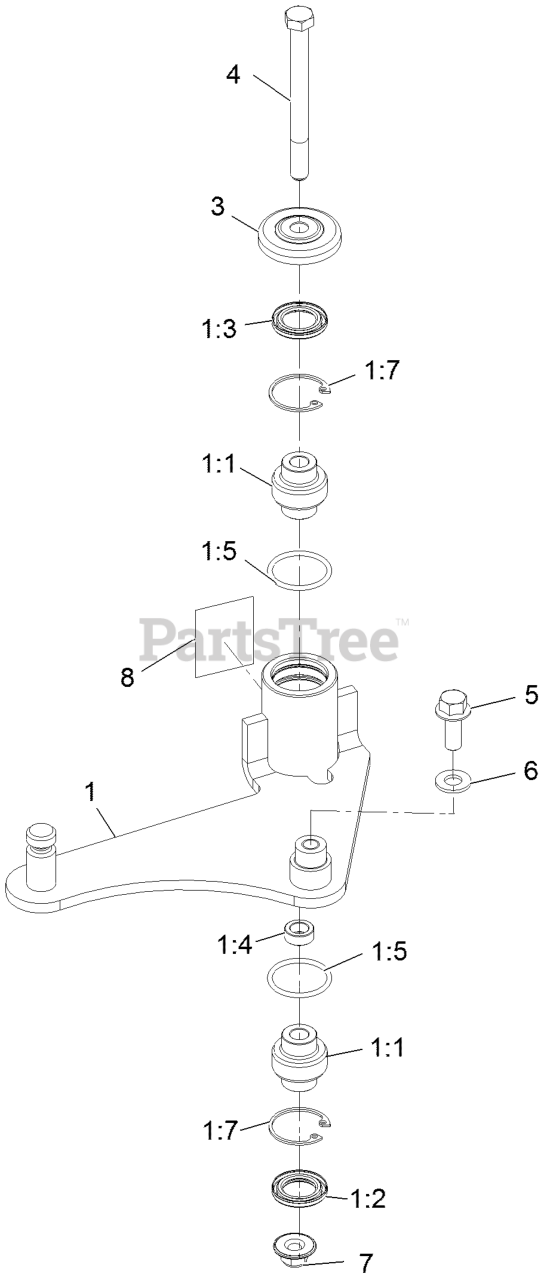

Idler Arm W/Bearings Kit No. 109-2095 Parts Diagram

  • Title

1

ASM,Deck Idler

Note: Not serviced separately

$

$

Not available

1:1

Exmark 103-3504

BEARING-SPHERICAL

$25.99

$

In Stock, Qty 20+

0

1:2

Exmark 103-3505

SEAL-LIP, DOUBLE

$5.49

$

In Stock, Qty 20+

0

1:3

Exmark 103-3506

SEAL-LIP, SINGLE

$5.49

$

In Stock, Qty 19

0

1:4

Exmark 103-5677

SPACER

$2.99

$

In Stock, only 3 left!

0

1:5

Exmark 106-7159

O-RING

$1.49

$

In Stock, Qty 20+

0

1:7

Exmark 32120-10

RING-SNAP

$1.49

$

In Stock, Qty 20+

0

3

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 9

0

4

Exmark 98-5961

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

5

Exmark 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

6

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

Usually ships in 3-6 days

0

8

Exmark 103-5858

DECAL,GREASE

$5.99

$

Usually ships in 3-6 days

0
