LZDS902K725 - Exmark 72" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel (SN: 312000000 - 312999999) (2012) Motion Controls Parts Diagram

72" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel

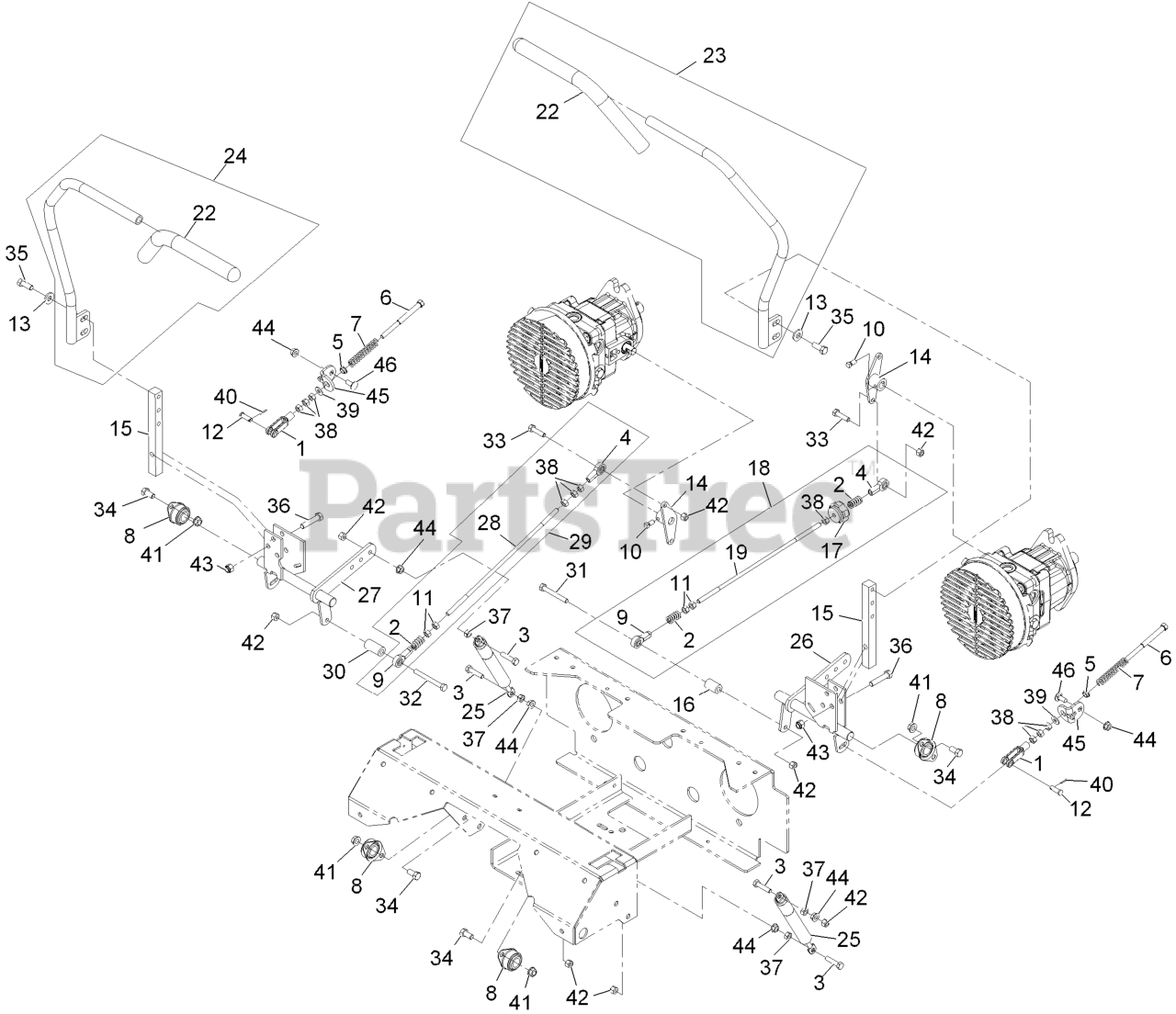

Motion Controls Parts Diagram

  • Title

1

Exmark 1-303105

YOKE-ADJUSTABLE

$12.99

$

In Stock, only 1 left!

0

2

Exmark 1-323245

SPRING-COMPRESSION

$6.49

$

In Stock, only 2 left!

0

3

Exmark 1-403180

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

4

Exmark 1-543017

BALLJOINT-RH

$20.99

$

In Stock, only 4 left!

0

5

Exmark 109-3769

BUSHING-NYLON, FLANGED

$

$

Not available

6

Exmark 1-603737

BOLT-RETURN, NEUTRAL

$9.49

$

In Stock, only 2 left!

0

7

Exmark 1-603807

SPRING-RETURN, NEUTRAL

$3.49

$

In Stock, Qty 17

0

8

Exmark 1-633102

BEARING-FLANGE, SIDE

$18.99

$

In Stock, only 2 left!

0

9

Exmark 1-633152

BALLJOINT-LH

$20.99

$

In Stock, only 3 left!

0

10

Exmark 1-803022

SCREW-SET

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$2.99

$

In Stock, Qty 20+

0

11

Exmark 1-804524

NUT

$2.99

$

In Stock, only 2 left!

0

12

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, only 2 left!

0

13

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

14

Exmark 103-0194-03

ARM-CONTROL, HYDRO

$67.99

$

Usually ships in 3-6 days

0

15

Exmark 103-0407

ARM-SHAFT, CONTROL

$30.99

$

In Stock, only 2 left!

0

16

Exmark 103-1361

SPACER-HYDRO CONTROL, LH

$7.99

$

Usually ships in 3-6 days

0

17

Exmark 103-3060

KNOB-TRACKING

$6.99

$

In Stock, only 2 left!

0

18

Exmark 103-3062

TRACKING ROD ASM

$90.99

$

Usually ships in 3-6 days

0

19

Exmark 103-3065

LINK,TRACKING ROD XP

$8.99

$

Usually ships in 3-6 days

0

22

Exmark 103-3456

GRIP,CONTROL LEVER

$15.99

$

In Stock, Qty 7

0

23

Exmark 103-3457

ASM,LH LEVER/GRIP

$86.99

$

In Stock, only 2 left!

0

24

Exmark 103-3458

ASM.RH LEVER/GRIP

$86.99

$

In Stock, only 2 left!

0

25

Exmark 109-2339

DAMPER-CONTROL, MOTION

$76.99

$

In Stock, only 3 left!

0

26

Exmark 109-3983

109-3979
(Superseded to 109-3979)

$

$

Not available

27

Exmark 109-3980

CONTROL-MOTION, RH

$142.99

$

Usually ships in 3-6 days

0

28

Exmark 103-5182

LINK,XP HYDRO CONNECT RH

$42.99

$

Usually ships in 3-6 days

0

29

Exmark 103-5190

RH HYD CONNECT LINK ASM

$83.99

$

Usually ships in 3-6 days

0

30

Exmark 103-5192

SPACER-CONTROL, HYD

$34.99

$

Usually ships in 3-6 days

0

31

Exmark 322-12

SCREW-HH

$2.49

$

In Stock, Qty 10

0

32

Exmark 322-14

SCREW-HH

$2.99

$

In Stock, only 4 left!

0

33

Exmark 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

34

Exmark 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

35

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

36

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

37

Exmark 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

38

Exmark 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 11

0

39

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

40

Exmark 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

41

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

42

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

43

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

44

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

45

Exmark 109-3908

TAB-ADJUSTMENT

$6.49

$

Usually ships in 3-6 days

0

46

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0
