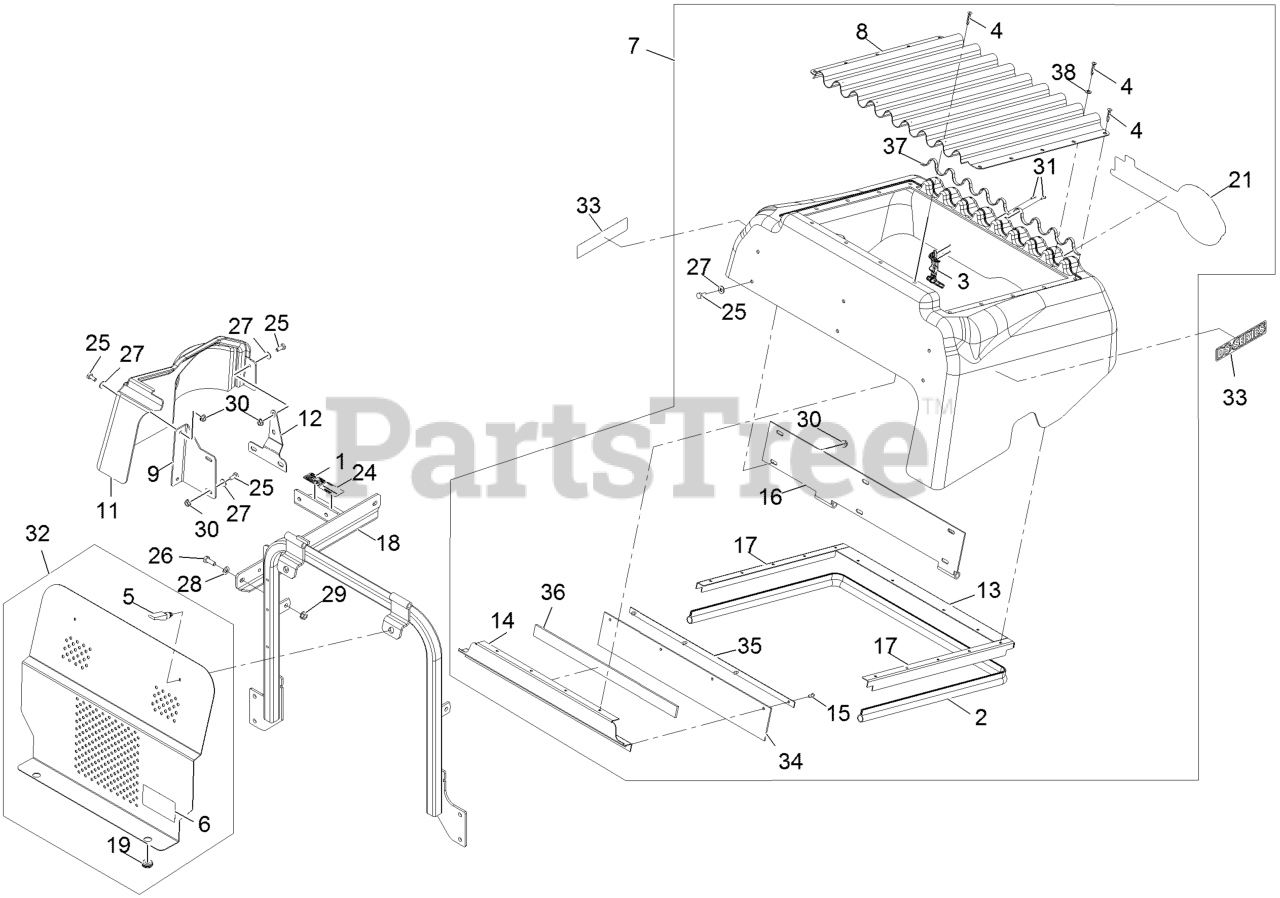

LZDS902K725 - Exmark 72" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel (SN: 312000000 - 312999999) (2012) Hood and Panel Assembly Parts Diagram

72" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel

Hood and Panel Assembly Parts Diagram

  • Title

1

Exmark 103-2076

DECAL-CAUTION

$6.49

$

In Stock, only 1 left!

0

2

Exmark 116-5325

Seal-Trim 54.6

$

$

Currently unavailable

3

Exmark 1-643188

LATCH-RUBBER

$22.99

$

In Stock, only 2 left!

0

4

Exmark 1-803072

RIVET

$2.99

$

Usually ships in 3-6 days

0

5

Exmark 74-5950

LATCH-SWELL

$22.99

$

In Stock, Qty 10

0

6

Exmark 116-0127

DECAL,HYDRO BELT ROUTING

$10.99

$

Usually ships in 3-6 days

0

7

Exmark 116-6394

HOOD ASM, D902

$1061.99

$

Usually ships in 3-6 days

0

8

Exmark 103-9201-03

SCREEN, RADIATOR

$251.99

$

Usually ships in 3-6 days

0

9

Exmark 103-9206-03

BRACKET,FRONT COVER

$25.99

$

Usually ships in 3-6 days

0

11

Exmark 103-9221

PANEL, SIDE

$410.99

$

Usually ships in 3-6 days

0

12

Exmark 103-9222-03

BRACKET,REAR COVER

$26.99

$

Usually ships in 3-6 days

0

13

Exmark 116-5323-03

MOUNT-SEAL REAR

$33.99

$

Usually ships in 3-6 days

0

14

Exmark 116-5302-03

MOUNT-SEAL FRONT

$38.99

$

Usually ships in 3-6 days

0

15

Exmark 1-803073

Pop Rivet.187X.188/.25Al(Ad64Abs)

$

$

Currently unavailable

16

Exmark 103-9226-03

WLD, HINGE

$94.99

$

Usually ships in 3-6 days

0

17

Exmark 116-5324-03

MOUNT-SEAL SIDE

$33.99

$

Usually ships in 3-6 days

0

18

Exmark 109-3257

ASM,AIR CLNR BRKT W/DECAL

$142.99

$

Usually ships in 3-6 days

0

19

Exmark 109-0023

GROMMET

$5.99

$

In Stock, Qty 11

0

21

Exmark 109-1801

DECAL,EXMARK

$35.99

$

In Stock, only 2 left!

0

24

Exmark 110-0806

DECAL-CAUTION

$9.49

$

Usually ships in 3-6 days

0

25

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

26

Exmark 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

27

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

29

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

30

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

31

Exmark 923786

3269-24
(Superseded to 3269-24)

$2.99

$

In Stock, Qty 12

0

32

Exmark 109-3201

ASM,AIR DEFLECTOR W/ DECA

$255.99

$

Usually ships in 3-6 days

0

33

Exmark 116-6992

DECAL, DS SERIES

$15.99

$

Usually ships in 3-6 days

0

34

Exmark 116-5160

SEAL-RADIATOR HOOD

$22.99

$

Usually ships in 3-6 days

0

35

Exmark 116-5319-03

PLATE-SEAL BACKUP

$15.99

$

Usually ships in 3-6 days

0

36

Exmark 116-5348

SEAL-FRONT SCREEN

$5.99

$

Usually ships in 3-6 days

0

37

Exmark 116-5349

SEAL-REAR SCREEN

$2.99

$

Usually ships in 3-6 days

0

38

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
