LZDS902K725 - Exmark 72" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel (SN: 312000000 - 312999999) (2012) Engine Assembly Parts Diagram

72" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel

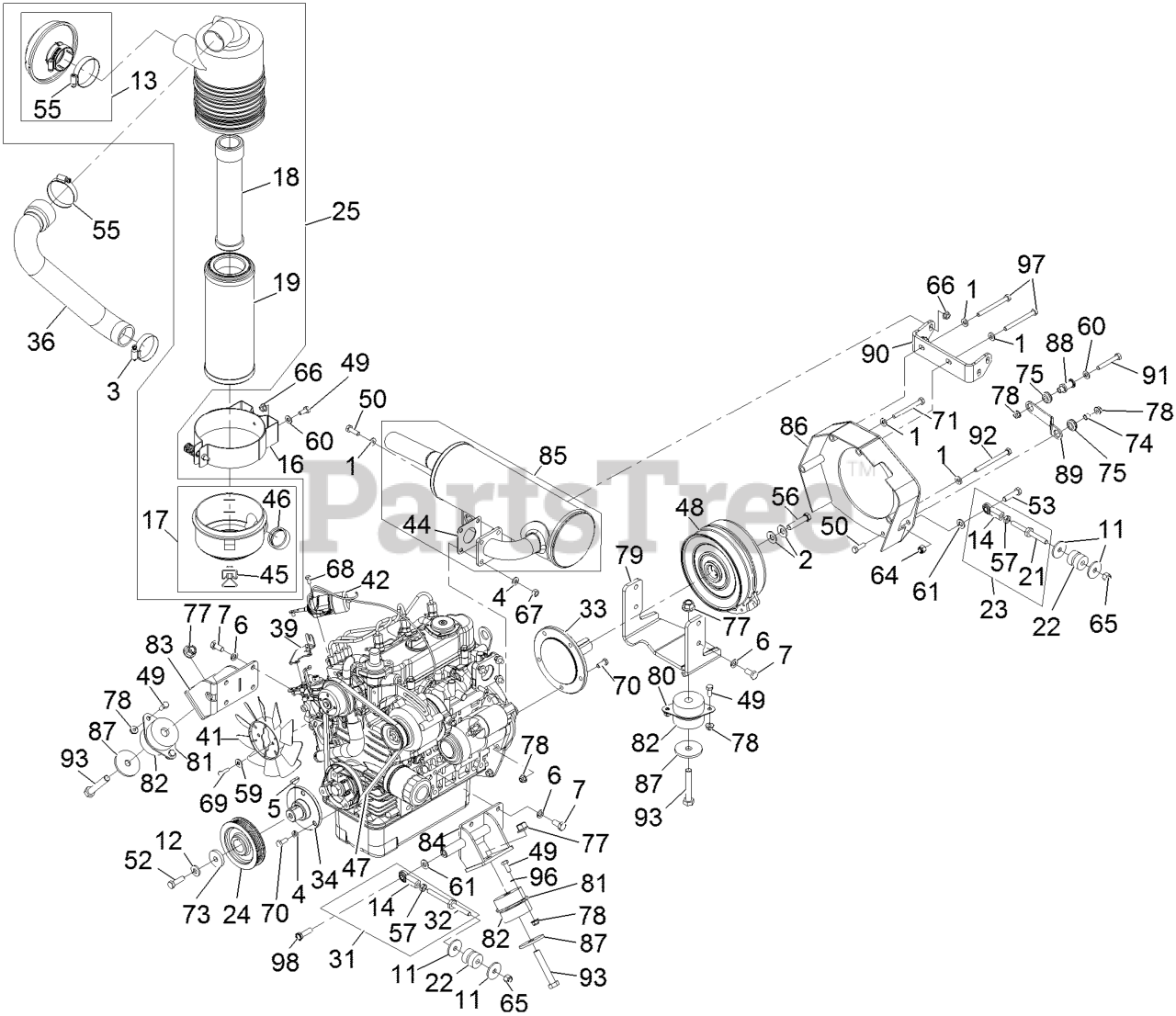

Engine Assembly Parts Diagram

  • Title

1

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

2

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 10

0

3

Exmark 1-643009

CLAMP-HOSE

$13.99

$

Usually ships in 3-6 days

0

4

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

0

5

Exmark 1-807014

KEY-WOODRUFF

$3.49

$

Usually ships in 3-6 days

0

6

Exmark 42-9600

Washer-Lock M10

$

$

Not available

7

Exmark 63-7790

SCREW-CAP

$3.99

$

Usually ships in 3-6 days

0

11

Exmark 93-6099

WASHER

$3.99

$

Usually ships in 3-6 days

0

12

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

13

Exmark 100-2436

HOOD-CLEANER, 2" AIR INTA

$67.99

$

Usually ships in 3-6 days

0

14

Exmark 103-0608

JOINT-BALL, END

$31.99

$

In Stock, Qty 5

0

16

Exmark 103-1058

BRACKET-FILTER, AIR

$109.99

$

Usually ships in 3-6 days

0

17

Exmark 103-1060

COVER-FILTER, AIR

$222.99

$

Usually ships in 3-6 days

0

18

Exmark 103-1326

FILTER-AIR, SAFETY

$38.99

$

In Stock, only 2 left!

0

19

Exmark 103-1327

FILTER-AIR

$34.99

$

In Stock, Qty 6

0

21

Exmark 103-3567

LINK,REAR A-T AXIAL

$25.99

$

Usually ships in 3-6 days

0

22

Exmark 103-3568

ISOLATOR-LINK

$53.99

$

Usually ships in 3-6 days

0

23

Exmark 103-3745

BALL JOINT LINK ASM

$102.99

$

Usually ships in 3-6 days

0

24

Exmark 103-4718

SHEAVE,5K 4"PD POLY-V

$139.99

$

Usually ships in 3-6 days

0

25

Exmark 103-5178

FILTER-AIR

$319.99

$

In Stock, only 1 left!

0

31

Exmark 109-8528

ASM, A-T LINK

$46.99

$

Usually ships in 3-6 days

0

32

Exmark 103-7544

LINK,REAR A-T AXIAL

$27.99

$

Usually ships in 3-6 days

0

33

Exmark 109-9873

SHAFT,KUBOTA 902 STUB

$347.99

$

Usually ships in 3-6 days

0

34

Exmark 103-7556

HUB,PUMP DRIVE

$130.99

$

Usually ships in 3-6 days

0

36

Exmark 103-7597

HOSE,AIR INTAKE D902(8015

$113.99

$

Usually ships in 3-6 days

0

39

Exmark 108-5922

BRACKET-SUPPORT, THROTTLE

$20.99

$

Usually ships in 3-6 days

0

41

Exmark 109-0789

FAN,COOLING 7"

$43.99

$

In Stock, only 1 left!

0

42

Exmark 109-1211

SOLENOID,FUEL

$704.99

$

Usually ships in 3-6 days

0

44

Exmark 99-8343

GASKET-MUFFLER

$15.99

$

In Stock, only 3 left!

0

45

Exmark 99-3174

CLIP-CLEANER, AIR

$17.99

$

In Stock, Qty 11

0

46

Exmark 109-2820

EJECTOR, NELSON AIR CLEAN

$57.99

$

In Stock, Qty 9

0

47

Exmark 109-2901

BELT,KUBOTA 902 ALT

$108.99

$

In Stock, only 4 left!

0

48

Exmark 116-1610

116-1627
(Superseded to 116-1627)

$701.99

$

Usually ships in 3-6 days

0

49

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

50

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

52

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

53

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

55

Exmark 2412-42

CLAMP-HOSE

$9.99

$

Usually ships in 3-6 days

0

56

Exmark 3212-8

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$6.49

$

In Stock, only 4 left!

0

57

Exmark 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

59

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

60

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

61

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

64

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

65

Exmark 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

66

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

67

Exmark 33014-00

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

68

Exmark 33113-012

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

69

Exmark 33113-020

SCREW-HH

$0.99

$

In Stock, Qty 10

0

70

Exmark 33114-020

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$0.99

$

In Stock, Qty 13

0

71

Exmark 33114-080

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

73

Exmark 1-543610

WASHER-CLUTCH

$6.49

$

In Stock, Qty 6

0

74

Exmark 1-633545

SPACER

$2.99

$

In Stock, Qty 15

0

75

Exmark 1-633630

GROMMET

$5.49

$

In Stock, Qty 8

0

77

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

78

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

79

Exmark 116-2638-03

BRACKET,ENGINE MOUNT

$108.99

$

Usually ships in 3-6 days

0

80

Exmark 116-2641-03

FLANGE ASM

$25.99

$

Usually ships in 3-6 days

0

81

Exmark 116-2725-03

FLANGE-11GA

$9.49

$

Usually ships in 3-6 days

0

82

Exmark 116-4433

ISOLATOR,ENGINE

$56.99

$

Usually ships in 3-6 days

0

83

Exmark 116-4513-03

ENGINE MOUNT-RH

$60.99

$

Usually ships in 3-6 days

0

84

Exmark 116-4514-03

ENGINE MOUNT-LH

$88.99

$

Usually ships in 3-6 days

0

85

Exmark 116-7108

MUFFLER KIT - KUBOTA

$552.99

$

Usually ships in 3-6 days

0

86

Exmark 116-5089-03

WLD,FLYWHEEL COVER

$225.99

$

Usually ships in 3-6 days

0

87

Exmark 116-5142

WASHER

$14.99

$

Usually ships in 3-6 days

0

88

Exmark 116-5295

CLUTCH STANDOFF

$36.99

$

In Stock, only 1 left!

0

89

Exmark 116-5296-03

CLUTCH LINK

$16.99

$

In Stock, only 3 left!

0

90

Exmark 116-6179-03

SUPPORT-MUFFLER

$49.99

$

Usually ships in 3-6 days

0

91

Exmark 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

92

Exmark 322-23

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

93

Exmark 325-12

SCREW-HH

$6.49

$

In Stock, only 2 left!

0

96

Exmark 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

97

Exmark 119-4866

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

98

Exmark 3235-22

SCREW-HH, LOCK

$2.99

$

In Stock, only 2 left!

0
