Exmark LZDS902K60RD - Exmark 60" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel (SN: 314000000 - 314999999) (2014) Engine Assembly Parts Lookup with Diagrams

1

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 20+

2

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

3

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

4

Exmark 33113-012

SCREW-HH

$0.99

$

Usually ships in 3-6 days

5

Exmark 42-9600

Washer-Lock M10

$

Not available 

6

Exmark 63-7790

SCREW-CAP

$3.99

$

Usually ships in 3-6 days

7

Exmark 93-6099

WASHER

$3.99

$

Usually ships in 3-6 days

8

Exmark 33113-020

SCREW-HH

$0.99

$

In Stock, Qty 10

9

Exmark 103-3568

ISOLATOR-LINK

$56.99

$

Usually ships in 3-6 days

10

Exmark 103-3745

BALL JOINT LINK ASM

$109.99

$

Usually ships in 3-6 days

10:1

Exmark 103-0608

JOINT-BALL, END

$35.99

$

In Stock, only 1 left!

10:2

Exmark 103-3567

LINK,REAR A-T AXIAL

$27.99

$

Usually ships in 3-6 days

10:3

Exmark 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 5

11

Exmark 33114-080

SCREW-HH

$6.49

$

Usually ships in 3-6 days

12

Exmark 322-23

SCREW-HH

$2.49

$

Usually ships in 3-6 days

13

Exmark 116-4514-03

ENGINE MOUNT-LH

$92.99

$

Usually ships in 3-6 days

14

Exmark 116-4513-03

ENGINE MOUNT-RH

$62.99

$

Usually ships in 3-6 days

15

Exmark 116-2638-03

BRACKET,ENGINE MOUNT

$113.99

$

Usually ships in 3-6 days

16

Exmark 109-8528

ASM, A-T LINK

$48.99

$

Usually ships in 3-6 days

16:1

Exmark 103-0608

JOINT-BALL, END

$35.99

$

In Stock, only 1 left!

16:2

Exmark 103-7544

LINK,REAR A-T AXIAL

$

Not available 

16:3

Exmark 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 5

17

Exmark 109-9873

SHAFT,KUBOTA 902 STUB

$382.99

$

Usually ships in 3-6 days

18

Exmark 103-7556

HUB,PUMP DRIVE

$

Not available 

19

Exmark 116-5089-03

WLD,FLYWHEEL COVER

$

Not available 

20

Exmark 116-7108

MUFFLER KIT - KUBOTA

$580.99

$

Usually ships in 3-6 days

21

Exmark 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

22

Exmark 126-0723

BRACKET, KD THROTTLE

$

Not available 

23

Exmark 116-6179-03

SUPPORT-MUFFLER

$51.99

$

Usually ships in 3-6 days

24

Exmark 109-0789

FAN,COOLING 7"

$48.99

$

In Stock, only 1 left!

25

Exmark 109-1211

SOLENOID,FUEL

$782.99

$

Usually ships in 3-6 days

26

Exmark 116-5142

WASHER

$14.99

$

Usually ships in 3-6 days

27

Exmark 116-1610

116-1627

(Superseded to 116-1627) 

$711.99

$

Usually ships in 3-6 days

28

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

29

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

30

Exmark 33114-020

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$0.99

$

In Stock, Qty 13

31

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

32

Exmark 325-12

SCREW-HH

$6.49

$

In Stock, Qty 20+

33

Exmark 3212-8

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads

$6.49

$

In Stock, only 4 left!

34

Exmark 3256-2

WASHER-FLAT

(Superseded to 3256-2) 

$0.99

$

In Stock, Qty 18

35

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

36

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

37

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

38

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

40

Exmark 116-2641-03

FLANGE ASM

$

Not available 

41

Exmark 116-4433

ISOLATOR,ENGINE

$62.99

$

Usually ships in 3-6 days

42

Exmark 116-2725-03

FLANGE-11GA

$9.49

$

Usually ships in 3-6 days

43

Exmark 116-5296-03

CLUTCH LINK

$18.99

$

In Stock, only 3 left!

44

Exmark 1-633630

GROMMET

$5.99

$

In Stock, Qty 8

45

Exmark 116-5295

CLUTCH STANDOFF

$37.99

$

In Stock, only 1 left!

46

Exmark 1-633545

SPACER

$2.99

$

In Stock, Qty 20+

47

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

48

Exmark 322-11

SCREW-HH

(Superseded to 120-9738) 

$1.49

$

In Stock, Qty 20+

49

Exmark 3235-22

SCREW-HH, LOCK

$2.99

$

In Stock, only 2 left!

50

Exmark 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

51

Exmark 119-4866

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads

$3.99

$

Usually ships in 3-6 days

52

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

53

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

54

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

55

Exmark 103-4718

SHEAVE,5K 4"PD POLY-V

$141.99

$

Usually ships in 3-6 days

56

Exmark 1-543610

WASHER-CLUTCH

$6.49

$

In Stock, Qty 14

57

Exmark 1-807014

KEY-WOODRUFF

$3.99

$

Usually ships in 3-6 days

58

Exmark 109-2901

BELT,KUBOTA 902 ALT

$112.99

$

In Stock, only 3 left!

59

Exmark 33014-00

NUT-HEX

$0.99

$

In Stock, Qty 20+

60

Exmark 99-8343

GASKET-MUFFLER

$17.99

$

In Stock, Qty 7

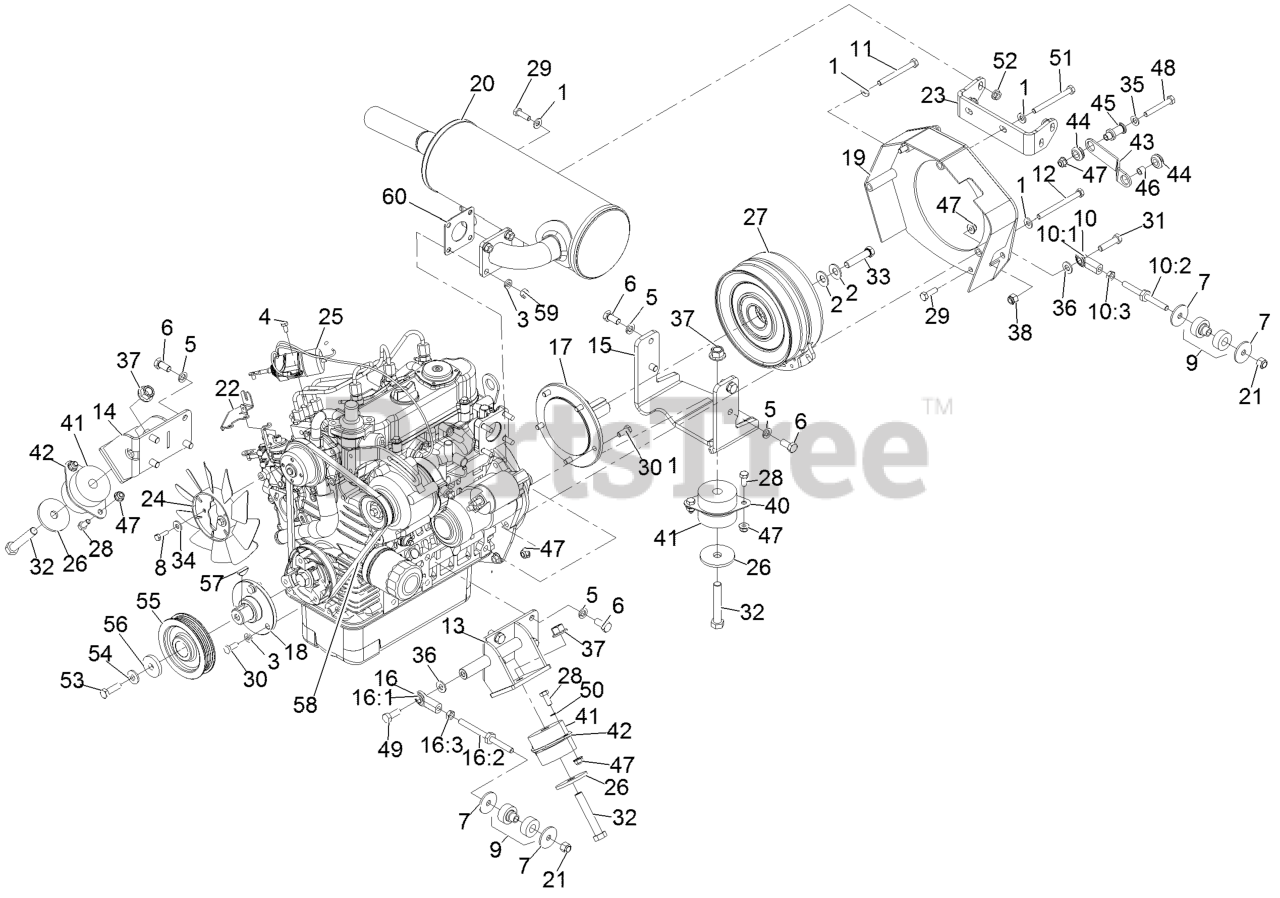

LZDS902K60RD - Exmark 60" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel (SN: 314000000 - 314999999) (2014) Engine Assembly Parts Diagram

Engine Assembly Parts Diagram
