LZDS902K60RD - Exmark 60" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel (SN: 313000000 - 313999999) (2013) Tightener Arm W/Pulley Assembly No. 116-9286 Parts Diagram

60" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel

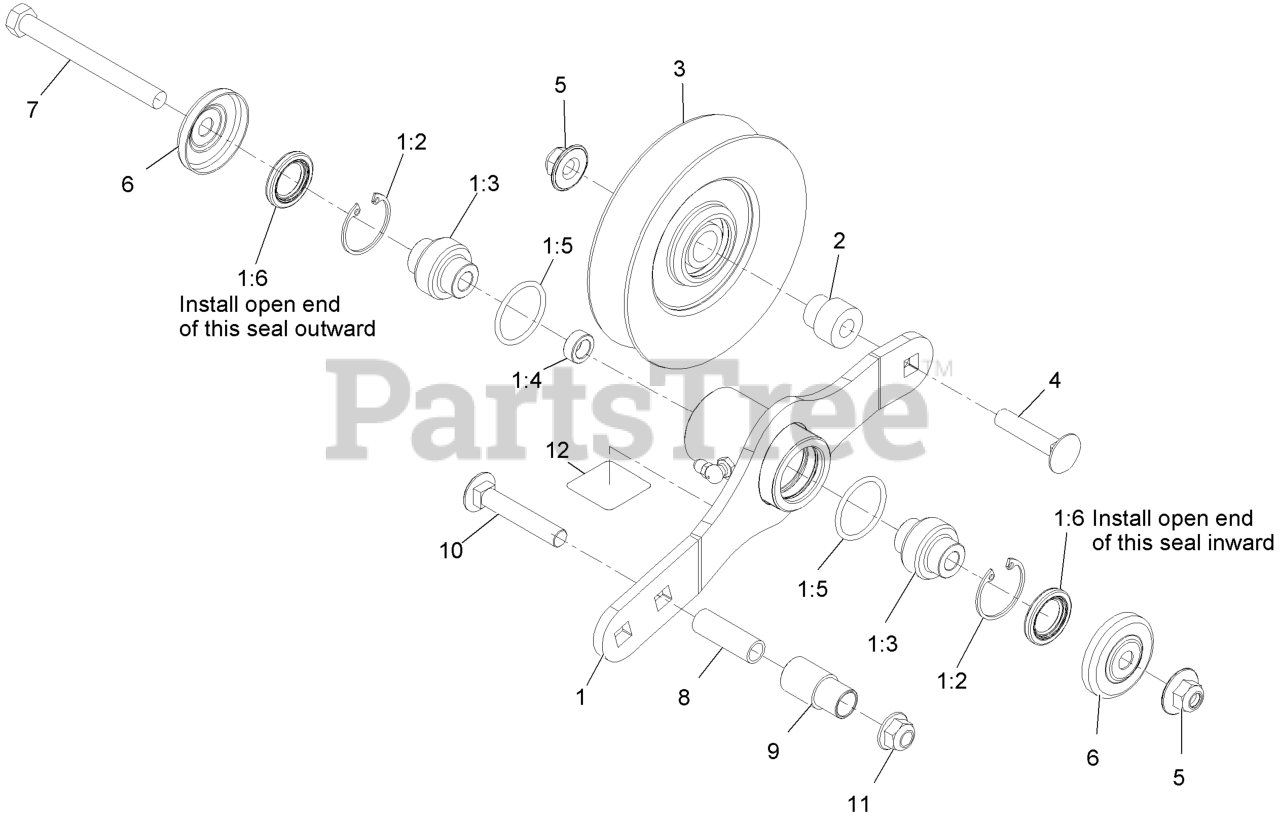

Tightener Arm W/Pulley Assembly No. 116-9286 Parts Diagram

  • Title

1

ASM-Ttnr Arm W/Bearings

Note: Not serviced separately

$

$

Not available

1:2

Exmark 32120-10

RING-SNAP

$1.49

$

In Stock, Qty 20+

0

1:3

Exmark 103-3504

BEARING-SPHERICAL

$25.99

$

In Stock, Qty 20+

0

1:4

Exmark 103-5677

SPACER

$2.99

$

In Stock, only 3 left!

0

1:5

Exmark 106-7159

O-RING

$1.49

$

In Stock, Qty 20+

0

1:6

Exmark 103-3506

SEAL-LIP, SINGLE

$5.49

$

In Stock, Qty 19

0

2

Exmark 1-603496

BUSHING-IDLER

$7.49

$

In Stock, Qty 20+

0

3

Exmark 1-603805

PULLEY-IDLER

$54.99

$

In Stock, Qty 14

0

4

Exmark 3231-5

SCREW-CARR

$1.49

$

In Stock, only 2 left!

0

5

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

Usually ships in 3-6 days

0

6

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 9

0

7

Exmark 323-42

SCREW-HH

$8.49

$

Usually ships in 3-6 days

0

8

Exmark 109-8754

SPACER

$16.99

$

Usually ships in 3-6 days

0

9

Exmark 109-8866

BUSHING,PLASTIC

$21.99

$

Usually ships in 3-6 days

0

10

Exmark 3231-7

Bolt-Carriage 3/8-16 X 2 1/4

$6.99

$

In Stock, Qty 15

0

11

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Exmark 103-5858

DECAL,GREASE

$5.99

$

Usually ships in 3-6 days

0
