LZDS902K605 - Exmark 60" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel (SN: 313000000 - 313999999) (2013) Mule Drive Assembly Parts Diagram

60" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel

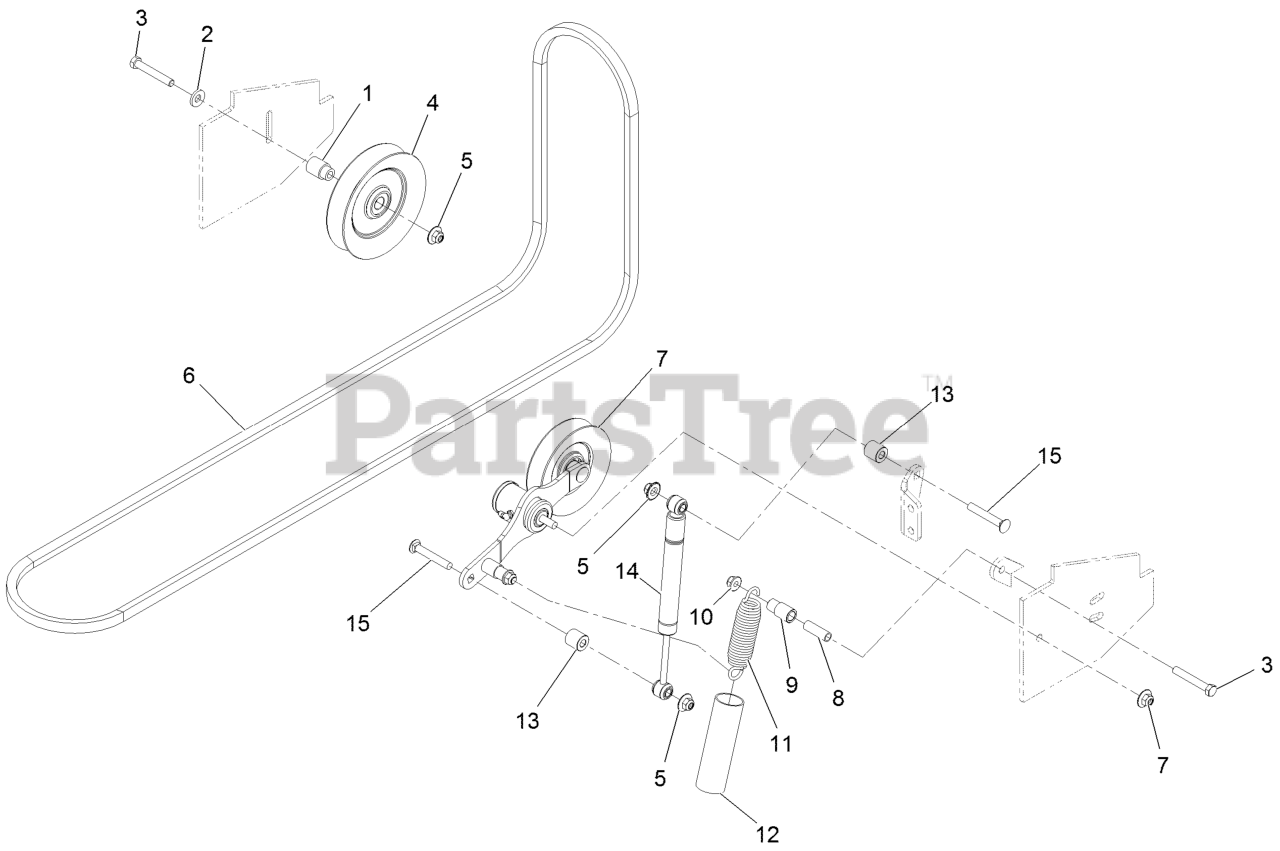

Mule Drive Assembly Parts Diagram

  • Title

1

Exmark 103-2627

BUSHING-IDLER

$3.49

$

In Stock, Qty 20+

0

2

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

3

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 16

0

4

Exmark 1-633166

PULLEY-IDLER

$56.99

$

In Stock, only 4 left!

0

5

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

Usually ships in 3-6 days

0

6

Exmark 109-4199

BELT,B 123.2
(Superseded to 109-4199-SL)

$112.99

$

In Stock, only 1 left!

0

7

Exmark 116-9286

ASM-TTNR ARM W/PULLEY

$224.99

$

Usually ships in 3-6 days

0

8

Exmark 109-8754

SPACER

$16.99

$

Usually ships in 3-6 days

0

9

Exmark 109-8866

BUSHING,PLASTIC

$21.99

$

Usually ships in 3-6 days

0

10

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Exmark 116-6316

SPRING-EXTENSION

$23.99

$

In Stock, only 3 left!

0

12

Exmark 116-0932

DAMPENER,SPRING

$5.49

$

Usually ships in 3-6 days

0

13

Exmark 116-9300

SPACER-.39IDX.88ODX.88L

$16.99

$

In Stock, only 4 left!

0

14

Exmark 116-9280

DAMPER-MULE BELT DRIVE

$138.99

$

Usually ships in 3-6 days

0

15

Exmark 3231-31

SCREW-CARR

$6.99

$

In Stock, Qty 20+

0
