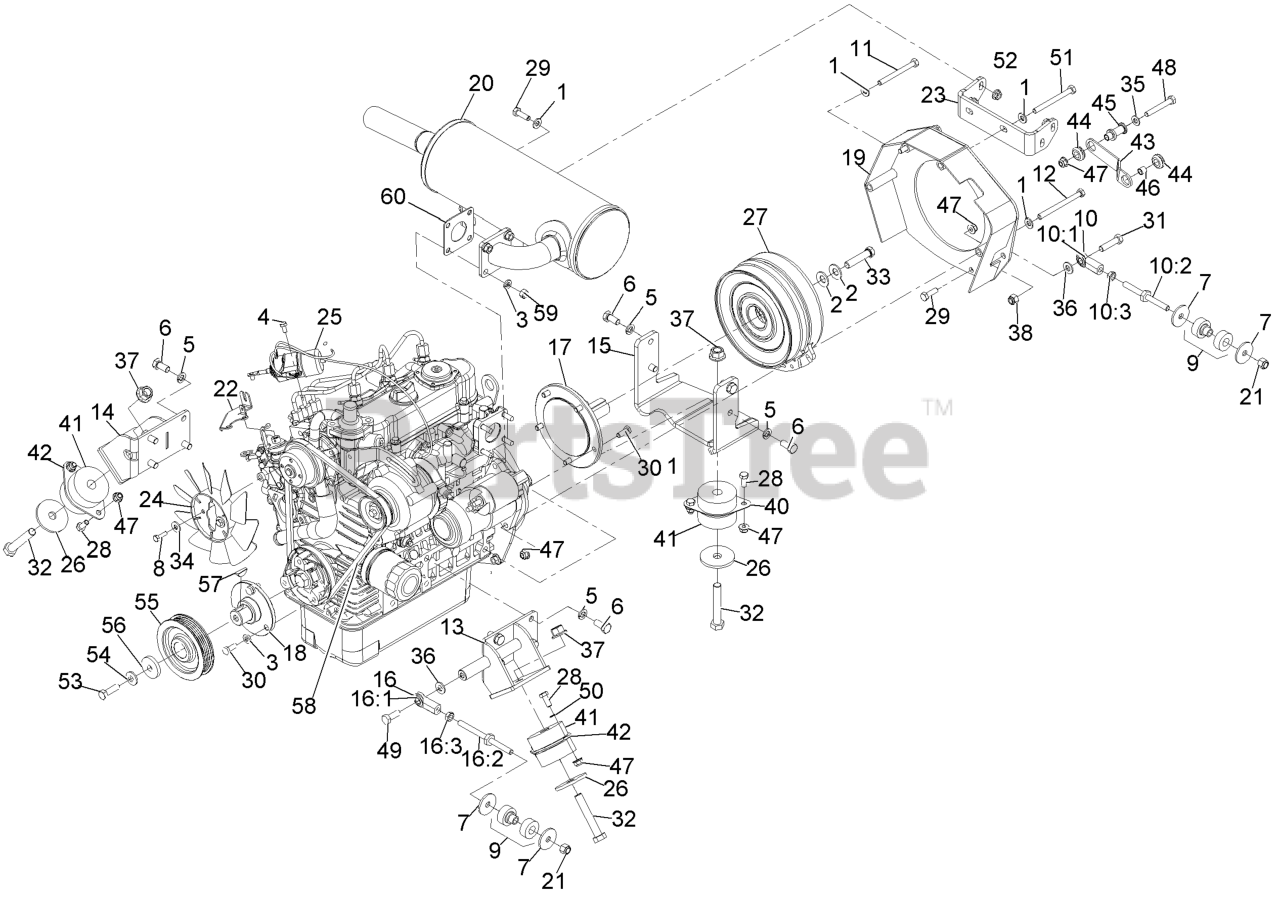

LZDS902K605 - Exmark 60" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel (SN: 313000000 - 313999999) (2013) Engine Assembly Parts Diagram

60" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel

Engine Assembly Parts Diagram

  • Title

1

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 3 left!

0

2

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

3

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 7

0

4

Exmark 33113-012

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

5

Exmark 42-9600

Washer-Lock M10

$

$

Not available

6

Exmark 63-7790

SCREW-CAP

$3.99

$

Usually ships in 3-6 days

0

7

Exmark 93-6099

WASHER

$3.99

$

Usually ships in 3-6 days

0

8

Exmark 33113-020

SCREW-HH

$0.99

$

In Stock, Qty 10

0

9

Exmark 103-3568

ISOLATOR-LINK

$53.99

$

Usually ships in 3-6 days

0

10

Exmark 103-3745

BALL JOINT LINK ASM

$103.99

$

Usually ships in 3-6 days

0

10:1

Exmark 103-0608

JOINT-BALL, END

$33.99

$

In Stock, Qty 5

0

10:2

Exmark 103-3567

LINK,REAR A-T AXIAL

$27.99

$

Usually ships in 3-6 days

0

10:3

Exmark 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

11

Exmark 33114-080

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

12

Exmark 322-23

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

13

Exmark 116-4514-03

ENGINE MOUNT-LH

$92.99

$

Usually ships in 3-6 days

0

14

Exmark 116-4513-03

ENGINE MOUNT-RH

$62.99

$

Usually ships in 3-6 days

0

15

Exmark 116-2638-03

BRACKET,ENGINE MOUNT

$113.99

$

Usually ships in 3-6 days

0

16

Exmark 109-8528

ASM, A-T LINK

$48.99

$

Usually ships in 3-6 days

0

16:1

Exmark 103-0608

JOINT-BALL, END

$33.99

$

In Stock, Qty 5

0

16:2

Exmark 103-7544

LINK,REAR A-T AXIAL

$30.99

$

Usually ships in 3-6 days

0

16:3

Exmark 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

17

Exmark 109-9873

SHAFT,KUBOTA 902 STUB

$382.99

$

Usually ships in 3-6 days

0

18

Exmark 103-7556

HUB,PUMP DRIVE

$144.99

$

Usually ships in 3-6 days

0

19

Exmark 116-5089-03

WLD,FLYWHEEL COVER

$250.99

$

Usually ships in 3-6 days

0

20

Exmark 116-7108

MUFFLER KIT - KUBOTA

$580.99

$

Usually ships in 3-6 days

0

21

Exmark 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

22

Exmark 108-5922

BRACKET-SUPPORT, THROTTLE

$20.99

$

Usually ships in 3-6 days

0

23

Exmark 116-6179-03

SUPPORT-MUFFLER

$51.99

$

Usually ships in 3-6 days

0

24

Exmark 109-0789

FAN,COOLING 7"

$48.99

$

In Stock, only 1 left!

0

25

Exmark 109-1211

SOLENOID,FUEL

$782.99

$

Usually ships in 3-6 days

0

26

Exmark 116-5142

WASHER

$14.99

$

Usually ships in 3-6 days

0

27

Exmark 116-1610

116-1627
(Superseded to 116-1627)

$711.99

$

Usually ships in 3-6 days

0

28

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

29

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

30

Exmark 33114-020

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$0.99

$

In Stock, Qty 13

0

31

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

32

Exmark 325-12

SCREW-HH

$6.49

$

In Stock, Qty 20+

0

33

Exmark 3212-8

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$6.49

$

In Stock, only 4 left!

0

34

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

35

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

36

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

37

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

38

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

40

Exmark 116-2641-03

FLANGE ASM

$26.99

$

Usually ships in 3-6 days

0

41

Exmark 116-4433

ISOLATOR,ENGINE

$62.99

$

Usually ships in 3-6 days

0

42

Exmark 116-2725-03

FLANGE-11GA

$9.49

$

Usually ships in 3-6 days

0

43

Exmark 116-5296-03

CLUTCH LINK

$18.99

$

In Stock, only 3 left!

0

44

Exmark 1-633630

GROMMET

$5.99

$

In Stock, Qty 16

0

45

Exmark 116-5295

CLUTCH STANDOFF

$37.99

$

In Stock, only 1 left!

0

46

Exmark 1-633545

SPACER

$2.99

$

In Stock, Qty 20+

0

47

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

48

Exmark 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

49

Exmark 3235-22

SCREW-HH, LOCK

$2.99

$

In Stock, only 2 left!

0

50

Exmark 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

51

Exmark 119-4866

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$3.99

$

Usually ships in 3-6 days

0

52

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

53

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

54

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

55

Exmark 103-4718

SHEAVE,5K 4"PD POLY-V

$141.99

$

Usually ships in 3-6 days

0

56

Exmark 1-543610

WASHER-CLUTCH

$6.49

$

In Stock, Qty 16

0

57

Exmark 1-807014

KEY-WOODRUFF

$3.49

$

Usually ships in 3-6 days

0

58

Exmark 109-2901

BELT,KUBOTA 902 ALT

$112.99

$

In Stock, only 4 left!

0

59

Exmark 33014-00

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

60

Exmark 99-8343

GASKET-MUFFLER

$16.99

$

In Stock, Qty 7

0
