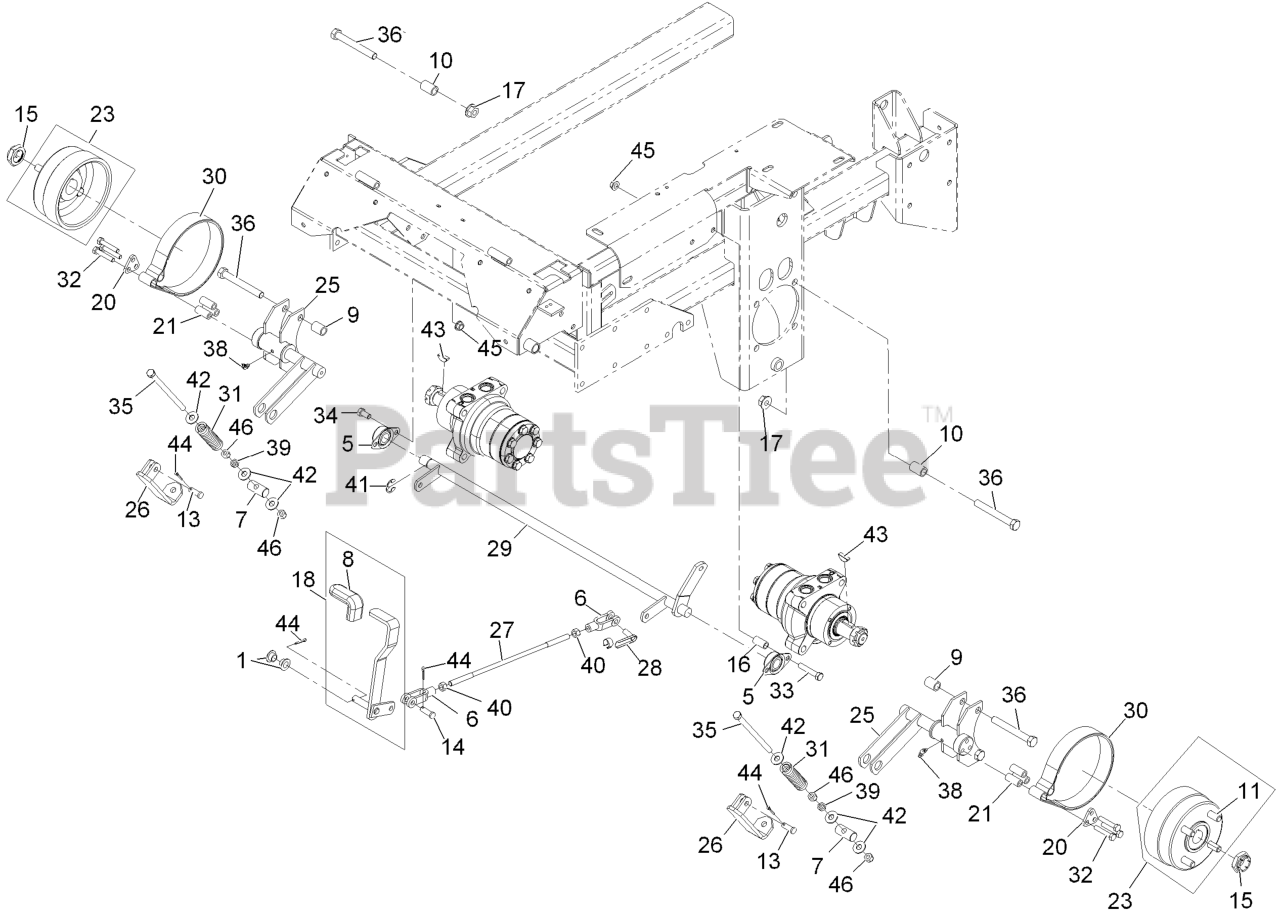

LZDS902K605 - Exmark 60" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel (SN: 312000000 - 312999999) (2012) Park Brake Assembly Parts Diagram

60" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel

Park Brake Assembly Parts Diagram

  • Title
1

Exmark 1-513140

BEARING-CONTROL

$6.49

$

In Stock, Qty 8

0

5

Exmark 1-633102

BEARING-FLANGE, SIDE

$18.99

$

In Stock, only 2 left!

0

6

Exmark 1-633131

YOKE-LINKAGE, BRAKE

$15.99

$

In Stock, Qty 8

0

7

Exmark 1-633144

PIN-TRUNION

$13.99

$

Usually ships in 3-6 days

0

8

Exmark 1-633268

GRIP-LEVER

$14.99

$

In Stock, Qty 5

0

9

Exmark 1-633380

SPACER-WHEEL, SHORT

$8.49

$

Usually ships in 3-6 days

0

10

Exmark 1-633382

SPACER-WHEEL, LONG

$9.49

$

Usually ships in 3-6 days

0

11

Exmark 1-633926

STUD-WHEEL

$4.99

$

In Stock, Qty 11

0

13

Exmark 1-808284

PIN-CLEVIS

$3.49

$

In Stock, only 4 left!

0

14

Exmark 1-808285

PIN-CLEVIS

$3.49

$

In Stock, Qty 5

0

15

Exmark 116-1399

LOCKNUT

$14.99

$

In Stock, only 1 left!

0

16

Exmark 103-0051

SPACER-RETAINER, BRAKE

$6.49

$

Usually ships in 3-6 days

0

17

Exmark 32128-49

NUT-HHF

$1.99

$

In Stock, Qty 20+

0

18

Exmark 103-0197

BRAKE LEVER AND GRIP ASM

$82.99

$

Usually ships in 3-6 days

0

20

Exmark 103-0374

RETAINER-BAND, BRAKE

$5.49

$

In Stock, only 4 left!

0

21

$1.99

$

In Stock, Qty 6

0

23

Exmark 116-2291

HUB W/STUDS ASM

$174.99

$

Usually ships in 3-6 days

0

25

Exmark 103-0844-03

BRAKE-NARROW

$202.99

$

Usually ships in 3-6 days

0

26

Exmark 103-1117-03

LINKAGE-BRAKE, LOWER

$41.99

$

Usually ships in 3-6 days

0

27

Exmark 103-1708

ROD-BRAKE

$7.99

$

Usually ships in 3-6 days

0

28

Exmark 103-2399

PIN-SPRING, CLEVIS

$6.49

$

In Stock, Qty 14

0

29

Exmark 103-5243-03

SHAFT-BRAKE

$133.99

$

Usually ships in 3-6 days

0

30

Exmark 103-9761

BAND,BRAKE

$44.99

$

In Stock, only 4 left!

0

31

Exmark 109-2230

SPRING-COMPRESSION

$8.99

$

Usually ships in 3-6 days

0

32

Exmark 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

33

Exmark 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

34

Exmark 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

35

Exmark 323-58

BOLT-TAP, HH

$5.49

$

Usually ships in 3-6 days

0

36

Exmark 325-17

SCREW-HH

$5.99

$

In Stock, Qty 5

0

38

Exmark 1481

FITTING-GREASE

$6.49

$

Usually ships in 3-6 days

0

39

Exmark 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

40

Exmark 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

41

$1.99

$

In Stock, Qty 14

0

42

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

43

Exmark 3257-42

KEY-WOODRUFF

$6.49

$

In Stock, Qty 12

0

44

Exmark 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

45

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

46

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 16
