LZDS902K605 - Exmark 60" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel (SN: 312000000 - 312999999) (2012) Cooling Assembly Parts Diagram

60" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel

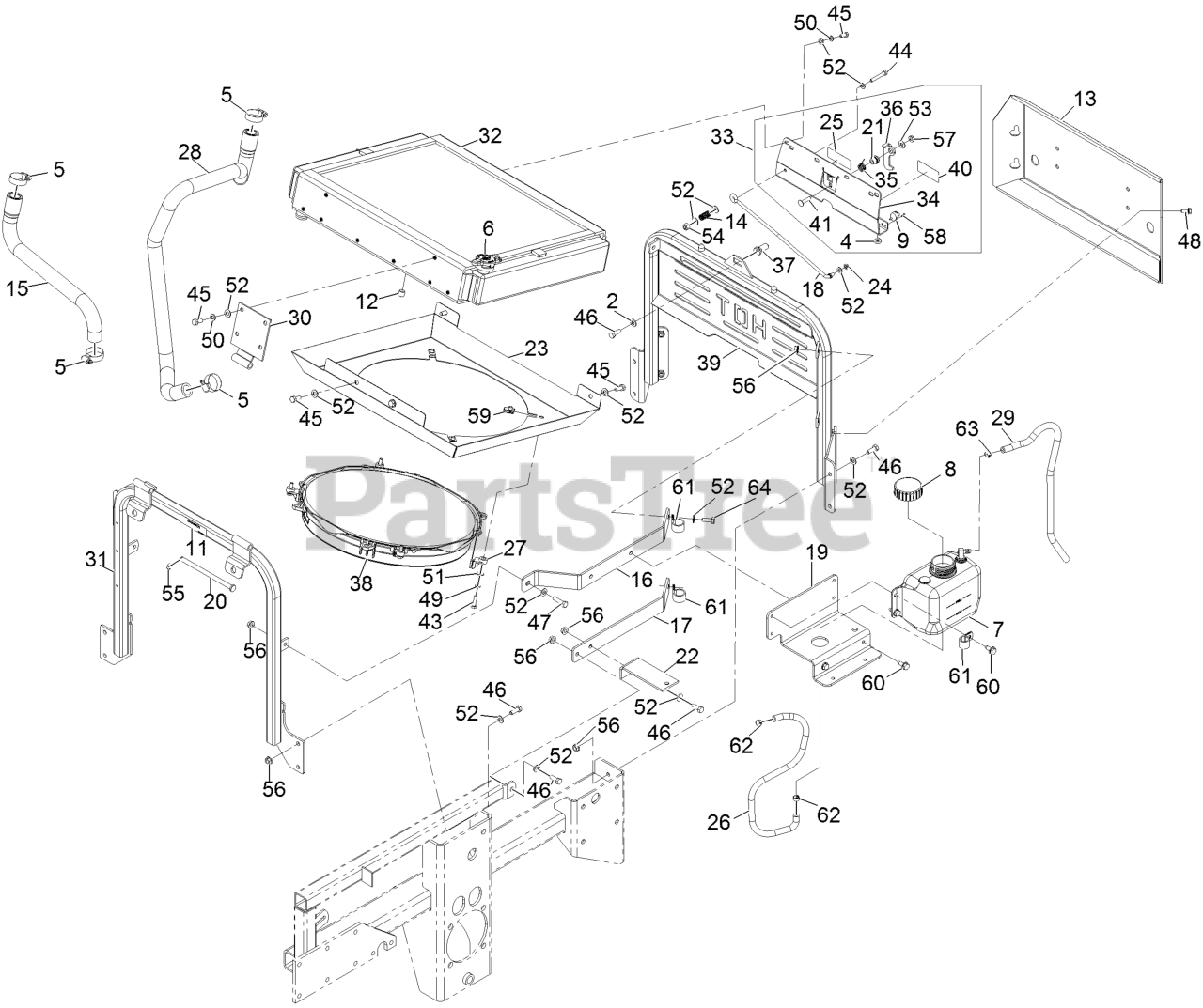

Cooling Assembly Parts Diagram

  • Title

2

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 3 left!

0

4

Exmark 1-513658

BUMPER

$6.49

$

In Stock, Qty 9

0

5

Exmark 1-633989

2412-34
(Superseded to 2412-34)

$2.49

$

In Stock, only 3 left!

0

6

Exmark 1-643161

CAP-RADIATOR

$84.99

$

In Stock, only 3 left!

0

7

Exmark 116-7124

TANK, OVERFLOW W/CAP

$167.99

$

In Stock, Qty 7

0

8

Exmark 116-7211

87-7050
(Superseded to 87-7050)

$23.99

$

In Stock, only 3 left!

0

9

Exmark 1-643189

249-40
(Superseded to 249-40)

$11.99

$

Usually ships in 3-6 days

0

11

Exmark 98-5954

DECAL-COVER, MISSING

$9.49

$

In Stock, Qty 7

0

12

Exmark 99-8551

PLUG-PIPE

$5.49

$

Usually ships in 3-6 days

0

13

Exmark 103-1479-03

WLD,REAR BUMPER

$229.99

$

Usually ships in 3-6 days

0

14

Exmark 103-6643

SPRING,LOCK PIN

$2.99

$

Usually ships in 3-6 days

0

15

Exmark 103-7532

HOSE,RADIATOR UPPER D902(

$124.99

$

Usually ships in 3-6 days

0

16

Exmark 103-7558-03

RIB, TOP

$346.99

$

Usually ships in 3-6 days

0

17

Exmark 103-7579-03

RIB, BOTTOM

$332.99

$

Usually ships in 3-6 days

0

18

Exmark 103-9207

ROD,PROP

$41.99

$

Usually ships in 3-6 days

0

19

Exmark 116-4822-03

BRACKET, BOTTLE-HYDRO TAN

$86.99

$

Usually ships in 3-6 days

0

20

Exmark 103-9218

PIN

$19.99

$

In Stock, only 1 left!

0

21

Exmark 107-0075

BUSHING-LATCH, SEAT

$5.49

$

Usually ships in 3-6 days

0

22

Exmark 109-0089-03

BRACKET, HYDRAULIC TANK

$36.99

$

Usually ships in 3-6 days

0

23

Exmark 116-6296-03

FAN SHROUD,16

$

$

Not available

24

Exmark 109-0917

32112-11
(Superseded to 32112-11)

$1.49

$

In Stock, only 3 left!

0

25

Exmark 109-2263

DECAL,RADIATOR ASSEMBLY

$

$

Not available

26

Exmark 116-7204

HOSE, .313 I.D.X 25.0 REI

$19.99

$

Usually ships in 3-6 days

0

27

Exmark 109-2950

MOUNT,FAN

$5.99

$

Usually ships in 3-6 days

0

28

Exmark 109-3142

HOSE,RADIATOR LOWER D902

$154.99

$

Usually ships in 3-6 days

0

29

Exmark 116-7245

HOSE, .500 I.D. X 30" EPD

$27.99

$

Usually ships in 3-6 days

0

30

Exmark 109-3179-03

WLD,HINGE PLATE

$47.99

$

Usually ships in 3-6 days

0

31

Exmark 109-2804

ASM, RAD. MOUNT W/ DECALS

$638.99

$

Usually ships in 3-6 days

0

32

Exmark 116-5303

RADIATOR ASM, AL D902

$1791.99

$

Usually ships in 3-6 days

0

33

Exmark 109-8427

ASM-LATCH PLATE

$227.99

$

Usually ships in 3-6 days

0

34

Exmark 109-8539

ASM,LATCH PLATE S.O.

$217.99

$

Usually ships in 3-6 days

0

35

Exmark 109-8430

SPRING,LATCH

$8.49

$

Usually ships in 3-6 days

0

36

Exmark 109-8431

HOOK,LATCH

$17.99

$

Usually ships in 3-6 days

0

37

Exmark 109-8432

PIN,LATCH

$30.99

$

Usually ships in 3-6 days

0

38

Exmark 116-6274

FAN- ELECTRIC

$747.99

$

Usually ships in 3-6 days

0

39

Exmark 109-8546

Wld, Rear Radiator Mount

$

$

Currently unavailable

40

Exmark 110-3842

DECAL-ANTIFREEZE

$9.49

$

Usually ships in 3-6 days

0

41

Exmark 112-6950

SCREW-CARR

$0.99

$

In Stock, Qty 10

0

43

Exmark 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

44

Exmark 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

45

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

46

Exmark 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

47

Exmark 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

48

Exmark 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

49

Exmark 325-33

SCREW-HH

$14.99

$

In Stock, only 4 left!

0

50

Exmark 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

51

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

52

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

53

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

54

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

55

Exmark 32120-18

E-RING

$1.49

$

In Stock, Qty 20+

0

56

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

57

Exmark 32128-25

NUT-HF

$3.49

$

In Stock, Qty 12

0

58

Exmark 923786

3269-24
(Superseded to 3269-24)

$2.99

$

In Stock, Qty 12

0

59

Exmark 10706-9

Nut-Retainer-Panel 1/4-20

$2.99

$

In Stock, Qty 20+

0

60

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

61

Exmark 1-633396

CLIP-LOOM

$5.49

$

Usually ships in 3-6 days

0

62

Exmark 92-2379

CLAMP-HOSE

$0.99

$

Usually ships in 3-6 days

0

63

Exmark 110-6242

CLAMP-HOSE

$5.49

$

Usually ships in 3-6 days

0

64

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0
