LZD25KD725 - Exmark 72" Lazer Z XS Diesel Zero-Turn Mower, Kubota Diesel (SN: 920000 - 999999) (2011) Front Frame Assembly Parts Diagram

72" Lazer Z XS Diesel Zero-Turn Mower, Kubota Diesel

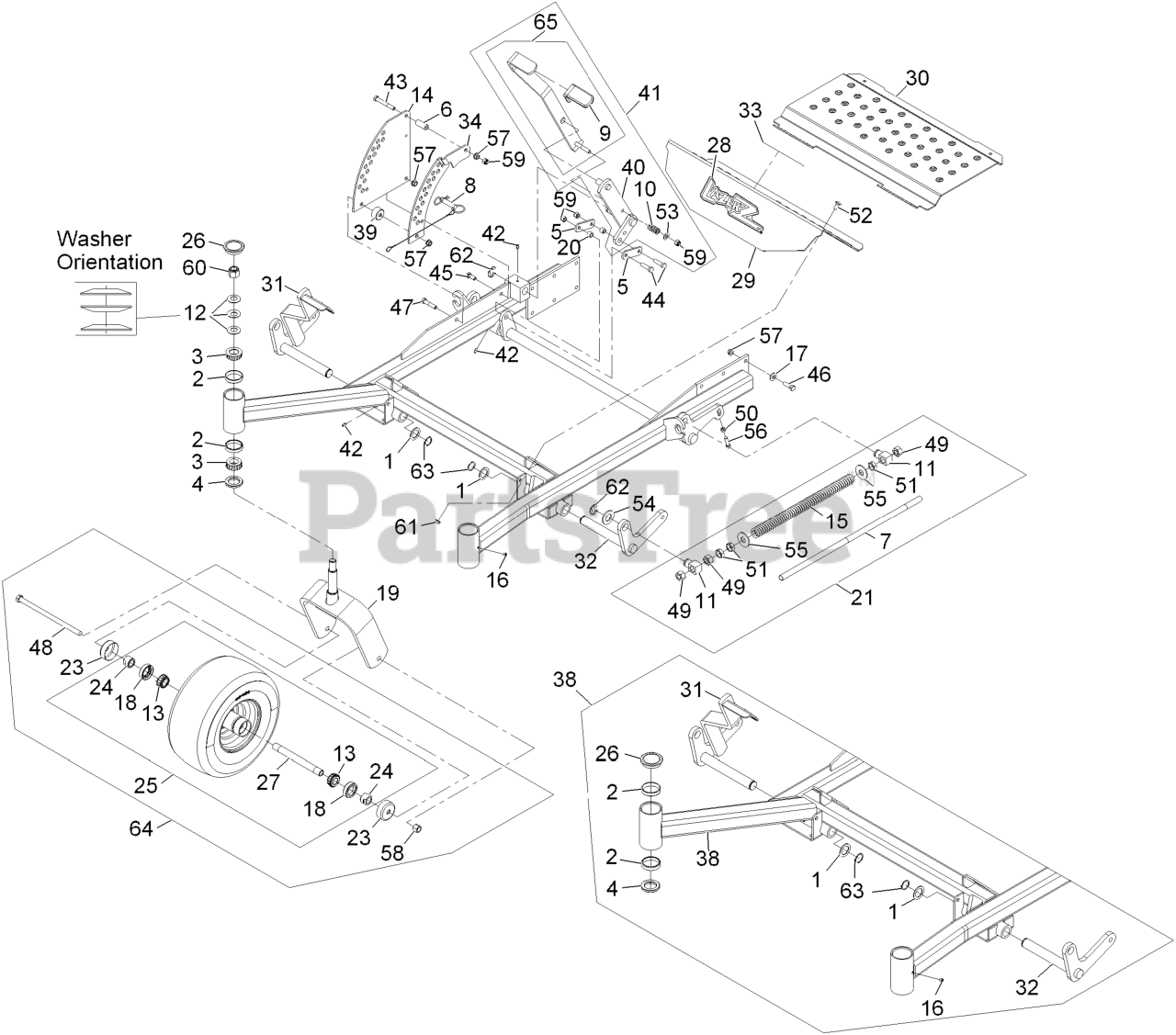

Front Frame Assembly Parts Diagram

  • Title

1

Exmark 1-523157

WASHER-SPACER

$1.49

$

In Stock, Qty 20+

0

2

Exmark 1-543508

CUP-BEARING

$7.99

$

In Stock, Qty 16

0

3

Exmark 1-543509

Cone-Bearing Tapered Roller

$13.99

$

In Stock, Qty 20+

0

4

Exmark 1-543511

SEAL-GREASE

$12.99

$

In Stock, Qty 20+

0

5

Exmark 1-633068

ARM-LIFT, DECK

$11.99

$

Usually ships in 3-6 days

0

6

Exmark 1-633082

BUSHING-LEVER, LIFT

$11.99

$

Usually ships in 3-6 days

0

7

Exmark 1-633096

ROD-LIFT, DECK

$23.99

$

In Stock, only 3 left!

0

8

Exmark 1-633097

PIN-HITCH (W/LANYARD)

$23.99

$

In Stock, only 2 left!

0

9

Exmark 1-633295

GRIP-LEVER, LIFT

$7.99

$

In Stock, only 3 left!

0

10

Exmark 1-633325

SPRING-COMPRESSION

$5.49

$

Usually ships in 3-6 days

0

11

Exmark 1-633441

SWIVEL-DECK MOUNT, REAR

$27.99

$

Usually ships in 3-6 days

0

12

Exmark 1-633508

WASHER-BELLVILLE

$3.49

$

In Stock, Qty 20+

0

13

Exmark 1-633585

BEARING-CONE, TAPERED ROLLER

$21.99

$

In Stock, Qty 12

0

14

Exmark 1-633889-01

PLATE-LIFT, DECK

$

$

Not available

15

Exmark 109-4963

SPRING,DECK SUPPORT

$53.99

$

Usually ships in 3-6 days

0

16

Exmark 1-811010

PLUG

$5.49

$

In Stock, Qty 11

0

17

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

18

Exmark 103-0063

SEAL-CASTER

$8.99

$

In Stock, Qty 6

0

19

Exmark 103-1474-01

116-8888
(Superseded to 116-8888)

$185.99

$

In Stock, Qty 8

0

20

Exmark 103-1918

BUSHING

$7.99

$

In Stock, Qty 6

0

21

Exmark 109-4995

ASM,FRONT FRAME SPRING

$110.99

$

Usually ships in 3-6 days

0

23

Exmark 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 20+

0

24

Exmark 103-3051

SPACER-NUT

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$9.49

$

In Stock, Qty 12

0

25

Exmark 109-9125

109-9127
(Superseded to 109-9127)

$341.99

$

In Stock, Qty 7

0

26

Exmark 103-4882

CAP-GREASE

$7.99

$

In Stock, Qty 20+

0

27

Exmark 103-5156

126-5361
(Superseded to 126-5361)

$19.99

$

In Stock, only 2 left!

0

28

Exmark 103-3113

DECAL,LAZER MODEL

$11.99

$

In Stock, Qty 10

0

29

Exmark 109-1903

ASM, FLOORPAN FRONT W/DEC

$274.99

$

Usually ships in 3-6 days

0

30

Exmark 103-8276-01

Floorpan, Lift Out

$

$

Currently unavailable

31

Exmark 103-9740-01

WLD,FRONT LIFT W/LEVER

$218.99

$

Usually ships in 3-6 days

0

32

Exmark 103-9741-01

WLD,FRONT LIFT SHAFT-LH

$132.99

$

Usually ships in 3-6 days

0

33

Exmark 116-3303

DECAL-SLOPE

$17.99

$

Usually ships in 3-6 days

0

34

Exmark 108-7759-01

109-1900
(Superseded to 109-1900)

$

$

Not available

38

Exmark 109-2074

ASM, FRONT FRAME 72"
(Superseded to 116-9499)

$3492.99

$

Usually ships in 3-6 days

0

39

Exmark 109-3193

Spacer

$

$

Currently unavailable

40

Exmark 109-4487

WLD,ARM DECK LIFT

$162.99

$

Usually ships in 3-6 days

0

41

Exmark 109-4488

ASM,Deck Lift Handle

$65.99

$

In Stock, only 1 left!

0

42

Exmark 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

43

Exmark 323-13

SCREW-HH

$3.99

$

In Stock, Qty 5

0

44

Exmark 323-29

SCREW-HH

$0.99

$

In Stock, Qty 7

0

45

Exmark 323-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

46

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

47

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

48

Exmark 325-39

SCREW-HH

$18.99

$

In Stock, Qty 18

0

49

Exmark 3217-11

NUT-HEX

$3.49

$

In Stock, Qty 15

0

50

Exmark 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

51

Exmark 3218-6

NUT-JAM

$6.49

$

In Stock, Qty 10

0

52

Exmark 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

53

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

54

Exmark 3256-29

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

0

55

Exmark 3256-7

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

56

Exmark 3274-18

SCREW-HSH

$9.49

$

In Stock, Qty 7

0

57

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

58

Exmark 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

59

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 16

0

60

Exmark 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 10

0

61

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

62

Exmark 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 7

0

63

Exmark 32151-29

RING-RETAINING

$5.49

$

In Stock, Qty 16

0

64

Exmark 109-9127

WHEEL & TIRE ASM

$341.99

$

In Stock, Qty 7

0

65

Exmark 103-2084

LIFT LEVER/GRIP ASM

$77.99

$

Usually ships in 3-6 days

0
