LZD25KD605 - Exmark 60" Lazer Z XS Diesel Zero-Turn Mower, Kubota Diesel (SN: 920000 - 999999) (2011) Spindle Assembly Parts Diagram

60" Lazer Z XS Diesel Zero-Turn Mower, Kubota Diesel

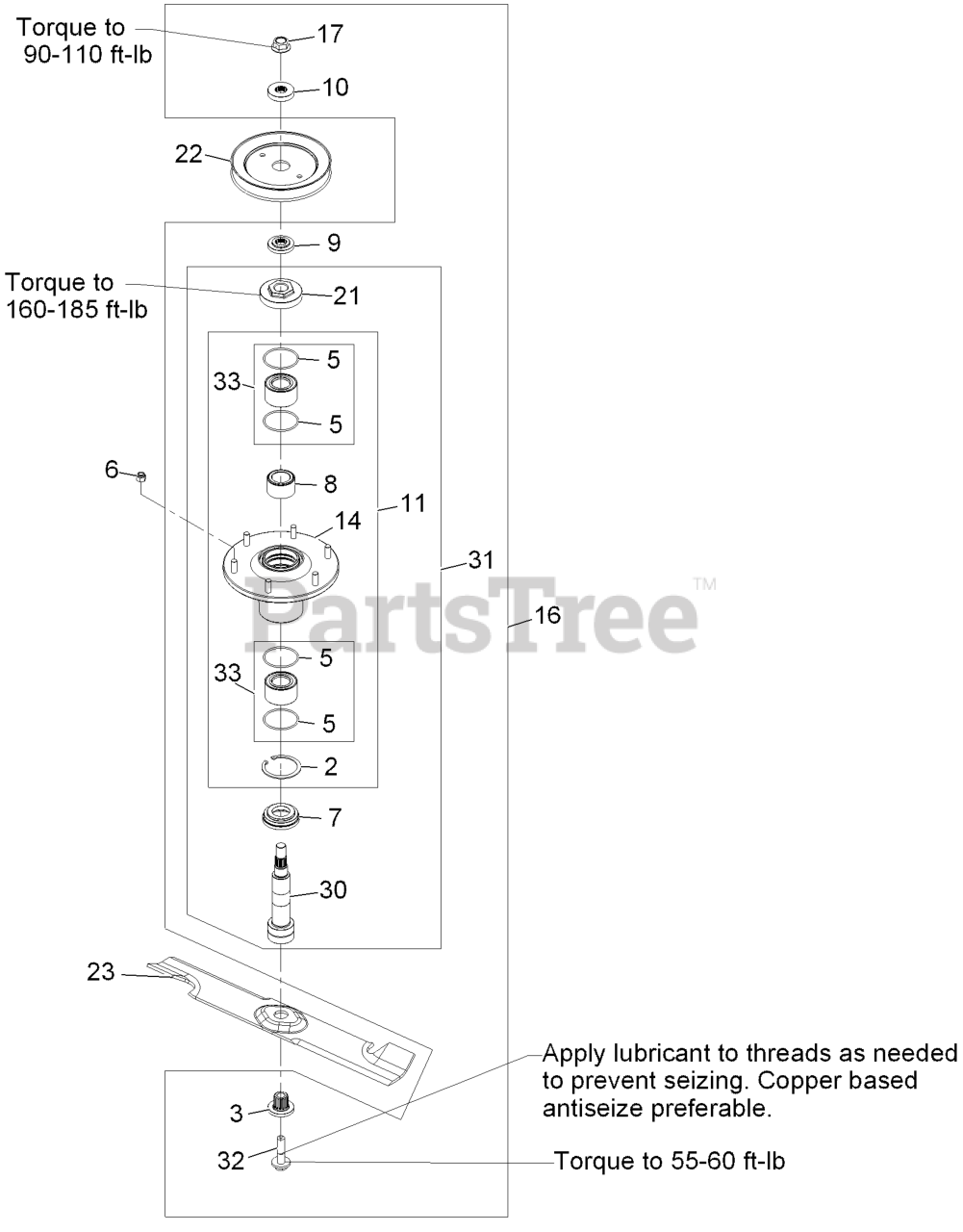

Spindle Assembly Parts Diagram

  • Title

2

Exmark 92-5581

RING-RETAINING

$3.49

$

In Stock, only 1 left!

0

3

Exmark 103-3037

BUSHING,SPLINED

$22.99

$

In Stock, Qty 20+

0

5

Exmark 103-5895

O-RING

$1.49

$

In Stock, Qty 20+

0

6

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

7

Exmark 103-9504

GUARD,BOTTOM

$11.99

$

In Stock, only 2 left!

0

8

Exmark 103-9506

SPACER,BEARING

$10.99

$

In Stock, Qty 8

0

9

Exmark 103-9522

SPACER,SPLINED STEPPED

$6.99

$

In Stock, Qty 9

0

10

Exmark 103-9523

SPACER,SPLINED

$8.49

$

In Stock, Qty 20+

0

11

Exmark 103-9539

ASM,CUTTER HOUSING

$374.99

$

In Stock, only 2 left!

0

14

Exmark 109-0764

ASM,HOUSING W/STUDS

$95.99

$

In Stock, only 1 left!

0

16

Exmark 109-2102

ASM, CUTTER HSG W/MNT HRD

$747.99

$

Usually ships in 3-6 days

0

17

Exmark 109-7033

NUT-FLANGE, CENTERLOCK

$2.99

$

In Stock, Qty 20+

0

21

Exmark 109-0916

NUT, SPINDLE 7/8-14

$24.99

$

In Stock, only 1 left!

0

22

Exmark 109-1023

SHEAVE, BLADE DRIVE 6.13

$41.99

$

In Stock, Qty 5

0

23

Exmark 109-6463

Blade,High Lift Notched 20.75

$

$

Currently unavailable

23

Exmark 103-8240

103-8240-S
(Superseded to 103-8240-S)

$38.99

$

In Stock, only 3 left!

0

23

Exmark 103-8396

116-5499-S
(Superseded to 116-5499-S)

$43.99

$

In Stock, only 3 left!

0

23

Exmark 103-8239

109-6469-S
(Superseded to 109-6469-S)

$39.99

$

In Stock, Qty 5

0

23

Exmark 109-5396

109-5396-S
(Superseded to 109-5396-S)

Note: Requires installation of mulch kit for proper mulching. See your Exmark dealer for details.

$45.99

$

In Stock, Qty 5

0

23

Exmark 103-9629

116-5499-S
(Superseded to 116-5499-S)

$43.99

$

In Stock, only 3 left!

0

30

Exmark 109-6881

SPINDLE,DOUBLE SPLINE

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.

$129.99

$

In Stock, Qty 9

0

31

Exmark 109-6917

ASM,SPINDLE HOUSING

$521.99

$

In Stock, Qty 15

0

32

Exmark 109-9220

SCREW,SEMS 1/2-20 X 2.19

$8.49

$

In Stock, Qty 20+

0

33

Exmark 109-2064

ASM, BEARING W/ORINGS

$116.99

$

In Stock, only 4 left!

0
