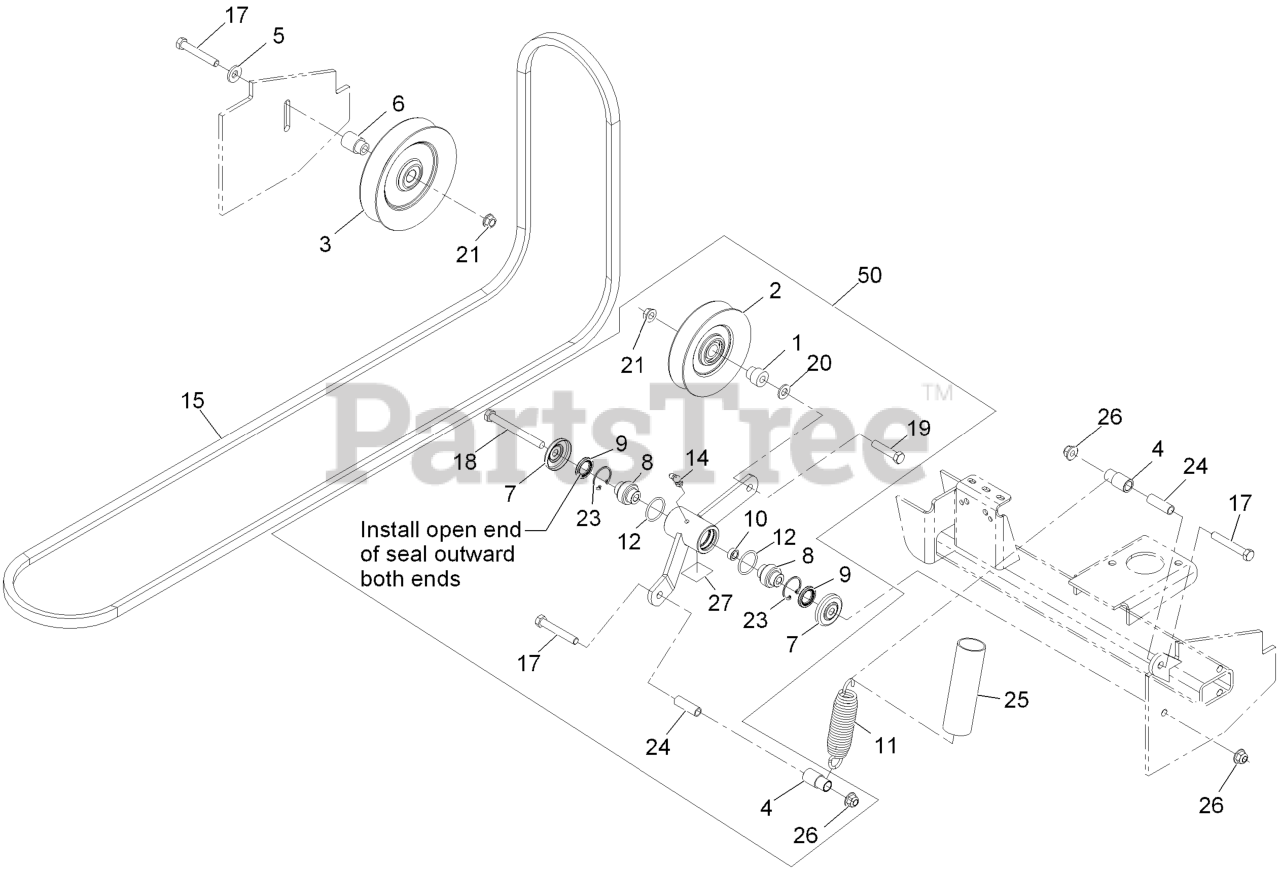

LZD25KD605 - Exmark 60" Lazer Z XS Diesel Zero-Turn Mower, Kubota Diesel (SN: 920000 - 999999) (2011) Engine Deck Assembly Parts Diagram

60" Lazer Z XS Diesel Zero-Turn Mower, Kubota Diesel

Engine Deck Assembly Parts Diagram

  • Title

1

Exmark 1-603496

BUSHING-IDLER

$7.49

$

In Stock, Qty 20+

0

2

Exmark 1-603805

PULLEY-IDLER

$54.99

$

In Stock, Qty 12

0

3

Exmark 1-633166

PULLEY-IDLER

$56.99

$

In Stock, only 3 left!

0

4

Exmark 109-8866

BUSHING,PLASTIC

$21.99

$

Usually ships in 3-6 days

0

5

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

6

Exmark 103-2627

BUSHING-IDLER

$3.49

$

In Stock, Qty 20+

0

7

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 9

0

8

Exmark 103-3504

BEARING-SPHERICAL

$25.99

$

In Stock, Qty 20+

0

9

Exmark 103-3506

SEAL-LIP, SINGLE

$5.49

$

In Stock, Qty 19

0

10

Exmark 103-5677

SPACER

$2.99

$

In Stock, only 3 left!

0

11

Exmark 116-0608

116-6316
(Superseded to 116-6316)

$23.99

$

In Stock, only 3 left!

0

12

Exmark 106-7159

O-RING

$1.49

$

In Stock, Qty 20+

0

14

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

15

Exmark 109-4199

BELT,B 123.2
(Superseded to 109-4199-SL)

$112.99

$

In Stock, only 1 left!

0

17

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

18

Exmark 323-42

SCREW-HH

$8.49

$

Usually ships in 3-6 days

0

19

Exmark 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

20

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

21

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

23

Exmark 32120-10

RING-SNAP

$1.49

$

In Stock, Qty 20+

0

24

Exmark 109-8754

SPACER

$16.99

$

Usually ships in 3-6 days

0

25

Exmark 116-0932

DAMPENER,SPRING

$5.49

$

Usually ships in 3-6 days

0

26

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

27

Exmark 103-5858

DECAL,GREASE

$5.99

$

Usually ships in 3-6 days

0

50

Exmark 116-5042

IDLER ARM W/SHEAVE ASM

$298.99

$

Usually ships in 3-6 days

0
